2423520000 - M8 PCB Connector with IP67 Protection, 10mm Height, 3 Poles (Pack of 25)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

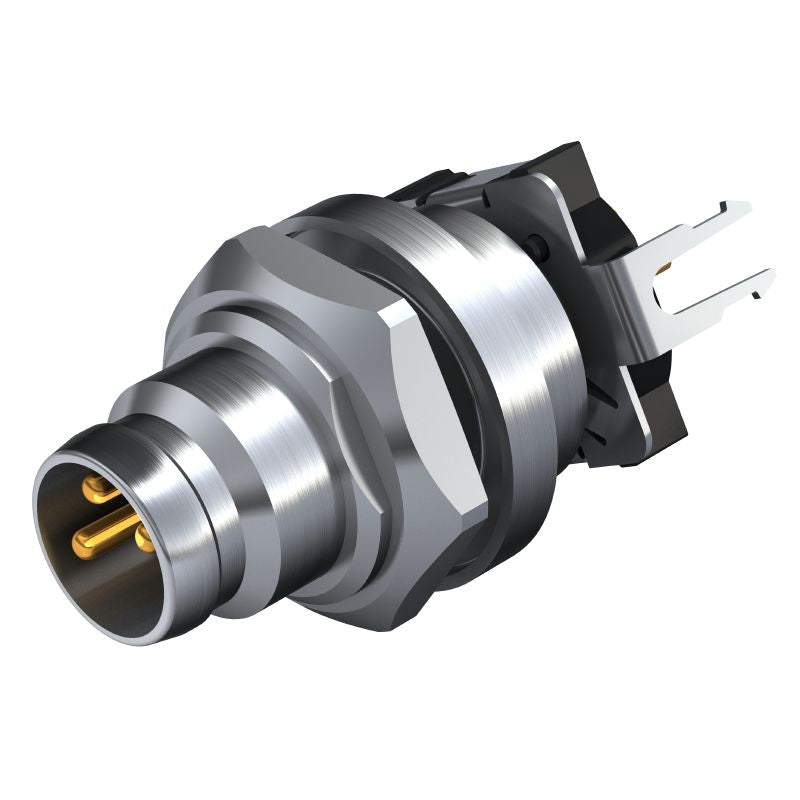

Introducing the SAIE-M8S-3S-H10TL PCB plug-in connector, engineered for heavy-duty performance This connector is equipped with three poles and features a robust M8 mounting thread It operates efficiently at a nominal voltage of 60V and supports a current rating of 4A With a compact installation height of just 10mm, it utilizes a rear panel mounting method for convenient setup Constructed with a nickel-plated casing, it provides excellent resistance to rust and corrosion.

Additionally, it boasts an IP67 rating, which protects against both dust and water ingress This durable connector operates within a temperature range of -30 to 80 degrees Celsius, making it suitable for various environments Furthermore, it meets RoHS standards, ensuring that it is made from lead-free materials for eco-friendly compliance Perfect for reliable connectivity in demanding applications.

Features and Benefits:

•Nickel-plated housing for corrosion resistance.

•Designed for robust applications with a protection degree of IP67.

•Capable of withstand temperature ranges from -30 to 80 °C.

•Rated for up to 100 plugging cycles.

Specifications:
