2423750000 - M12 5-Pole PCB Connector, IP67, Gold-Plated Contacts (Pack of 10)

Description:

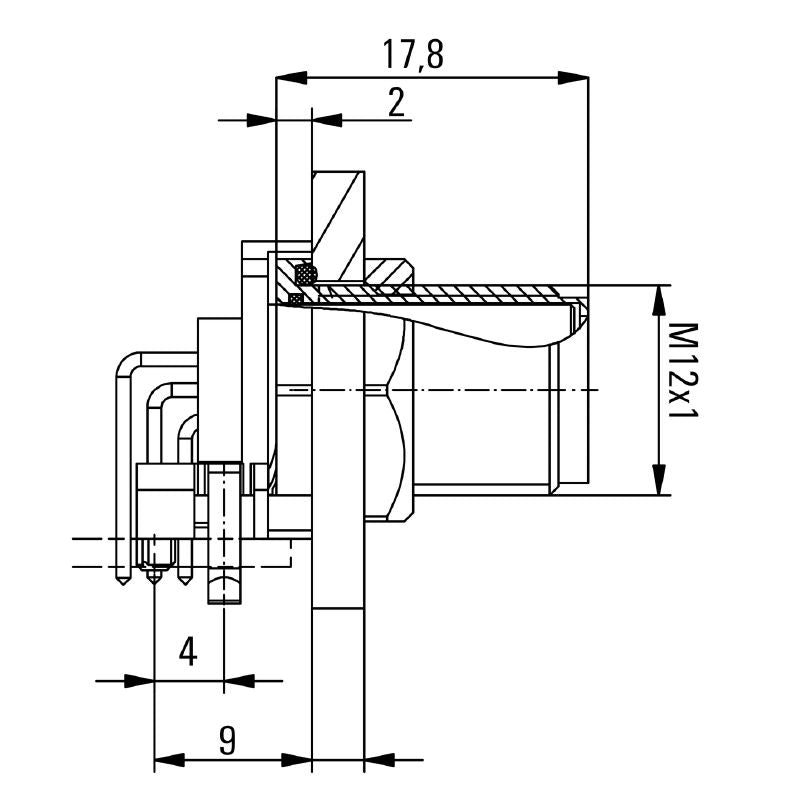

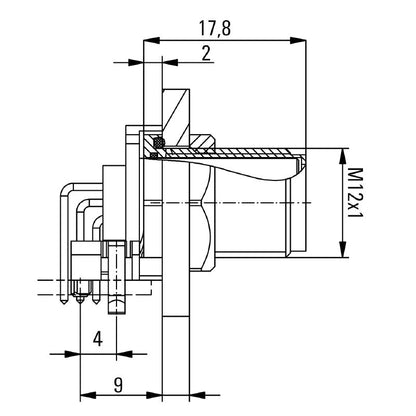

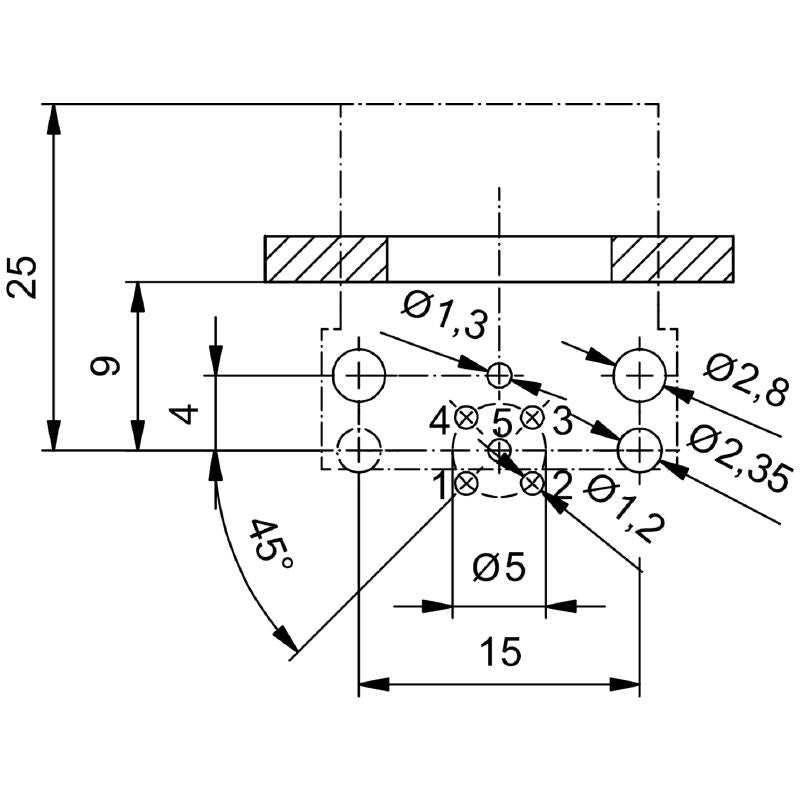

Introducing a premium PCB plug-in connector designed with a robust M12 configuration This connector features a five-pole setup and a secure M12 mounting thread, ensuring reliable performance in various applications It meets RoHS standards and is recognized for compliance with exemption criteria Equipped with a shield connection, this connector is ideal for rear panel installation It operates efficiently at a nominal voltage of 60V, with a rated voltage of 250V for its 4-pole variants and 60V specifically for the 5-pole model.

The nominal and rated current is set at 4A, making it suitable for diverse electrical settings Built to withstand temperatures from -30°C to 80°C, this connector boasts an IP67 rating, providing excellent resistance against dust and water ingress The contact surfaces feature gold plating for enhanced connectivity, while the housing is crafted from nickel-plated copper-zinc alloy for added durability.

Features and Benefits:

•A-coded housing with M12 pin.

•Rear panel mounting type.

•Contains a shield connection.

•Constructed from nickel-plated CuZn.

•Able to withstand ≥ 100 plugging cycles.
