2424150000 - IP67 M8 8-Pole PCB Connector with Gold Contacts (Pack of 25)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

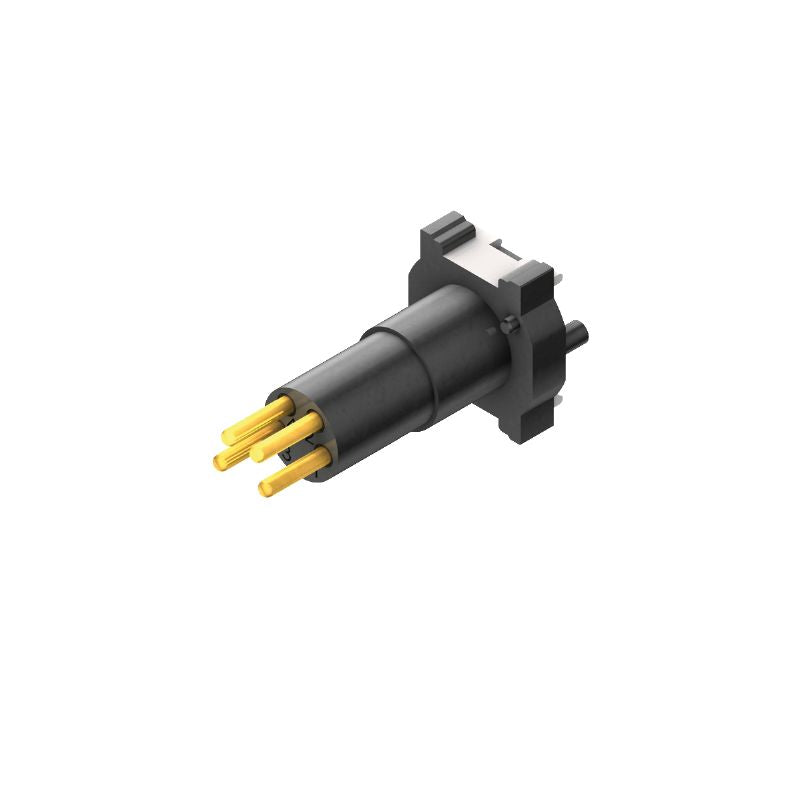

Introducing the SAID-M8S-8-THR PCB plug-in connector, featuring an integrated M8 plug design This connector supports up to 8 poles and is unshielded for versatility It operates effectively at a nominal voltage of 30 V, with a maximum of 60 V for configurations with 3 poles Capable of handling nominal currents up to 15 A and rated currents of 4 A, it's built for reliable performance The operational temperature range spans from -25 to 95 degrees Celsius, making it suitable for various environments.

With an IP67 protection rating, this connector resists both dust and water The gold contact surface ensures excellent conductivity, while the housing is crafted from durable LCP material.

Features and Benefits:

•Compliant with RoHS exemption.

•Designed for rugged environments with IP67 protection.

•Able to withstand at least 100 plugging cycles.

•Constructed from durable materials including Cu-alloy and nickel-plated CuZn.

Specifications:
