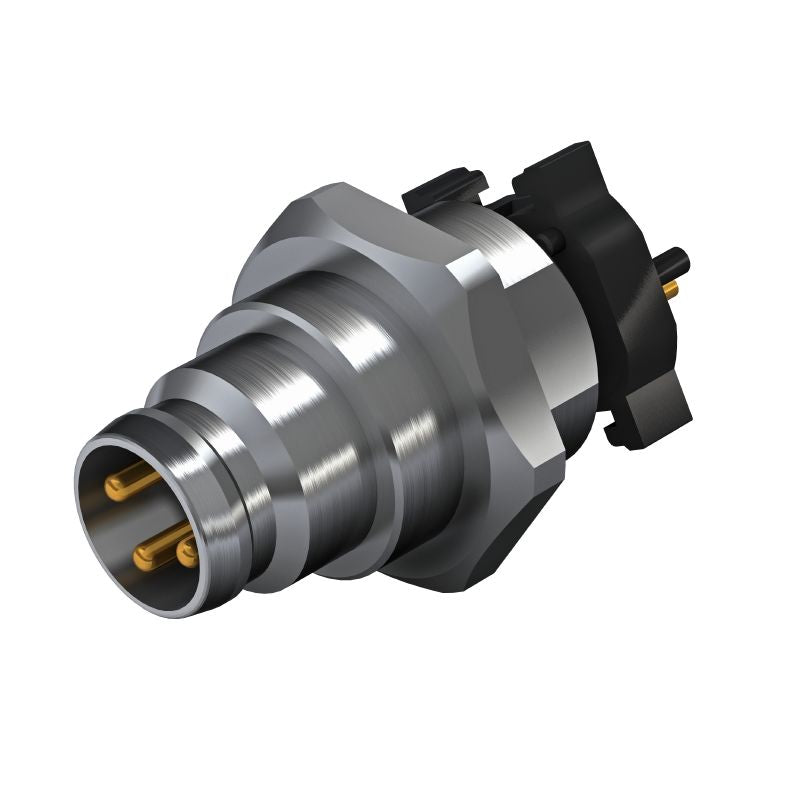

2422470000 - M8 Connector with 4 Poles, IP67, RoHS, 30V (Pack of 25)

Description:

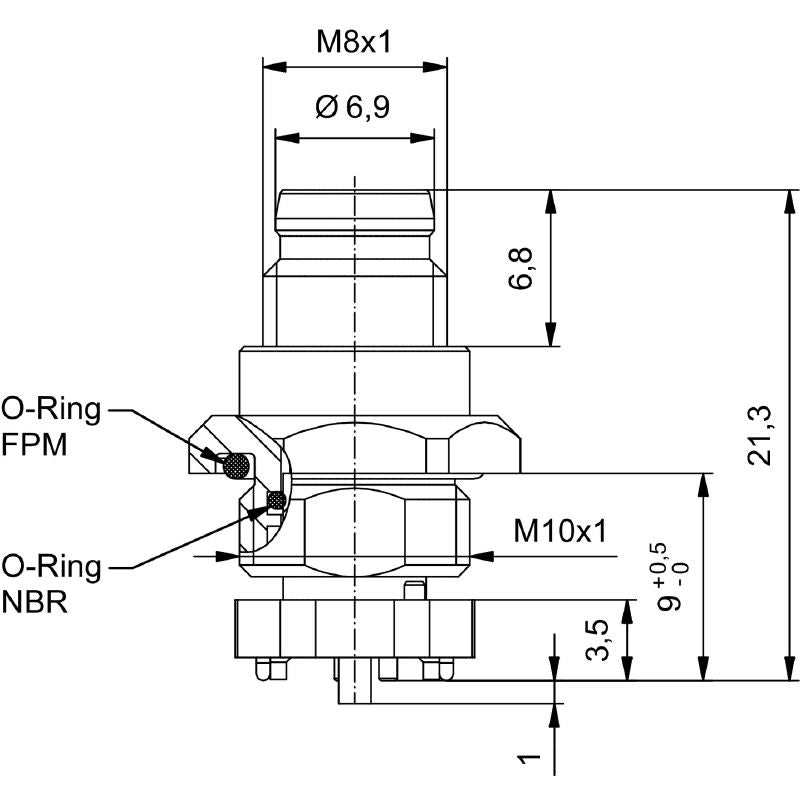

Introducing the SAIE-M8S-4-F9SMT connector, a sophisticated device designed with built-in M8 plugs and a mounting thread measuring M10 This compact connector weighs just 792 grams, making it lightweight and easy to handle It is RoHS-compliant and meets REACH SVHC requirements regarding Lead 7439-92-1 Engineered for front mounting, it lacks a shield connection and operates at a nominal voltage of 30 V, with a maximum rating of 60 V for three poles, alongside lower values for configurations with four, five, and eight poles.

Both the nominal and rated current stand at 4 A This connector can withstand temperatures ranging from -30 to 80 °C and boasts an IP67 protection rating, ensuring reliability in various environments The contact surfaces are finished in gold, while the main body is crafted from nickel-plated brass, offering durability and excellent conductivity.

Features and Benefits:

•RoHS compliant.

•Front mounting type.

•IP67 protection degree.

•Gold contact surface.

•Lightweight at 7.92 grams.

•Designed with a 30 V nominal voltage.

•Rated current of 4 A.

Specifications:
