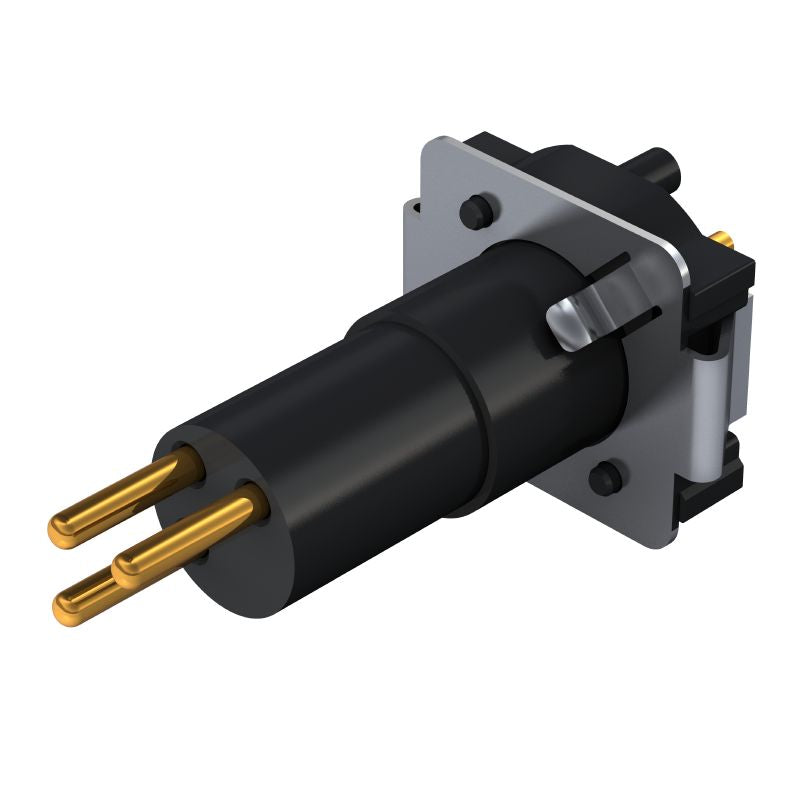

2423850000 - RoHS Certified M8 3-Pole Plug Connector for Reliable Connections (Pack of 25)

SKU: SKU: 2423850000 Download PDF

Select a Variant:

2423850000 - RoHS Certified M8 3-Pole Plug Connector for Reliable Connections (Pack of 25)

SET THE QTY:

Now $97.50 Web pricing policy

~~BEFORE $0.00~~ Now $97.50 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing a reliable built-in plug tailored for M8 connections with a 3-pole setup This connector meets RoHS standards, ensuring it adheres to stringent environmental regulations, including restrictions on lead and relevant SCIP compliance It is identifiable via a specific order number and GTIN, making it easy to track within its ordering system Ideal for electrical applications that require adherence to precise voltage and current specifications, this plug offers both functionality and assurance of safety.

Features and Benefits:

•IP67 protection degree.

•Au (Gold) contact surface.

•Rated for a nominal voltage of 60V.

•Nominal current rating of 4A.

•Can withstand temperatures from -25 to 95 °C.

•Plugging cycles rated to a minimum of 100.

Specifications:

Coding	M8 = none
Housings	M8 pin
Number of poles	3
Shield connection	No
Rated voltage	60 V (3-pole) / 30 V (4-,5- and 8-pole)
Rated current	4 A (3-, 4- and 5-pole) / 1.5 A (8-pole)
Temperature range	-25…95 °C
Tightening torque	M8: 0.5 Nm
Pollution severity	3 (2 within the sealed area)
Contact material	Cu-alloy
Lock nut material	Nickel-plated CuZn
Material of the flange-mounted housing	Nickel-plated CuZn
UL 94 flammability rating	V-0
Weight	1.76 g
