2422300000 - M12 PCB Connector, 4 Poles, RoHS Compliant, -30 to 80 °C (Pack of 25)

2422300000 - M12 PCB Connector, 4 Poles, RoHS Compliant, -30 to 80 °C (Pack of 25)

SKU: 2422300000   Download PDF

Select a Variant:
  • 2422300000 - M12 PCB Connector, 4 Poles, RoHS Compliant, -30 to 80 °C (Pack of 25)
Qty:
Now $180.32   Web pricing policy
BEFORE   $0.00 Now $180.32 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

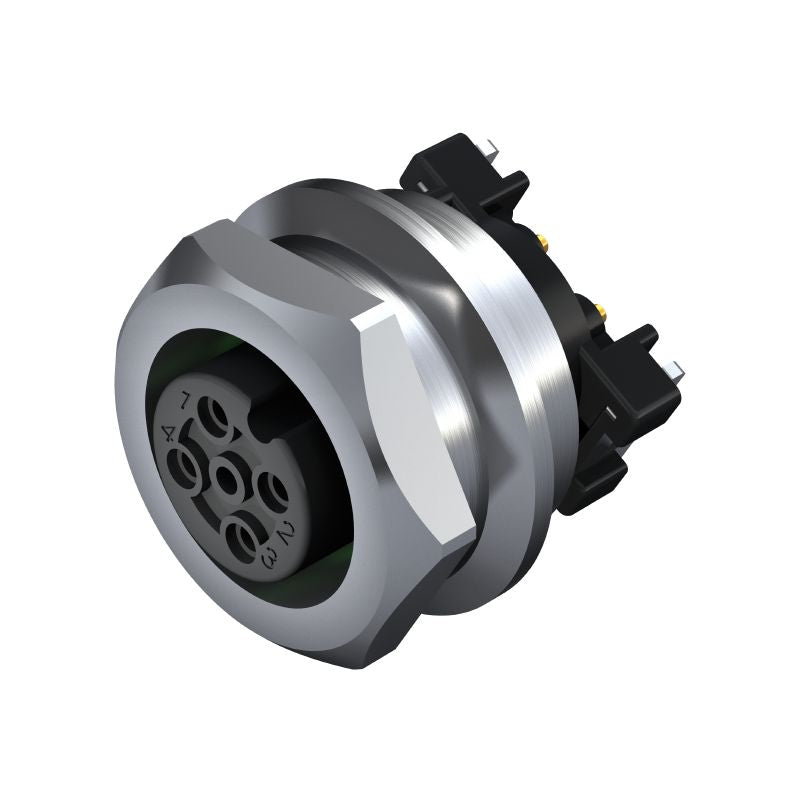

Introducing the SAIE-M12B-4-9SMT PCB connector, meticulously designed with integrated M12 plugs and a mounting thread measuring M14 This connector features four poles and its length is tailored according to cable specifications It complies with RoHS standards and weighs just 904 grams Built for resilience, it boasts a nickel-plated housing surface and operates efficiently across a temperature range of -30 to 80 °C, making it ideal for diverse environments.

Features and Benefits:

    •A-coded coding.

    •IP67 protection degree.

    •SMD solder connection for PCB mounting.

    •Plugging cycles of at least 100.

    •Insulation resistance of 100 MΩ.

    •Nickel-plated housing material.

    •Gold contact surface.

Specifications:

 Mounting thread M14
 Number of poles 4
 Nominal voltage 250 V
 Rated voltage 250 V (4-pole) / 60 V (5-pole) / 30 V (8-pole)
 Nominal current 4 A
 Rated current 4 A (4- and 5-pole) / 2 A (8-pole)
 Temperature range -30…80 °C
 Contact material Cu-alloy
 Contact surface Au (Gold)
 Protection degree IP67
 Insulation resistance 100 MΩ
 Plugging cycles ≥ 100
 Mounting torque max 1.2 Nm
 Connection thread M12
