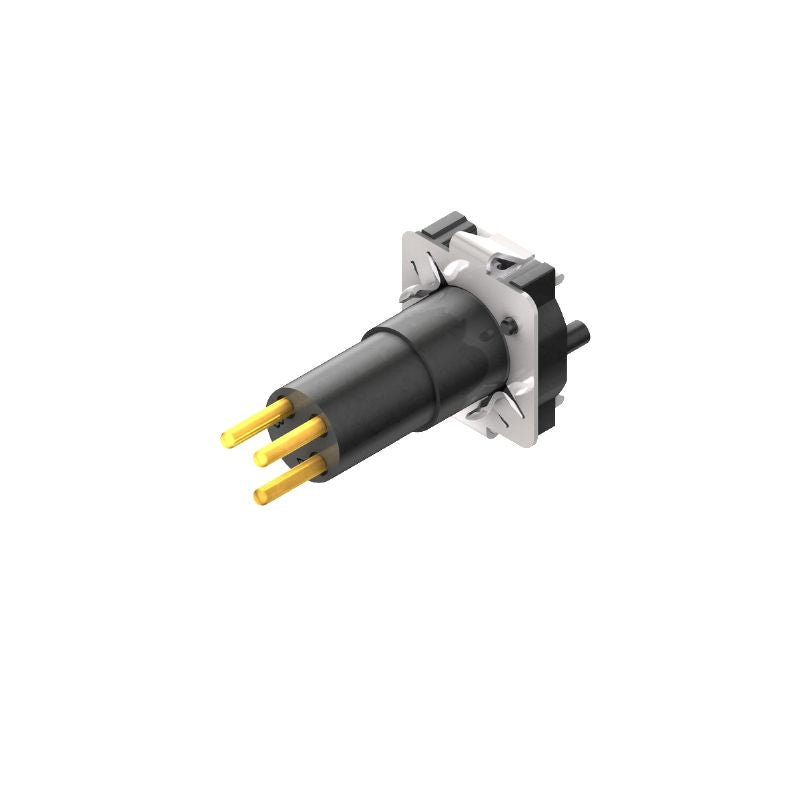

2421930000 - IP67 Rated M8 Pin Connector with 4 Poles and Gold Contacts (Pack of 25)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the M8 pin connector, engineered for reliability and ease of use This connector features integrated plugs and comes with a mounting thread for secure installation Accommodating 4 poles, it operates at a nominal voltage of 30 V, with a rated voltage reaching 60 V for 3-pole connections, while 4-, 5-, and 8-pole setups are geared for 30 V It supports a maximum current of 4 A, ensuring efficient performance in a variety of applications.

Designed to withstand challenging conditions, this connector functions effectively within a temperature range of -25°C to 95°C and boasts an IP67 protection rating, making it ideal for diverse environmental situations The contact surfaces are crafted from durable gold, and the housing is made from high-quality LCP material, ensuring longevity and reliability.

Features and Benefits:

•Shield connection available.

•Plugging cycles rated for at least 100.

•Pollution severity rated at 3 within the sealed area.

•UL 94 flammability rating of V-0.

Specifications:
