2422020000 - 5-Pole RoHS Compliant PCB Connector, IP67 Rated (Pack of 25)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

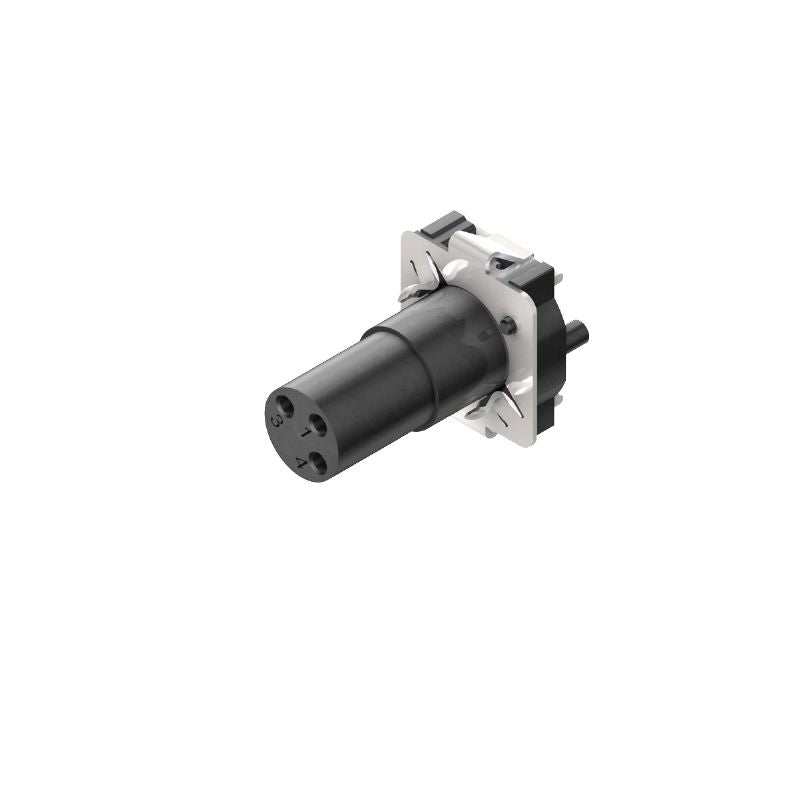

Introducing the SAID-M8B-5S-SMT built-in plug connector, expertly crafted for PCB applications with a 5-pole design This connector meets RoHS compliance and is environmentally friendly, fulfilling the necessary exemption criteria It operates at a nominal voltage of 30V, while the voltage ratings shift to 60V for 3-pole configurations, and remains at 30V for 4, 5, and 8-pole setups With a nominal current capacity of 4A, this connector is engineered to withstand temperatures between -25 to 95 degrees Celsius, achieving an impressive IP67 protection rating for reliable performance.

Features and Benefits:

•M8 socket housing design.

•B-coded connection for secure connectivity.

•Compatible with a protection degree of IP67.

•Low pollution severity rating of 3.

•High durability with ≥ 100 plugging cycles.

•Made with gold contact surfaces for superior conductivity.

Specifications:
