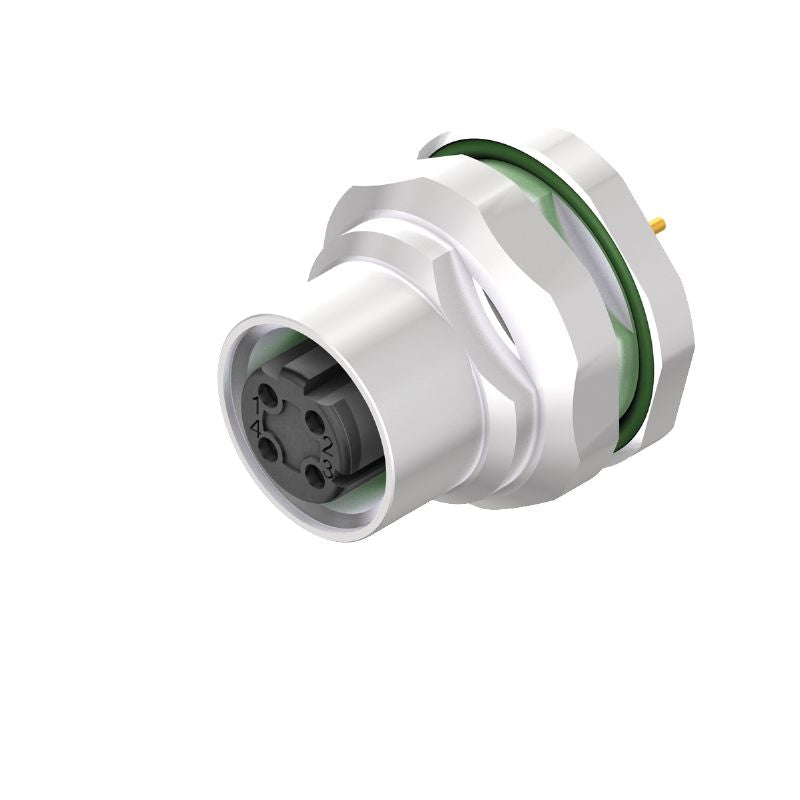

2422430000 - Compact D-coded M12 Socket, 5.5mm Height, IP67 Protection (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

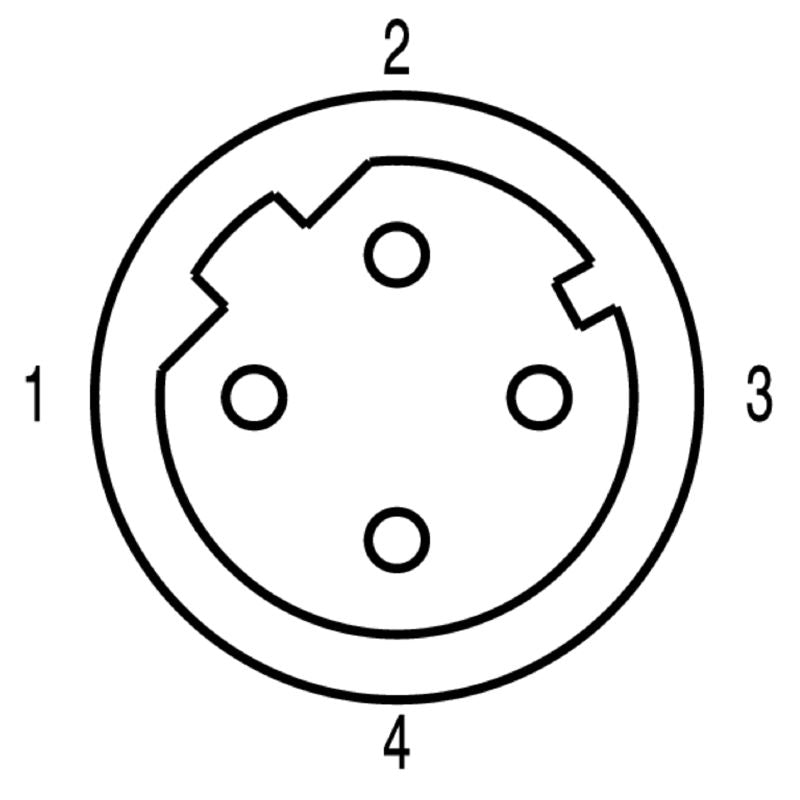

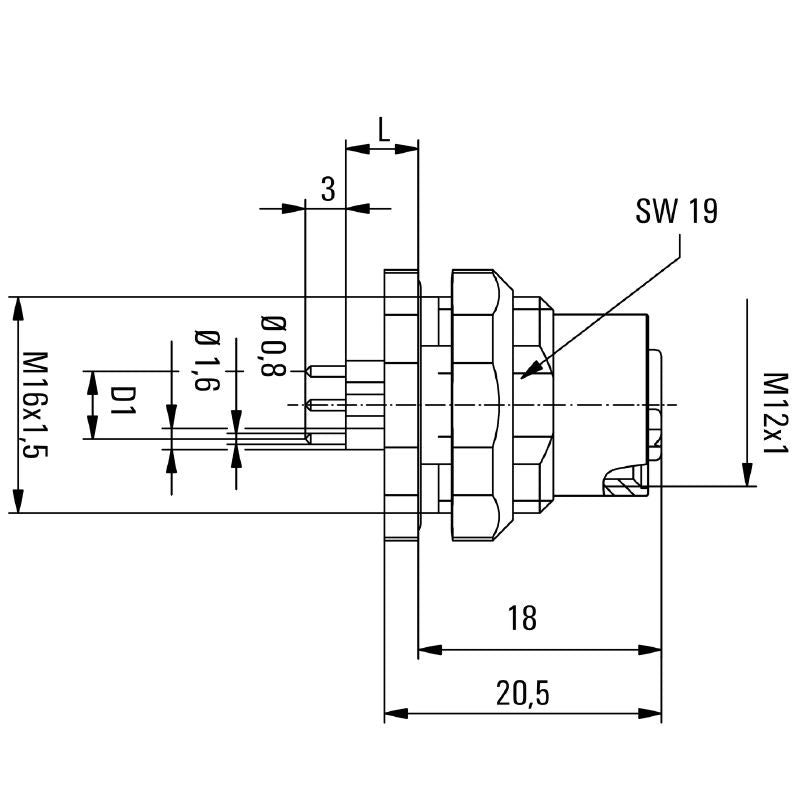

This D-coded M12 socket, equipped with integrated plugs, features a mounting thread of M 16 x 15 and is designed with 4 poles for versatile connectivity Its compact footprint, measuring just 55 mm in height, adheres to RoHS regulations, ensuring safety and environmental compliance Engineered to perform reliably in various conditions, it boasts an IP67 protection rating and operates effectively in temperatures ranging from -30 to 80 °C.

With a nominal voltage and current of 250 V and 4 A, respectively, this socket provides impressive insulation resistance at 100 MΩ The gold-plated contact area ensures enhanced connectivity, while the durable CuZn housing is nickel-plated for added corrosion resistance, making it a robust choice for any application.

Features and Benefits:

•D-coded for secure connectivity.

•IP67 protection degree for resistance against dust and water.

•Robust CuZn housing material provides durability.

•Low tightening torque of 0.8 Nm ensures easy installation.

•Compliant with RoHS regulations enhancing environmental safety.

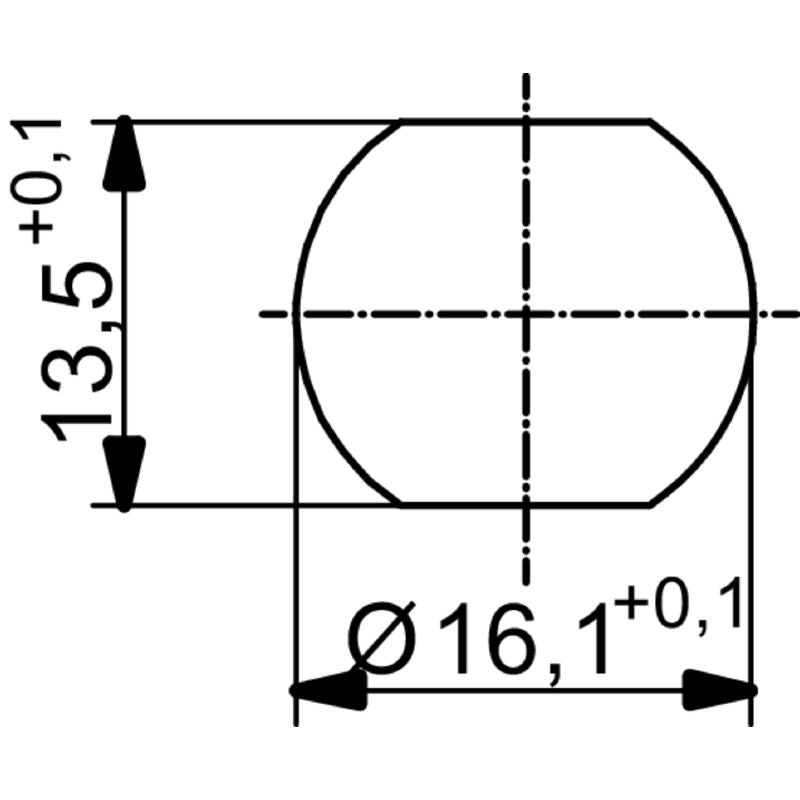

•Designed for rear panel mounting for flexibility in applications.

•High plugging cycle rating of at least 100 for long-term reliability.

Specifications:
