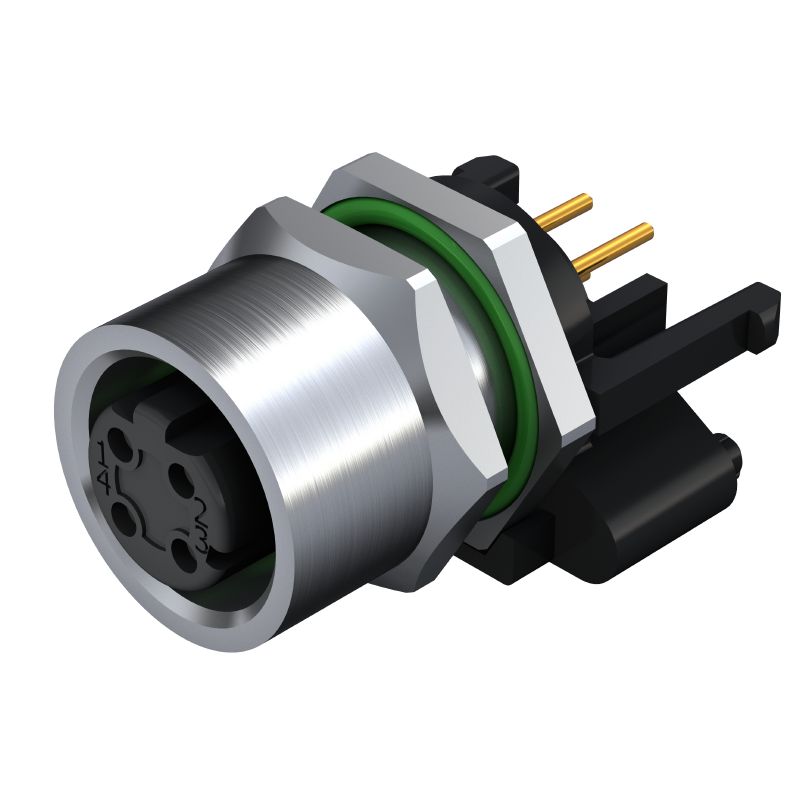

2422790000 - M12 5-Pole Connector, Nickel-Plated, IP67, 10mm High (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Presenting a robust built-in plug type M12, designed for versatility across various applications This connector features a 5-pole setup and boasts a durable nickel-plated housing, ensuring long-lasting use With a compact installation height of just 10 mm, it offers a nominal current capacity of 4 A and operates under a nominal voltage of 60 V Additionally, it is rated for up to 250 V for 4 poles and 60 V for 5 poles.

Capable of withstanding temperatures from -30 to 80 degrees Celsius, this connector also holds an impressive IP67 protection degree, making it ideal for tough environments Compliant with RoHS standards, it meets specific exemptions for added safety and reliability.

Features and Benefits:

•A-coded for efficient coding.

•Rear panel mounting type for easy installation.

•Nickel-plated housing surface for corrosion resistance.

•Shielded connection to minimize interference.

•Durable construction with a gold contact surface.

•High insulation resistance of 100 MΩ.

•Rated for plugging cycles of ≥ 100.

Specifications:
