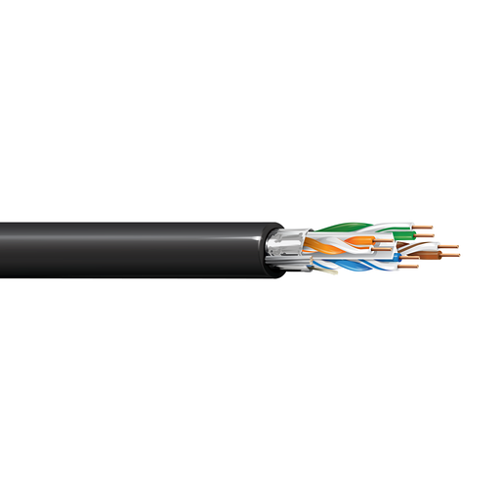

Belden IOP6F 23 AWG 4 Pair Solid Bare Copper Category 6 Premise 300V Horizontal Cable

Description:-

Category 6 Premise Horizontal Cable, Indoor/Outdoor, 4 Pair, 23 AWG Solid Bare Copper Conductors, F/UTP - Foil Shielded, Plenum-CMP/CMX Outdoor, Gel-Free.

Insulation:-

• Material: FEP - Fluorinated Ethylene Propylene

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 26 AWG (7x34) TC - Tinned Copper

Outer Jacket:-

• Material: PVDF - Polyvinylidene Fluoride
• Nom. Diameter: 0.27 in (6.9 mm)
• Overall Cable Diameter (Nominal): 0.27 in (6.9 mm)
• Separator: Center Member (Patented X-Spline)

Standards:-

• UL Voltage Rating: 300 V (CMP), 300 V (CL3P)
• Operating Temperature Range: -40°C To +150°C

Applications:-

• Indoor/Outdoor, Premise Horizontal Cable, Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, Surveillance, PoE++, PoE+, PoE, Noisy Environments, Wet Locations following Product Notes

Specifications:-

• Size (AWG): 23
• No. of Pairs: 4
• Stranding: Solid
• Data Category: Category 6
• Conductor Material: BC - Bare Copper
• Part Number: IOP6F
