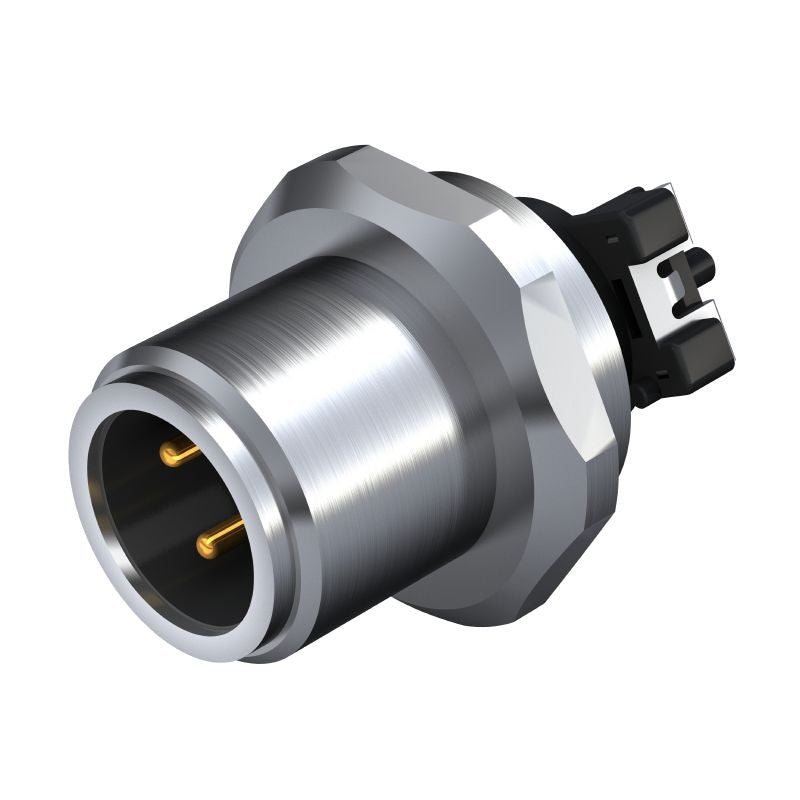

2423200000 - M12 9mm PCB Connector, 4 Poles, IP67 Protection (Pack of 25)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

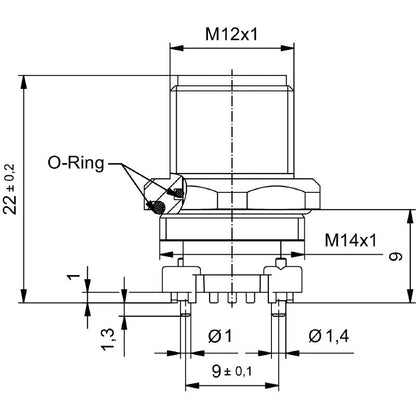

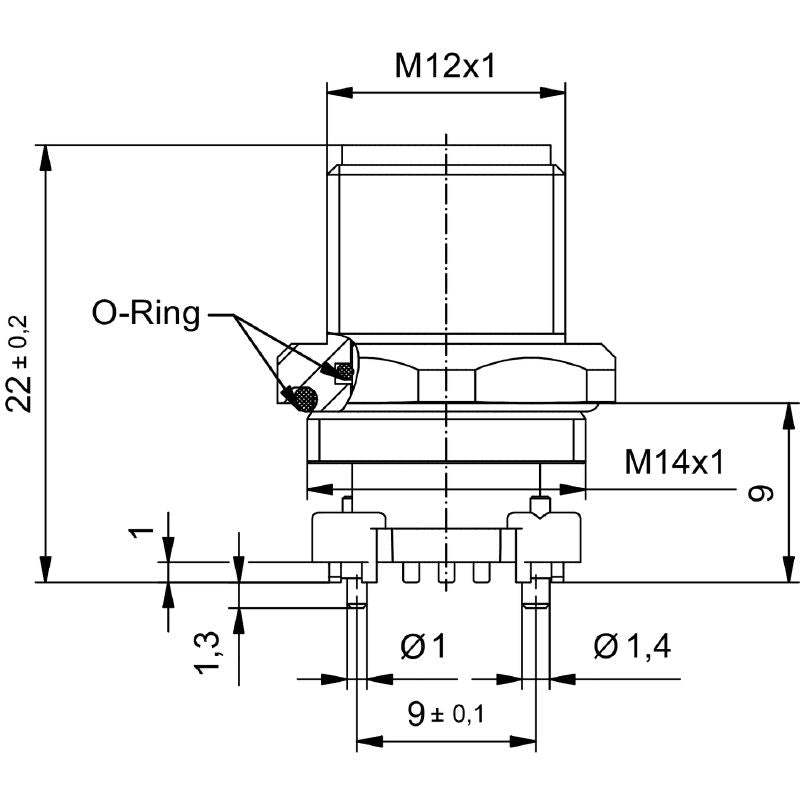

Introducing the SAIE-M12S-4-9/14SMT PCB plug-in connector, crafted for efficiency and reliability This connector features four poles and is equipped with built-in plugs, boasting a mounting thread size of M14 With an installation height of just 9 mm, it is built to withstand demanding conditions The nickel-plated finish adds to its durability and resistance, supporting a nominal voltage of 250 V and a current rating of up to 4 A.

Additionally, it holds an IP67 rating for superior protection, making it suitable for environments with temperatures ranging from -30 °C to 80 °C.

Features and Benefits:

•A-coded for easier identification.

•Nickel-plated housing provides corrosion resistance.

•IP67 protection degree for outdoor applications.

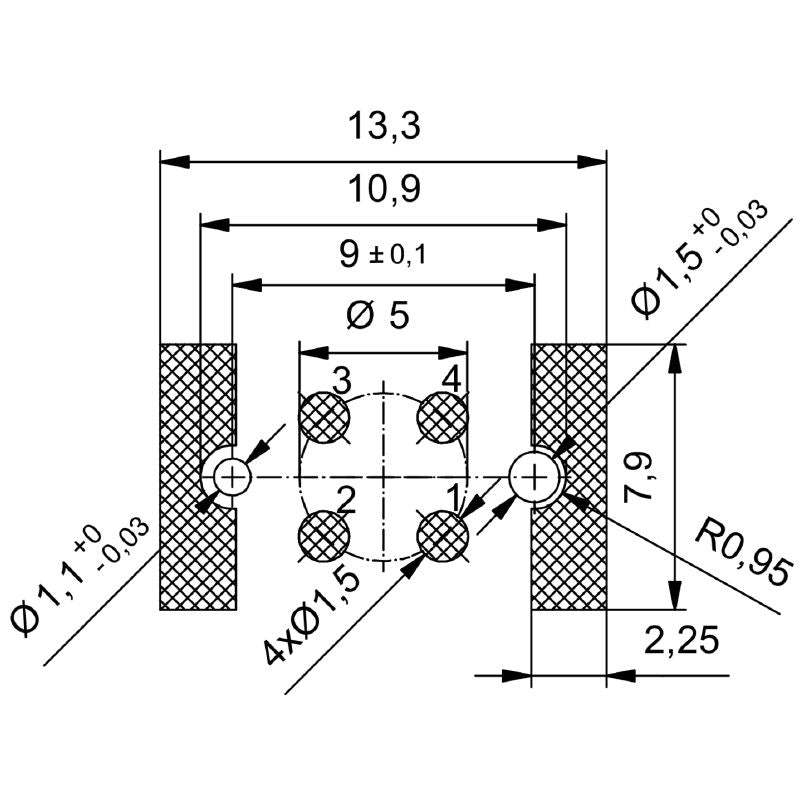

•SMD solder connection for PCB mounting.

•Offers over 100 plugging cycles.

•Insulation resistance of 100 MΩ.

Specifications:
