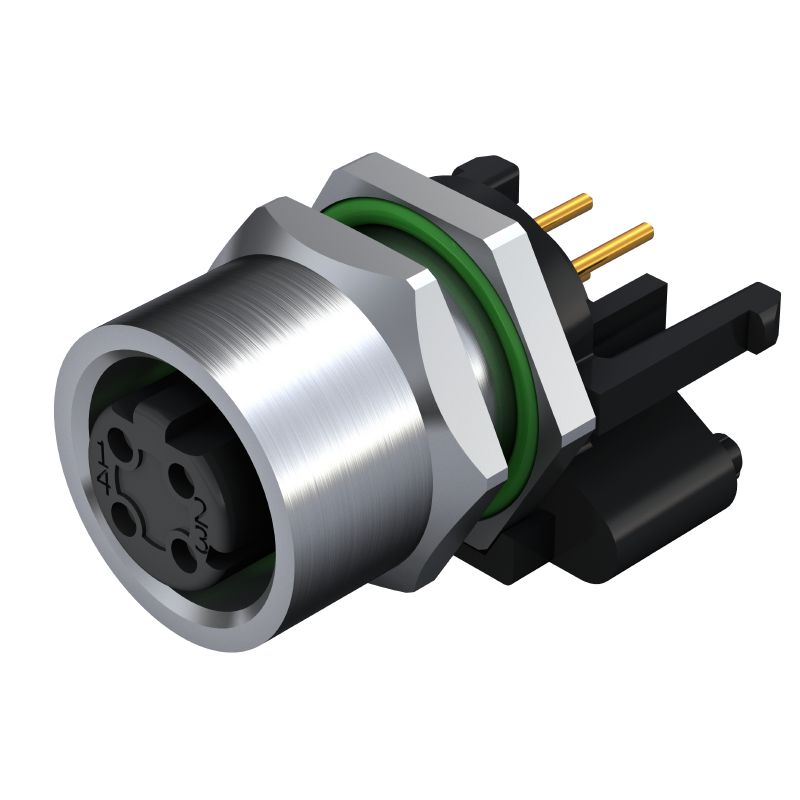

2422730000 - M12 Connector, 4 Poles, IP67, 10mm Height, Nickel-Plated (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Discover the versatility of this M12 socket connector, featuring integrated plugs and an M12 mounting thread designed for easy installation It includes a total of four poles and requires a cable length to connect seamlessly Compliance with RoHS standards guarantees that it meets essential safety regulations Weighing just 174 grams, this connector boasts a robust nickel-plated housing, ensuring reliable durability.

With an installation height of 10 mm, it supports a nominal voltage of 250V and can handle a current of 4A This connector operates effectively within a temperature range of -30 to 80 degrees Celsius and has an IP67 protection rating, making it ideal for demanding environments.

Features and Benefits:

•Nickel-plated housing surface.

•A-coded connector design.

•Rear panel mounting type.

•Insulation resistance of 100 MΩ.

•Gold contact surface provides enhanced conductivity.

•Can operate under pollution severity 3.

Specifications:
