2424000000 - 5-Pole M8 PCB Connector, IP67 Rated, 4A, -25 to 95 °C (Pack of 25)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

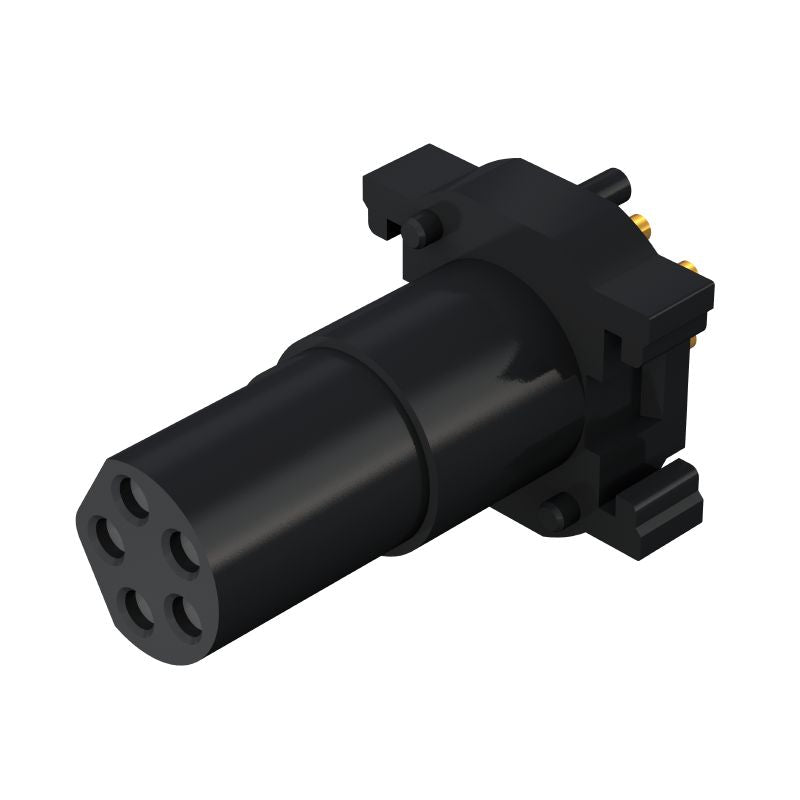

Introducing the SAID-M8B-5-THR, a robust PCB plug-in connector equipped with an integrated M8 socket This connector features five poles and is designed without a shield connection, making it suitable for various applications It operates efficiently at nominal and rated voltages of 30 V and 60 V, respectively, while handling a nominal current of 4 A Engineered to withstand temperature extremes from -25 to 95 °C, it offers reliable performance in diverse environments.

With an impressive IP67 protection rating, this connector is also built to endure at least 100 plugging cycles, ensuring longevity and reliability for your projects.

Features and Benefits:

•Coding B-coded.

•Made from LCP material.

•Contact surface is gold plated.

•Connection thread is M8.

•Tightening torque of 0.5 Nm.

•Pollution severity rating of 3.

•Compliant with RoHS exemption 6c.

Specifications:
