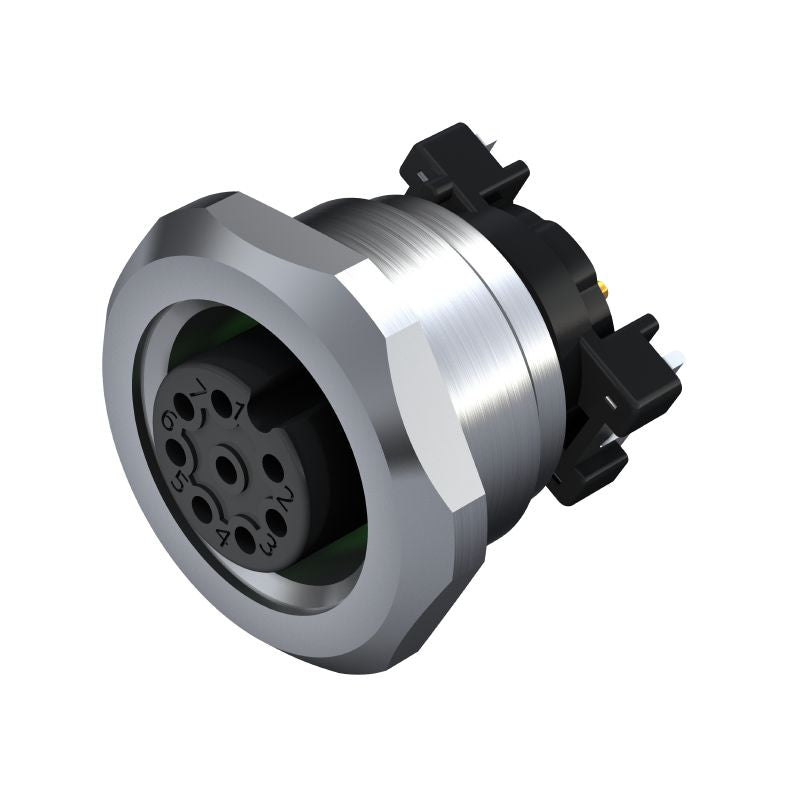

2423080000 - M12 8-Pole PCB Connector, IP67 Rated, 30V, 250V Max (Pack of 25)

2423080000 - M12 8-Pole PCB Connector, IP67 Rated, 30V, 250V Max (Pack of 25)

SKU: SKU: 2423080000   Download PDF

Select a Variant:
  • 2423080000 - M12 8-Pole PCB Connector, IP67 Rated, 30V, 250V Max (Pack of 25)
Qty:
Regular price Now $228.95   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $228.95 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing a versatile PCB plug-in connector equipped with built-in M12 plugs and a mounting thread size of M14, featuring an impressive eight-pole configuration This connector operates at a nominal voltage of 30 V, with varying rated voltages: 250 V for four poles, 60 V for five poles, and maintaining 30 V for all eight poles Crafted from durable nickel-plated CuZn, it weighs around 7814 grams and offers a temperature tolerance between -30 °C to 80 °C.

With an IP67 rating, it excels in water and dust resistance This connector does not come with shield connections, but it's designed for surface-mount device (SMD) solder applications and is durable enough to handle over 100 plugging cycles.

Features and Benefits:

    •Nickel-plated housing surface.

    •Insulation resistance of 100 MΩ.

    •Lock nut made from nickel-plated CuZn.

    •Contact surface is gold plated.

    •Tightening torque of 0.8 Nm for M12 connection.

    •Mounting torque max of 1.2 Nm.

    •Plugging cycles rated at ≥ 100.

Specifications:

 Number of poles 8
 Mounting thread M14
 Nominal current 2 A
 Rated current 4 A (4- and 5-pole) / 2 A (8-pole)
 Housing main material CuZn
 Connection thread M12
 Protection degree IP67
 Temperature range -30…80 °C
 Contact material Cu-alloy
 Plugging cycles ≥ 100
