2423770000 - M12 Plug Connector with M14 Thread and IP67 Protection (Pack of 25)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

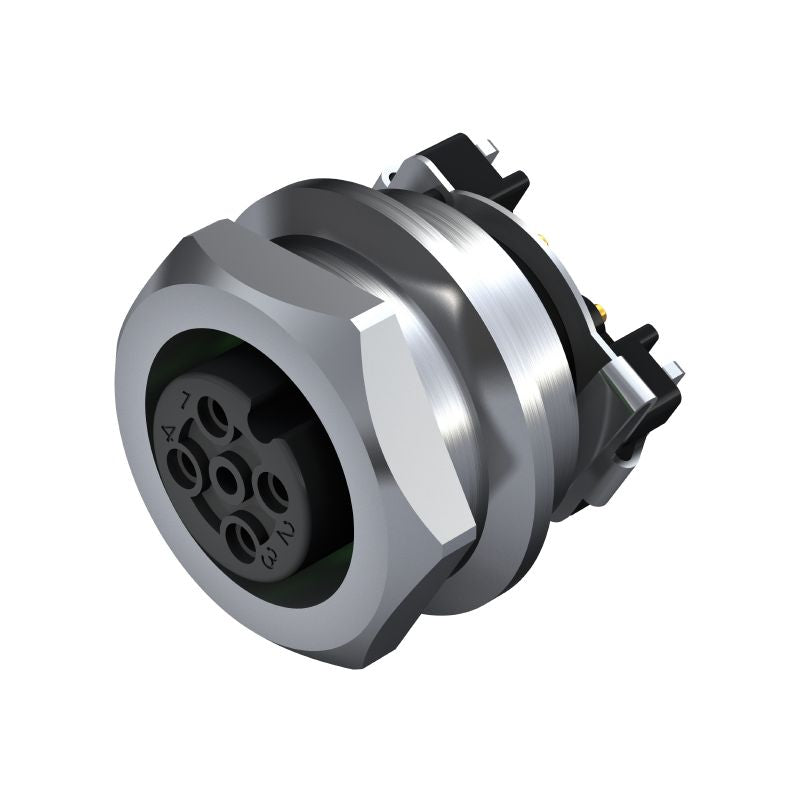

Discover the reliability of this built-in M12 plug connector, featuring a robust M14 mounting thread and a 5-pole configuration Engineered with multiple certifications and compliant with RoHS standards, this connector offers durability and safety With a weight of just 896 grams, it boasts a nickel-plated exterior and supports installation heights of 13 mm Designed for a nominal voltage of 60 V and a rated voltage of 250 V for 4-pole, this connector handles a rated current of 4 A effectively.

It operates smoothly in a temperature range from -30 to 80 °C and is rated IP67 for superior protection against dust and moisture The general order number for easy reference is 2423770000.

Features and Benefits:

•Nickel-plated housing.

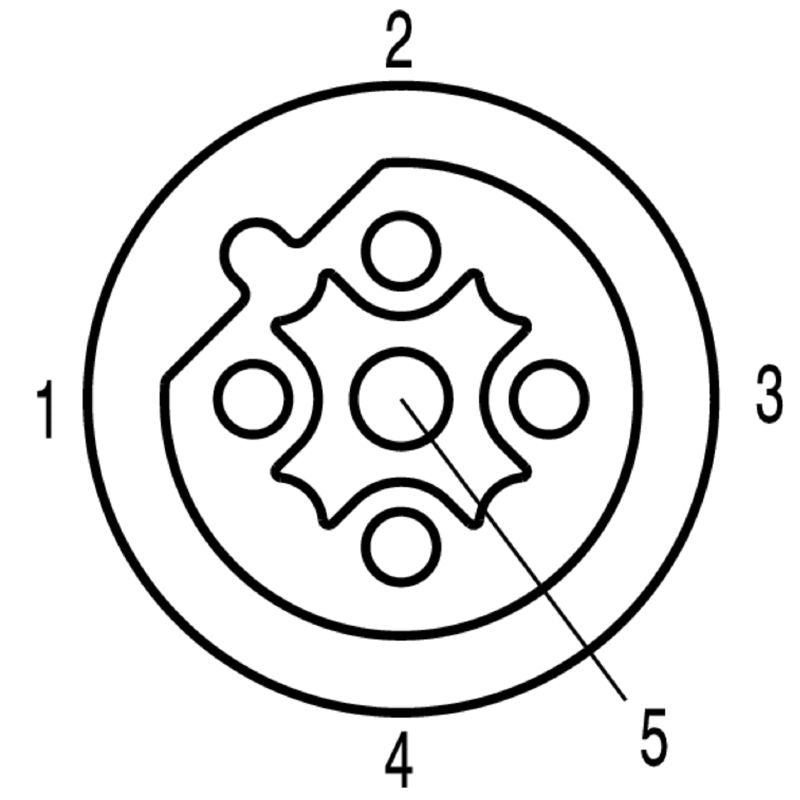

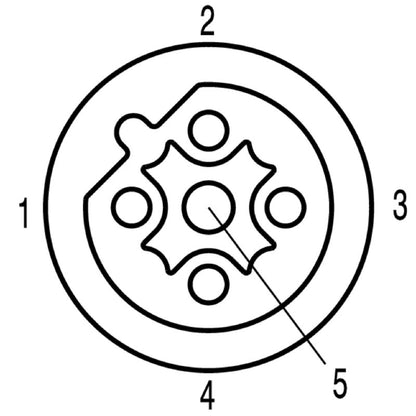

•5-pole configuration.

•Shield connection present.

•IP67 protection degree.

•Suitable for temperatures from -30 to 80 °C.

•SMD solder connection type.

•Can withstand 100 or more plugging cycles.

Specifications:
