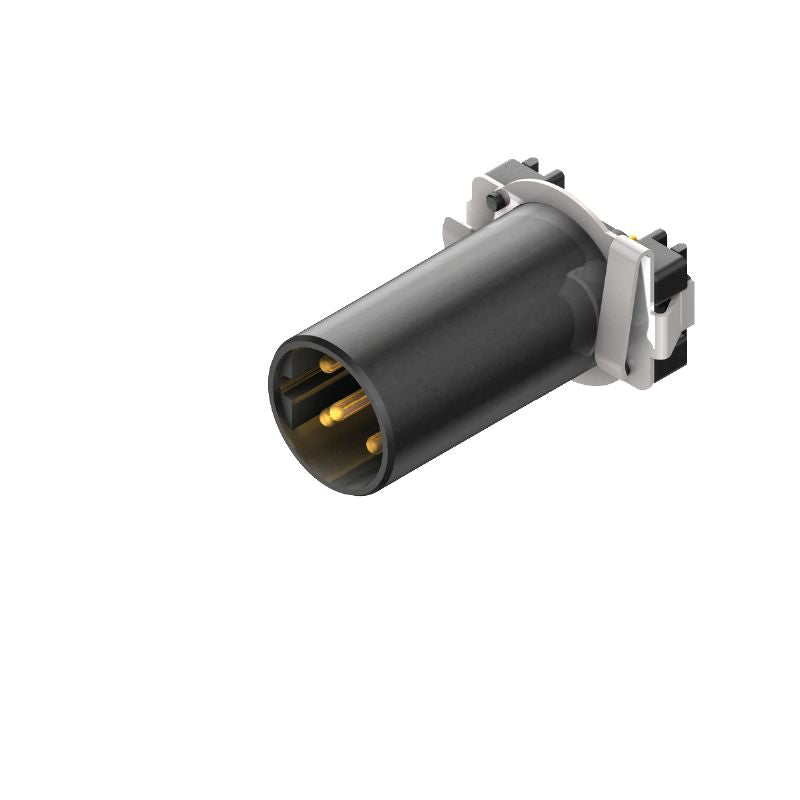

2422720000 - Compact M12 4-Pole Connector, IP67, 250V Rated (Pack of 25)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SAID-M12SB-4S-9SMT, a compact and efficient built-in M12 plug connector featuring a reliable four-pole configuration This connector is engineered for versatility, accommodating various mounting threads and operating at a nominal voltage of 250V With a robust IP67 rating, it guarantees durability in tough environments, making it compliant with RoHS standards Designed for longevity, it supports a minimum of 100 plugging cycles and operates effectively across a temperature range of -25 to 95 °C.

Perfect for those who need reliability in industrial applications.

Features and Benefits:

•B-coded housing for reliable connections.

•LCP as the main material for the housing.

•Gold contact surface for improved conductivity.

•Rated for 4A nominal current.

•Nickel-plated materials for enhanced durability.

•Protection degree of IP67 for outdoor applications.

Specifications:
