Description:

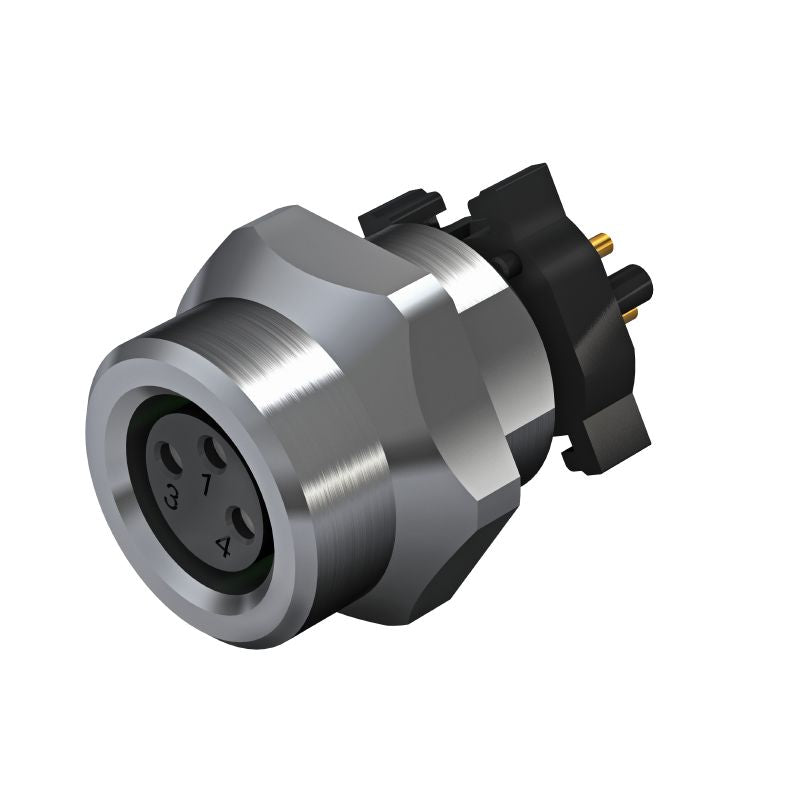

The SAIE-M8B-3-F13THR is engineered for applications requiring a reliable 3-pole connection, featuring integrated plugs for seamless connectivity It includes a mounting thread size of M10, and the cabling length adheres to the specified standards This product is compliant with RoHS regulations and comes with applicable exemptions, ensuring environmental safety.

Features and Benefits:

•Compliant with RoHS exemptions.

•Designed for front mounting.

•Protection degree of IP67.

•Offers a temperature range of -30 to 80 °C.

•Suitable for THT/THR solder connection with ≥ 100 plugging cycles.

Specifications:

Number of poles	3
Dimensions	Unknown
Nominal voltage	60 V
Rated voltage	60 V (3-pole) / 30 V (4-,5- and 8-pole)
Nominal current	4 A
Rated current	4 A

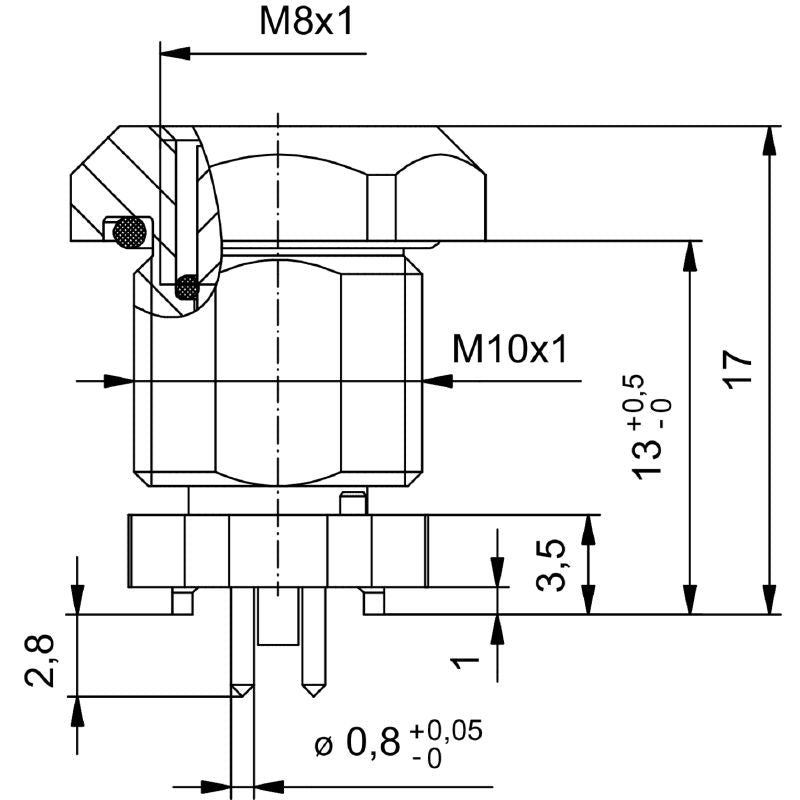

Installation height	13 mm
Shield connection	No
Mounting torque max.	0.8 Nm
Insulation resistance	100 MΩ
Pollution severity	3 (2 within the sealed area)
Contact material	Cu-alloy
Contact surface	Au (Gold)
Housing main material	CuZn, nickel-plated
Connection thread	M8
Tightening torque	0.5 Nm
Seal material	FPM
Grouting material	PUR
