Description:

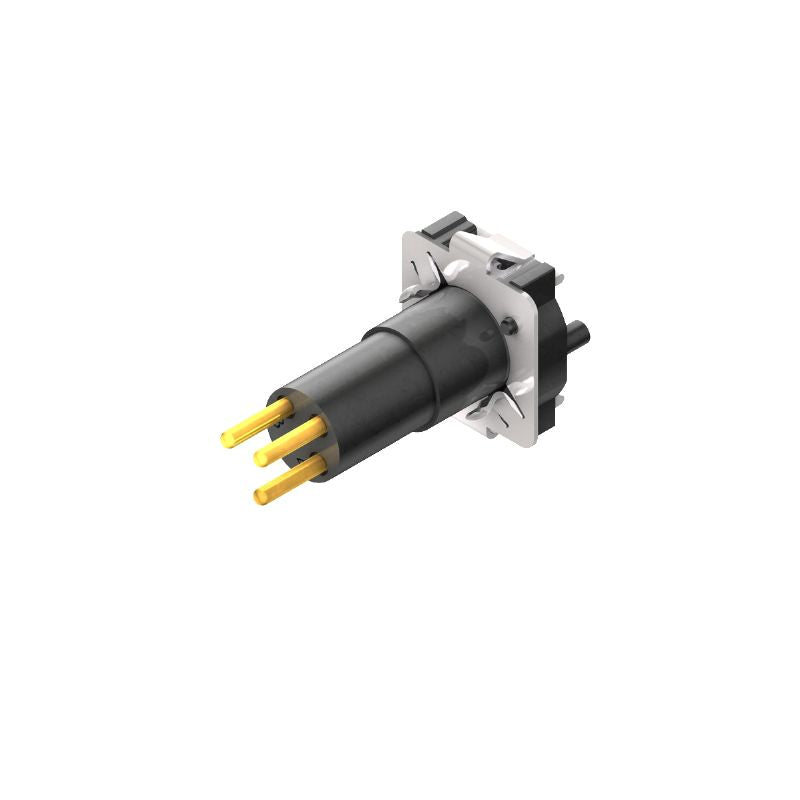

Introducing a versatile built-in plug type M8 connector, perfect for your PCB applications This connector features four poles and comes with a mounting thread for easy installation Engineered to handle nominal voltages of 30V, it boasts a rated voltage of 60V for its 3-pole configurations while maintaining 30V for the 4-, 5-, and 8-pole versions With an IP67 protection rating, this connector is compliant with RoHS standards, making it suitable for various environmental conditions.

Features and Benefits:

    •Gold contact surface.

    •Rated for plugging cycles of at least 100.

    •Temperature range from -25 to 95 degrees Celsius.

    •UL 94 flammability rating of V-0.

Specifications:

 Number of poles 4
 Nominal current 4 A
 Rated current 4 A
 Shield connection No
 Tightening torque 0.5 Nm
 Protection degree IP67
 Connection thread M8
 Housing main material LCP
 Contact material Cu-alloy
 Lock nut material Nickel-plated CuZn
 Material of the flange-mounted housing Nickel-plated CuZn
 Plugging cycles ≥ 100
 Pollution severity 3 (2 within the sealed area)
 RoHS Compliance Status Compliant with exemption
 RoHS Exemption 6c
 REACH SVHC Lead 7439-92-1
