2423090000 - Durable M12 Connector, 4-Pole, IP67, -30 to 80°C (Pack of 10)

SKU: SKU: 2423090000 Download PDF

Select a Variant:

2423090000 - Durable M12 Connector, 4-Pole, IP67, -30 to 80°C (Pack of 10)

SET THE QTY:

Now $53.96 Web pricing policy

~~BEFORE $0.00~~ Now $53.96 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

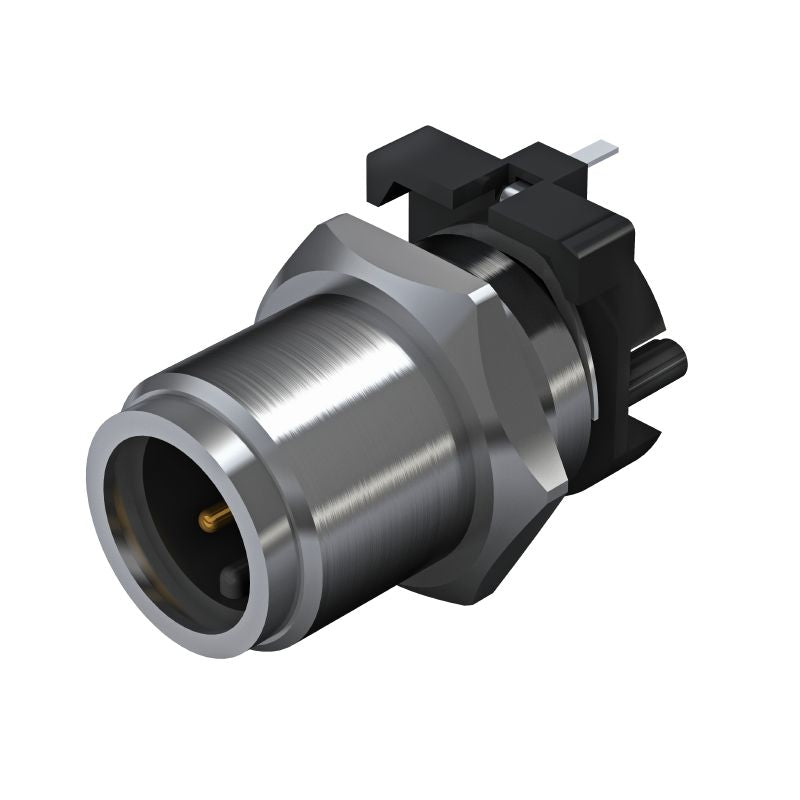

Introducing the SAIE-M12S-4S-F55TL, a robust four-pole M12 connector engineered for simplicity with integrated plugs that facilitate quick installation This connector adheres to RoHS standards, complete with applicable exemptions, ensuring a commitment to safety and environmental compliance It operates effectively in extreme temperature ranges from -30 to 80 degrees Celsius Featuring a nickel-plated housing, this connector not only offers enhanced durability but also supports front mounting with an IP67 rating, making it an excellent choice for demanding environments.

Features and Benefits:

•A-coded for specific connection orientation.

•Nickel-plated housing for improved corrosion resistance.

•IP67 protection rating ensures dust and water resistance.

•Designed to withstand up to 100 plugging cycles.

Specifications:

Number of poles	4

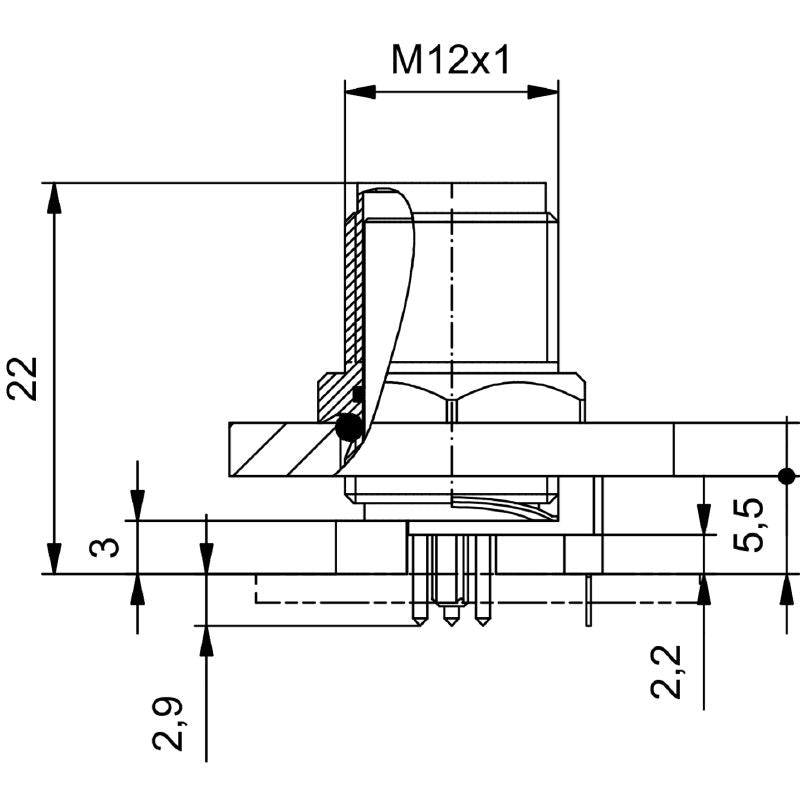

Installation height	5.5 mm
Nominal voltage	250 V
Rated voltage	250 V (4-pole) / 60 V (5-pole)
Nominal current	4 A
Rated current	4 A
Temperature range	-30…80 °C
Protection degree	IP67
Insulation resistance	100 MΩ
Plugging cycles	≥ 100
Contact surface	Au (Gold)
Housing main material	CuZn

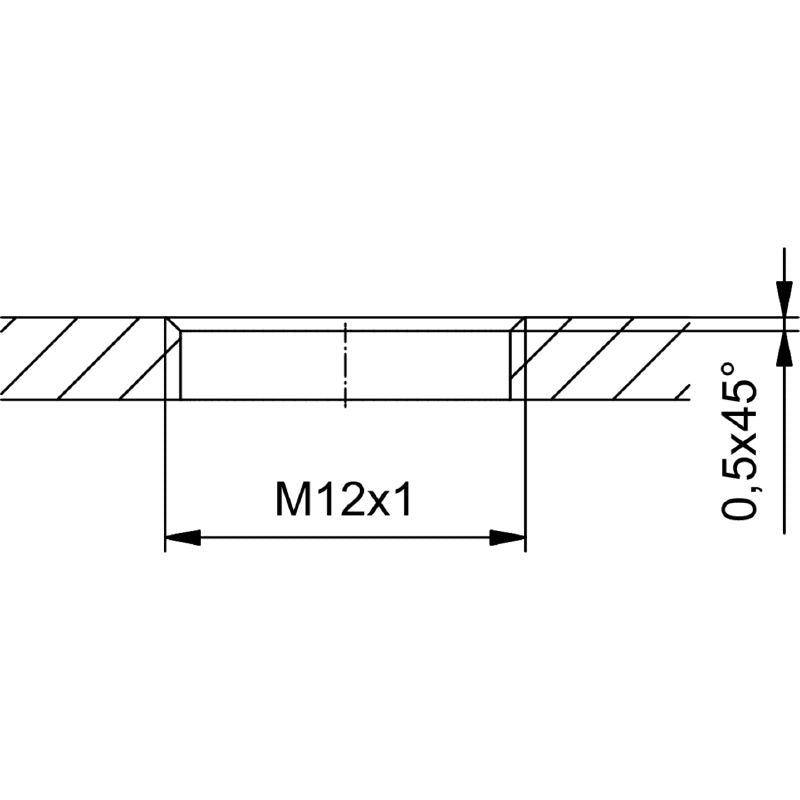

Connection thread	M12
Tightening torque	M12: 0.8 Nm
Mounting torque	1.2 Nm
