2423960000 - IP67 M12 Connector, 4-Pole, 250V, Nickel-Plated, Waterproof (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

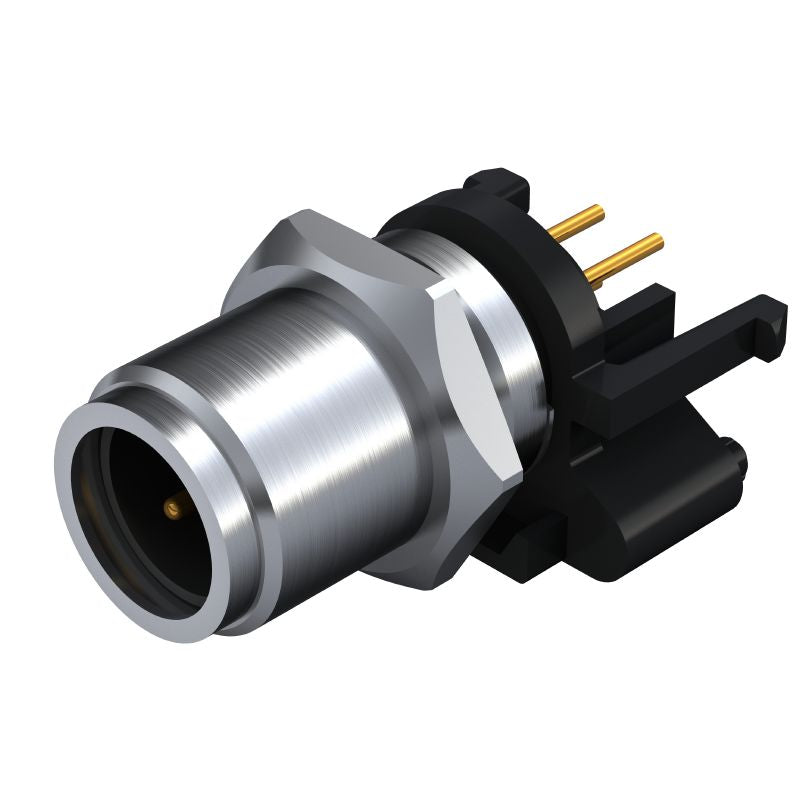

Introducing a versatile connector that features built-in M12 plugs and a mounting thread of M12 with 4 poles It is fully compliant with RoHS regulations, confirming adherence to exemption 6c Weighing in at only 12056 grams, this connector boasts a B-coded design with a nickel-plated CuZn housing for enhanced durability Rated for a nominal voltage of 250V and capable of handling up to 4A, it operates within a temperature range of -30 to 80 degrees Celsius.

With an impressive IP67 protection rating, this product is both dust-tight and waterproof, making it ideal for front mounting applications Additionally, it can endure at least 100 plugging cycles for reliable performance.

Features and Benefits:

•Built-in plugs for easy integration.

•B-coded connector for secure connections.

•Nickel-plated housing surface for durability.

•Designed for dust and water protection with IP67 rating.

•Able to handle a nominal voltage of 250V and a current of 4A.

Specifications:
