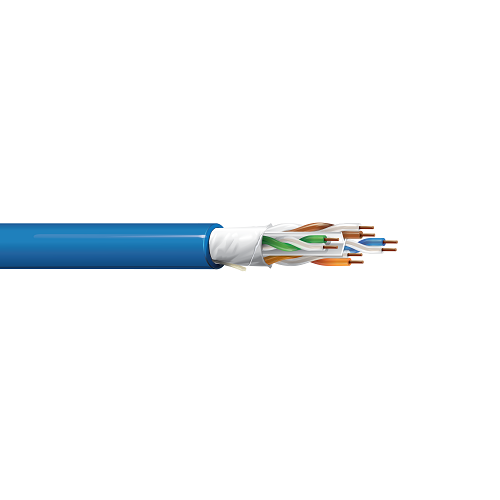

Belden 10GXW13 23 AWG 4 Pair Solid Bare Copper Category 6A Premise 300V Horizontal Cable

Description:-

10GXW (0.250" Diameter) Category 6A Premise Horizontal Cable (500MHz), 4 Pair, 23 AWG Solid Bare Copper Conductors, U/UTP, Plenum-CMP, Flamarrest PVC-LS Jacket

Insulation:-

• Material: FEP - Fluorinated Ethylene Propylene

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Material Trade Name: Flamarrest
• Nom. Diameter: 0.250 in (6.35 mm)
• Overall Cable Diameter (Nominal): 0.250 in (6.35 mm)
• Separator: Center Member (Patented X-Spline), EquiBlock Barrier Technology

Standards:-

• UL Voltage Rating: 300 V (CMP)
• Operating Temperature Range: -20°C To +75°C

Applications:-

• Premise Horizontal Cable, Ethernet 10GBASE-T, Wi-Fi 6, Wi-Fi 5, In-Building Wireless, In-Building Small Cells, Mobile RAN, PoE++, PoE+, PoE, HDBaseT

Specifications:-

• Size (AWG): 23
• No. of Pairs: 4
• Stranding: Solid
• Data Category: Category 6A
• Conductor Material: BC - Bare Copper
• Part Number: 10GXW13
