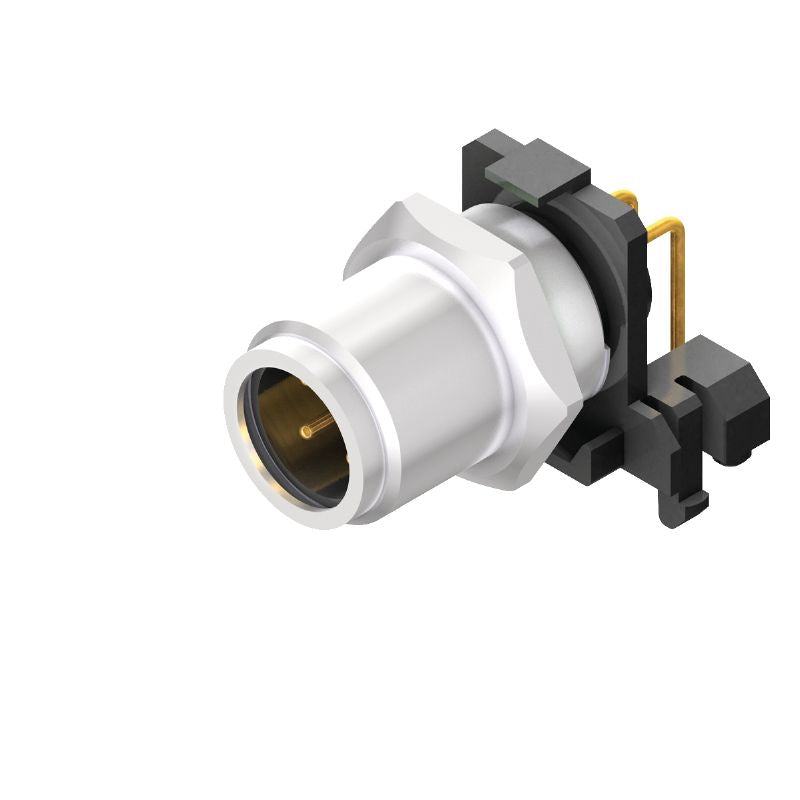

2423780000 - IP67 M12 Connector with 4 Poles and Threaded Mounting (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a versatile M12 connector crafted for secure mounting, complete with built-in plugs and an M12 thread size This component features four poles and comes with specifications for cable length It adheres to RoHS regulations, including applicable exemptions, and is classified under REACH due to the presence of lead With an impressive IP67 rating, this connector offers reliable protection against dust and water ingress, making it suitable for various applications.

Features and Benefits:

•A-coded connector.

•Front mounting type.

•Gold contact surface.

•Nickel-plated CuZn material.

•Rated for a nominal voltage of 250V.

•Rated for a nominal current of 4A.

•Operating temperature range of -30 to 80 °C.

•100 plugging cycles or more.

Specifications:
