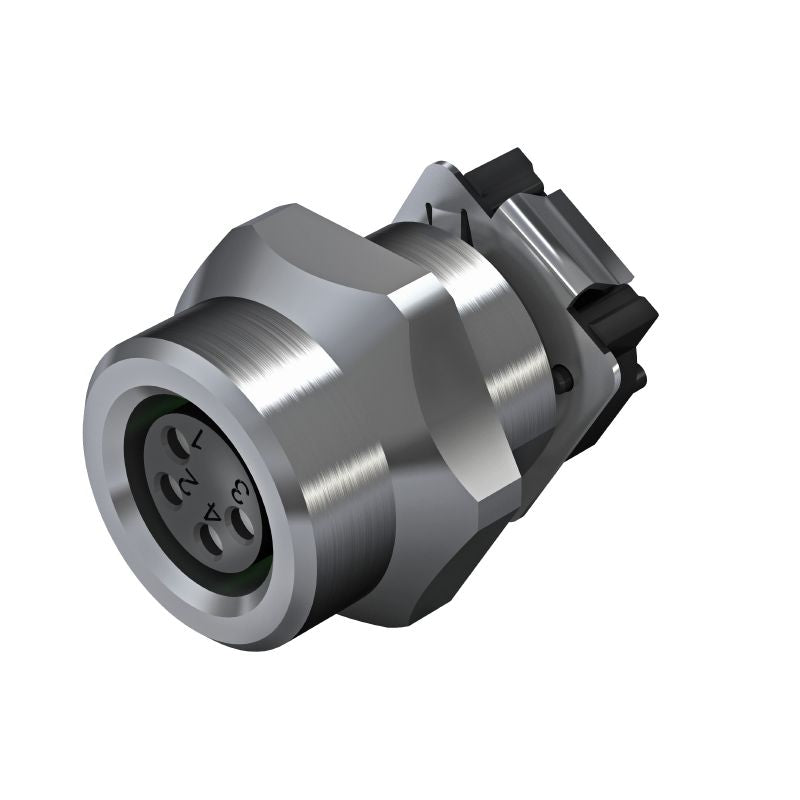

2422740000 - M8 8-Pole PCB Connector with IP67 Protection (Pack of 25)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

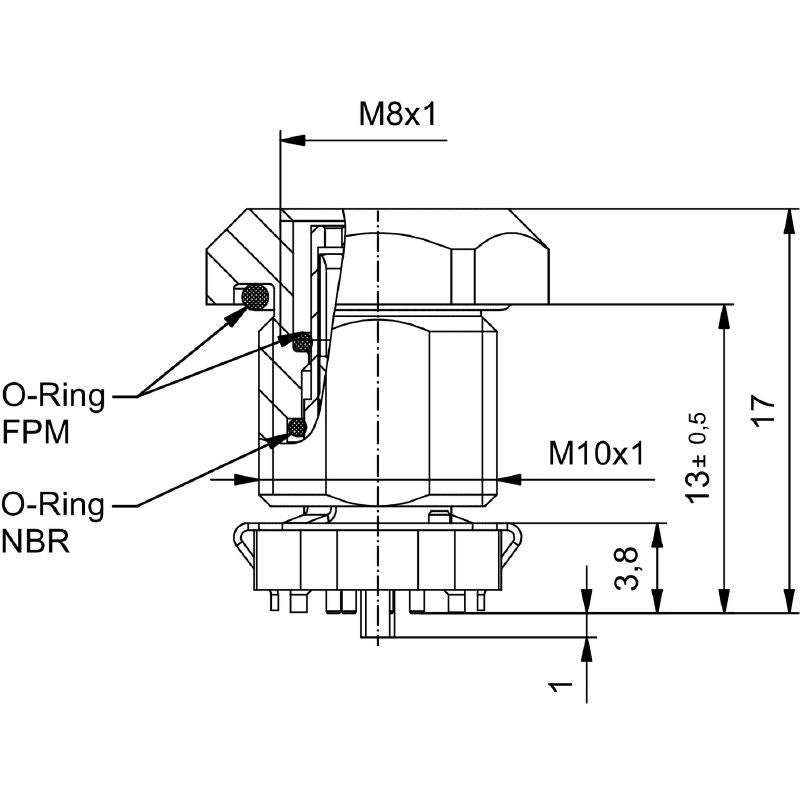

Introducing the SAIE-M8B-8S-F13SMT PCB plug-in connector, expertly designed with integrated plugs and a secure M8 socket This connector features a sturdy M10 mounting thread and supports a total of 8 poles Its operational capacity includes a nominal voltage of 30 V, with rated voltage options of 60 V for configurations of 3 poles, and 30 V for 4, 5, and 8 poles The rated current is 4 A for the 3, 4, and 5-pole configurations, while the 8-pole version handles 1.

5 A Built to withstand a temperature range of -30 to 80 °C, this connector also boasts an IP67 protection rating, ensuring it remains impervious to dust and water ingress, making it a reliable choice for various applications.

Features and Benefits:

•Nickel-plated housing surface.

•Gold contact surface.

•Insulation resistance of 100 MΩ.

•Supports over 100 plugging cycles.

•Front mounting design.

•M8 connection thread.

Specifications:
