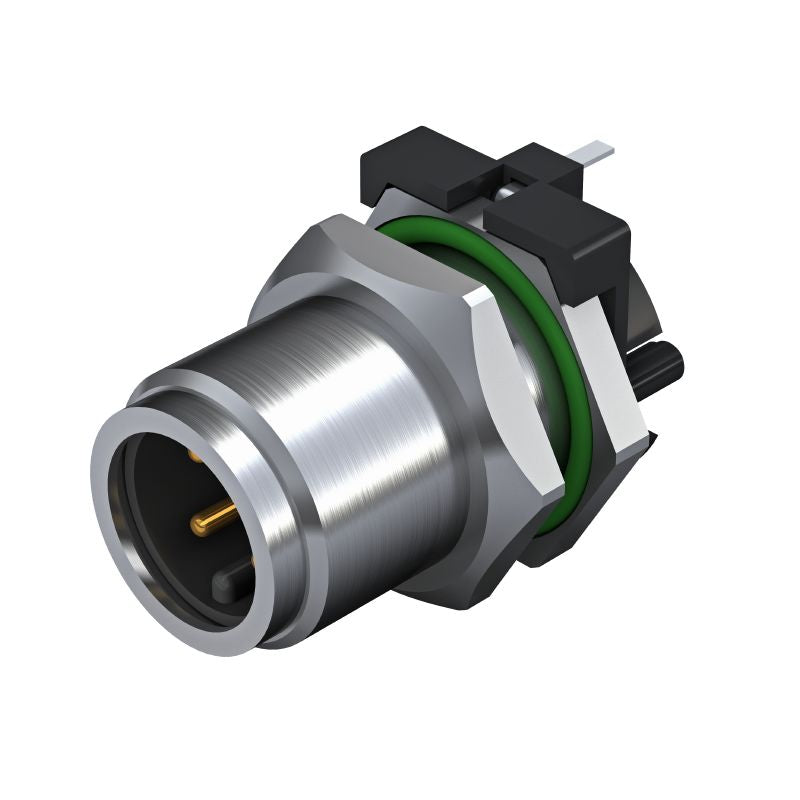

2422850000 - M12 PCB Connector, 4 Poles, IP67, 10mm Height (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a high-performance PCB plug-in connector featuring an M12 configuration tailored for 4-pole connections This connector adheres to RoHS standards, complete with designated exemptions Crafted from nickel-plated CuZn, it offers superior durability and is designed for rear panel mounting compatibility It operates efficiently at a nominal voltage of 250V and can accommodate a current of 4A Built to withstand temperatures ranging from -30°C to 80°C, this connector provides an IP67 protection rating for excellent resistance against dust and water ingress.

With a lifespan of supporting over 100 plugging cycles, it ensures reliability for all your connection needs.

Features and Benefits:

•A-coded for specific polarity.

•Nickel-plated housing for improved corrosion resistance.

•Rear panel mounting type for easy installation.

•Supports a wide temperature range from -30°C to 80°C.

•IP67 protection for dust and water resistance.

•Rated for over 100 plugging cycles.

•Insulation resistance of 100 MΩ.

Specifications:
