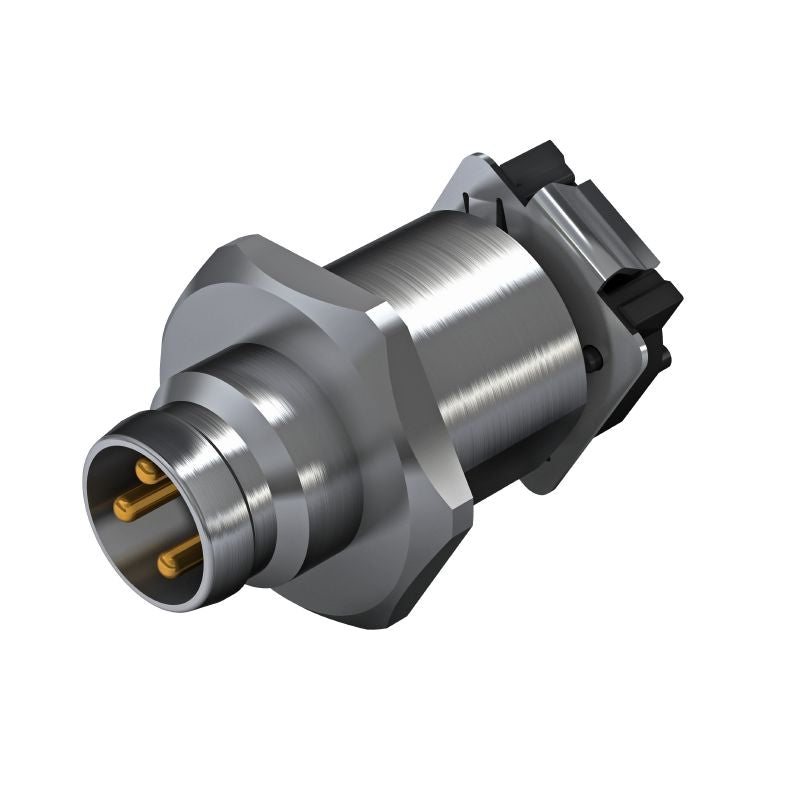

2422560000 - M8 Connection 4-Pole Connector with Nickel-Plated Housing (Pack of 25)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

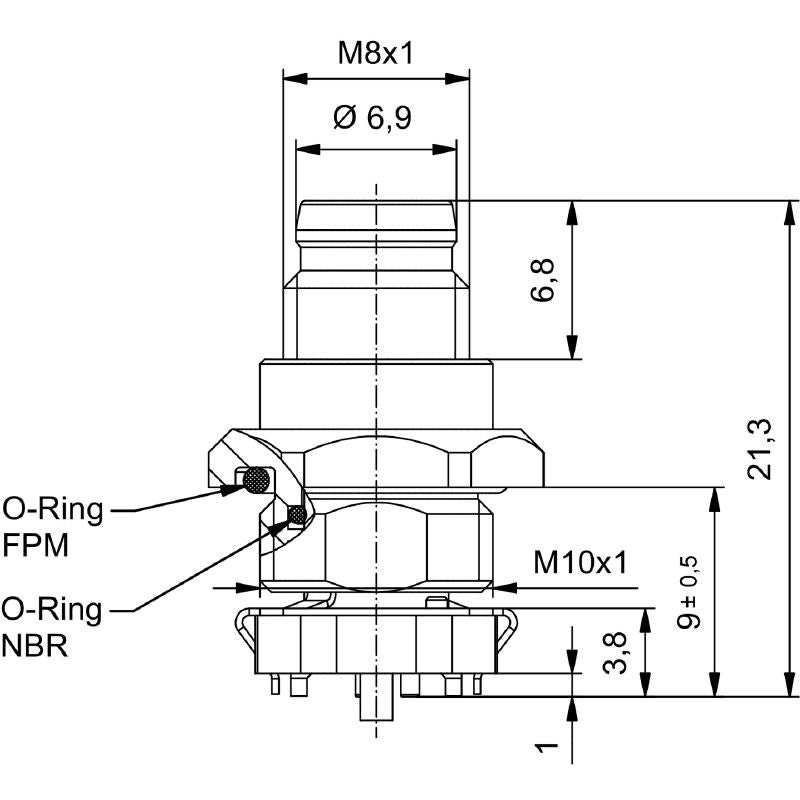

Introducing the SAIE-M8S-4S-F9SMT connector, engineered for versatility with its M8 connection and M10 mounting thread This four-pole connector is ideal for a wide range of applications, all while adhering to RoHS compliance standards, with certain exemptions for specific uses Weighing in at just 812 grams, it features a robust nickel-plated CuZn housing that provides excellent durability The connector boasts an installation height of 9 mm and is rated for 60 V in three-pole configurations, and 30 V for four-pole setups.

With an operating temperature range of -30 to 80 °C and an IP67 protection rating, it's built to withstand diverse environments and conditions.

Features and Benefits:

•Nickel-plated housing.

•M8 connection with 4 poles.

•Front mounting type.

•Compatible with various environmental conditions.

Specifications:
