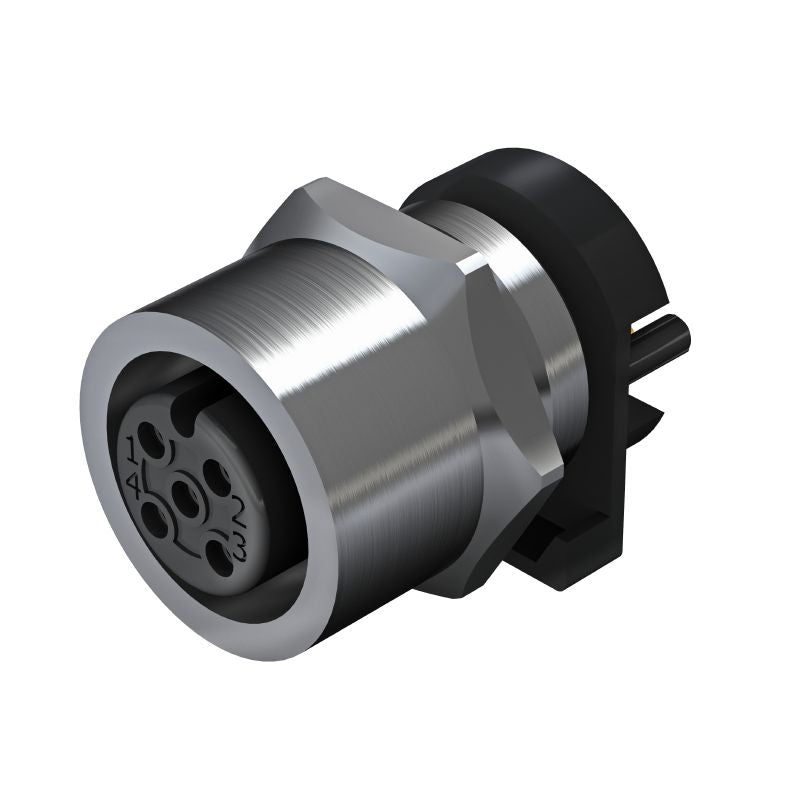

2423030000 - M12 A-Coded PCB Connector with IP67 Protection, 5 Poles (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a robust PCB plug-in connector that guarantees dependable connections with its built-in plugs and M12 mounting thread This connector is designed with A-coded features and sports a durable nickel-plated housing Comprising a total of 5 poles, it is engineered to handle a nominal voltage of 60V and a rated voltage of 250V for 4-pole configurations, while also accommodating 60V for 5-pole setups.

With a nominal current rating of 4A, this connector operates efficiently within a temperature range of -30 to 80 degrees Celsius Boasting an impressive IP67 rating, it offers exceptional resistance against dust and water ingress The installation height is measured at 55mm, requiring a tightening torque of 08Nm for optimal security during installation.

Features and Benefits:

•A-coded coding for specific applications.

•Nickel-plated housing for enhanced durability.

•Compatible with 5-pole configurations.

•Designed for front mounting for ease of installation.

•High insulation resistance of 100 MΩ.

•Can withstand over 100 plugging cycles.

Specifications:
