2424340000 - IP67 Nickel-Plated Front Mount Connector with 4 Poles (Pack of 10)

SKU: SKU: 2424340000 Download PDF

Select a Variant:

2424340000 - IP67 Nickel-Plated Front Mount Connector with 4 Poles (Pack of 10)

SET THE QTY:

Now $197.48 Web pricing policy

~~BEFORE $0.00~~ Now $197.48 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

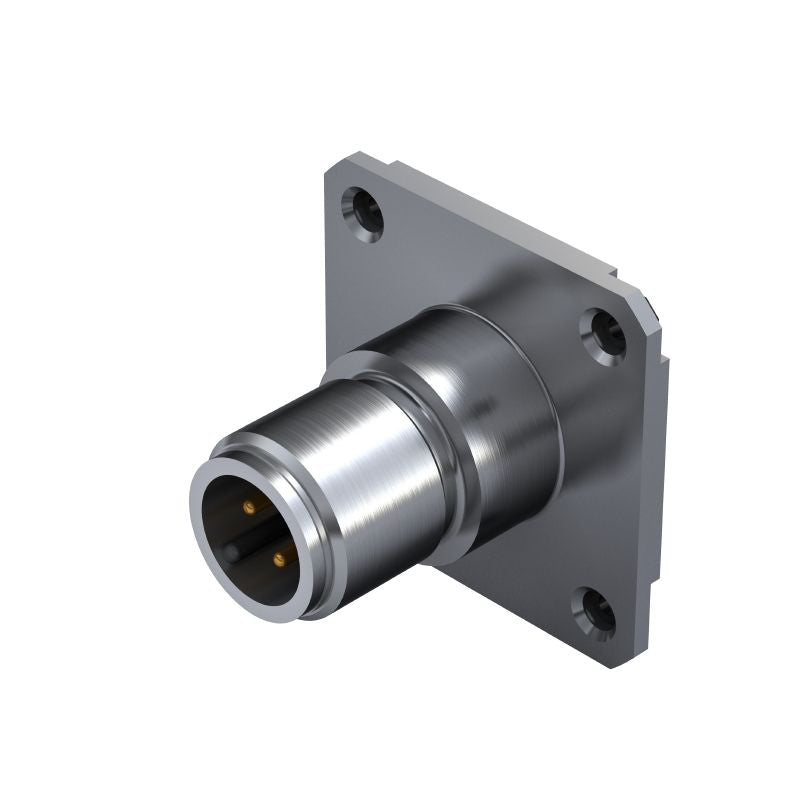

Introducing the SAIE-M12S-4A-FV-26-LK connector, expertly designed with integrated plugs and featuring a four-pole configuration This connector boasts a durable nickel-plated housing, making it ideal for front mounting applications With a robust IP67 protection rating, it is engineered to endure various environmental conditions and is RoHS compliant, ensuring safety and sustainability in your electrical connections.

Features and Benefits:

•Compliant with RoHS and includes an exemption..

•Rated for nominal voltage of 250V and a nominal current of 4A..

•Constructed with a durable CuZn material and gold contact surface, ensuring reliable connectivity..

•Has a wide temperature range of -30 to 80 °C..

•Designed for a minimum of 100 plugging cycles, ensuring longevity..

Specifications:

Number of poles	4
Housing main material	CuZn, nickel-plated
Connection thread	M12
Nominal voltage	250 V
Rated voltage	250 V (4-pole) / 60 V (5-pole)
Nominal current	4 A
Rated current	4 A
Temperature range	-30…80 °C
Protection degree	IP67
Contact surface	Au (Gold)
Insulation resistance	100 MΩ
Plugging cycles	≥ 100
Tightening torque	M12: 0.8 Nm
Pollution severity	3 (2 within the sealed area)
Contact material	Cu-alloy
Lock nut material	Nickel-plated CuZn
Material of the flange-mounted housing	Nickel-plated CuZn
