2423680000 - M12 Built-in Plug with M14 Thread, Four Poles (Pack of 25)

SKU: SKU: 2423680000 Download PDF

Variant:

2423680000 - M12 Built-in Plug with M14 Thread, Four Poles (Pack of 25)

Now $198.21

~~BEFORE $0.00~~ Now $198.21

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

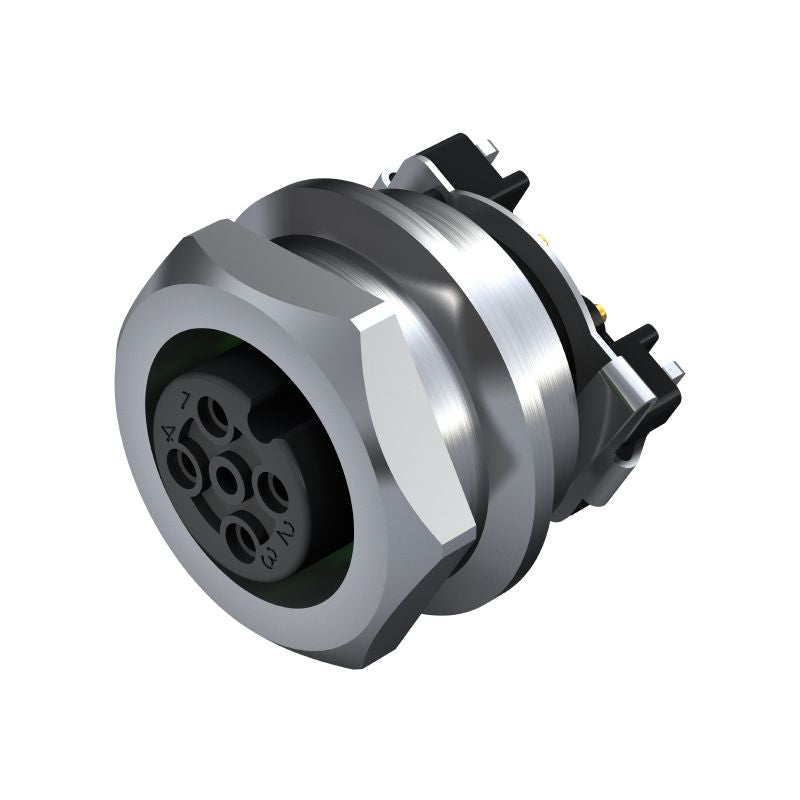

Upgrade your connectivity with this built-in plug, specifically designed for M12 connections It features a M14 mounting thread and includes four poles for enhanced functionality With a lightweight design of just 8 grams, this product is easy to handle Plus, it meets RoHS standards, ensuring compliance for environmentally friendly use The order number for this item is 2423680000.

Features and Benefits:

•B-coded housing.

•Nickel-plated surface.

•IP67 protection degree.

•Supports SMD solder connection.

•Rated for 250V and 4A.

•Works within a temperature range of -30 to 80 °C.

•Over 100 plugging cycles.

Specifications:

Nominal voltage	250 V
Rated voltage	250 V (4-pole) / 60 V (5-pole)
Nominal current	4 A
Rated current	4 A
Installation height	9 mm
Shield connection	Yes
Contact material	Cu-alloy
Contact surface	Au (Gold)
Mounting torque max.	1.2 Nm
Insulation resistance	100 MΩ
Pollution severity	3 (2 within the sealed area)
Housing main material	CuZn, nickel-plated
Lock nut material	Nickel-plated CuZn
Connection thread	M12
Tightening torque	M12: 0.8 Nm
Plugging cycles	≥ 100
