2424420000 - High-Performance M8 Connector, IP67, 4-Pole, Up to 60V (Pack of 10)

SKU: SKU: 2424420000 Download PDF

Select a Variant:

2424420000 - High-Performance M8 Connector, IP67, 4-Pole, Up to 60V (Pack of 10)

SET THE QTY:

Now $98.74 Web pricing policy

~~BEFORE $0.00~~ Now $98.74 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

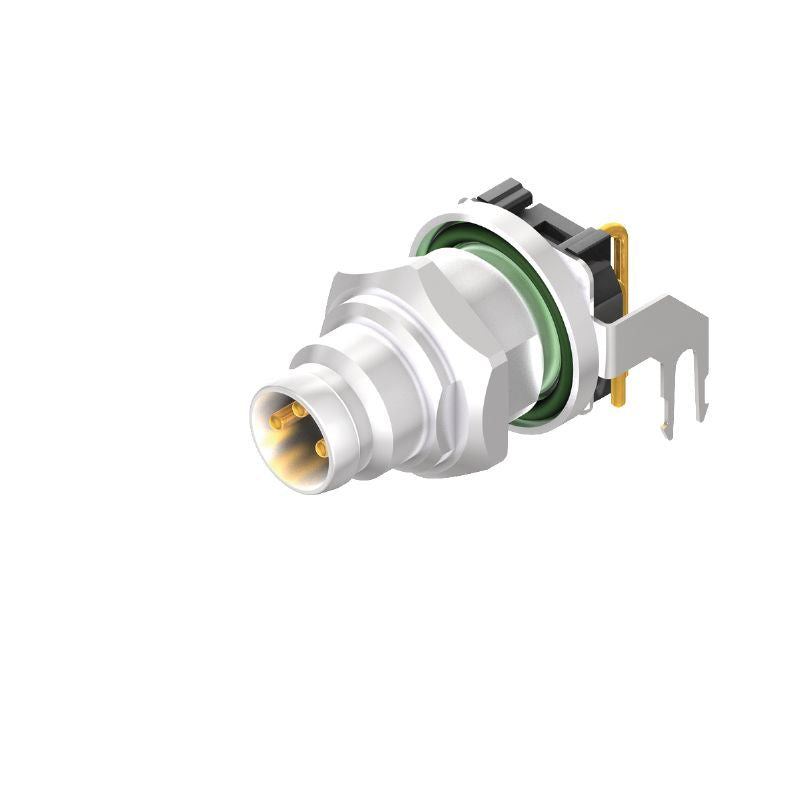

Introducing the SAIEW-M8S-4S-H8TL, a high-performance connector engineered for excellence This model features an M8 mounting thread and offers four poles, ensuring reliability in various applications Compliant with RoHS standards, it operates efficiently at an impressive voltage capacity of 60V for 3-pole connections and 30V for 4-pole configurations With a temperature tolerance ranging from -30 to 80 degrees Celsius, it guarantees optimal functionality in diverse environments.

Additionally, its IP67 rating provides exceptional protection against dust and water, making it a robust choice for demanding conditions.

Features and Benefits:

•Built-in M8 plugs.

•Rear panel mounting type.

•Shield connection available.

•Nickel-plated housing material.

•Insulation resistance of 100 MΩ.

•Durable contact material with gold contact surface.

•Rated for a current of 4 A.

Specifications:

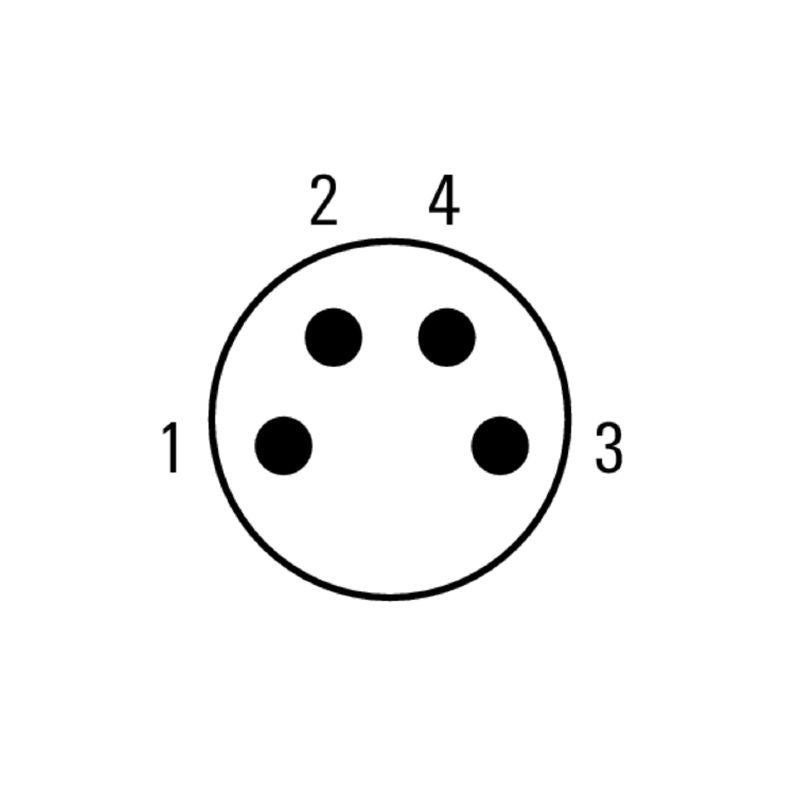

Number of poles	4
Rated voltage	60 V (3-pole) / 30 V (4-pole)
Nominal current	4 A
Temperature range	-30…80 °C
Protection degree	IP67
Contact surface	Au (Gold)
Housing main material	CuZn nickel-plated

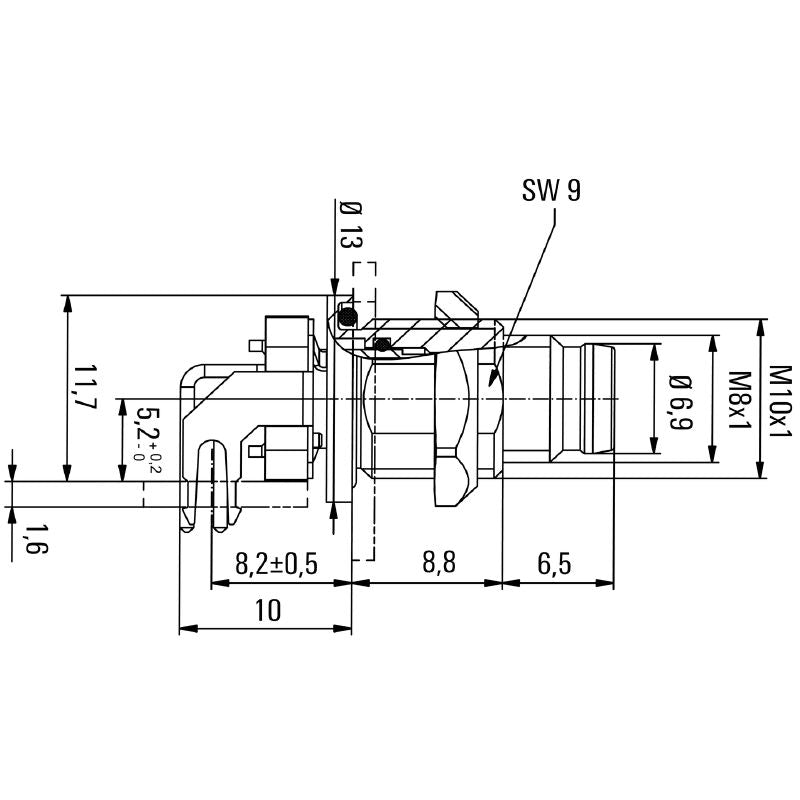

Connection thread	M8
Tightening torque	0.5 Nm
Mounting torque max.	0.8 Nm
Plugging cycles	≥ 100
Seal material	NBR
Material of the flange-mounted housing	Nickel-plated CuZn
Grouting material	PUR
