Product Information

Description:

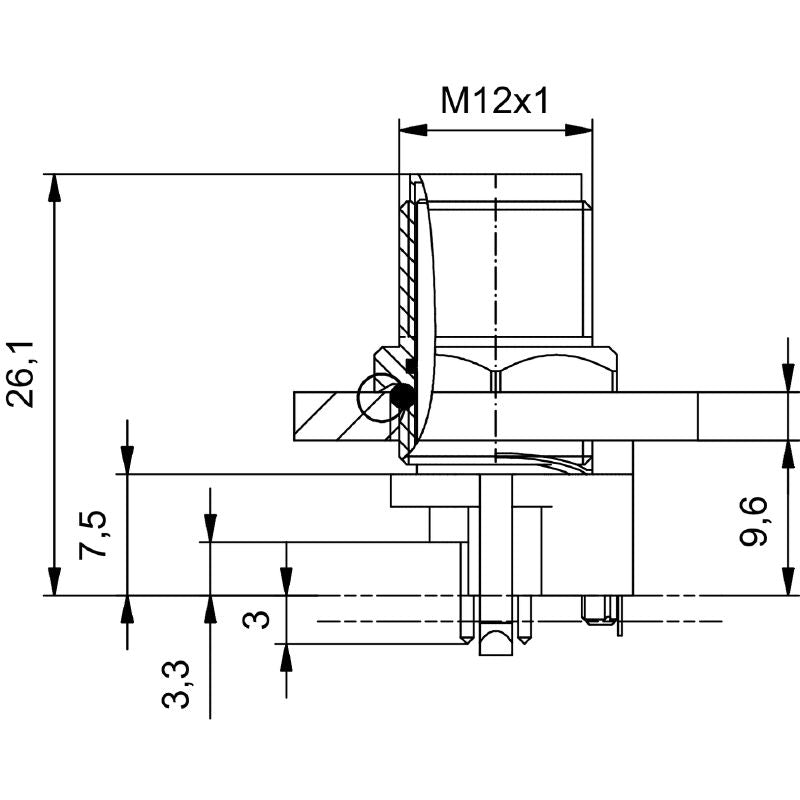

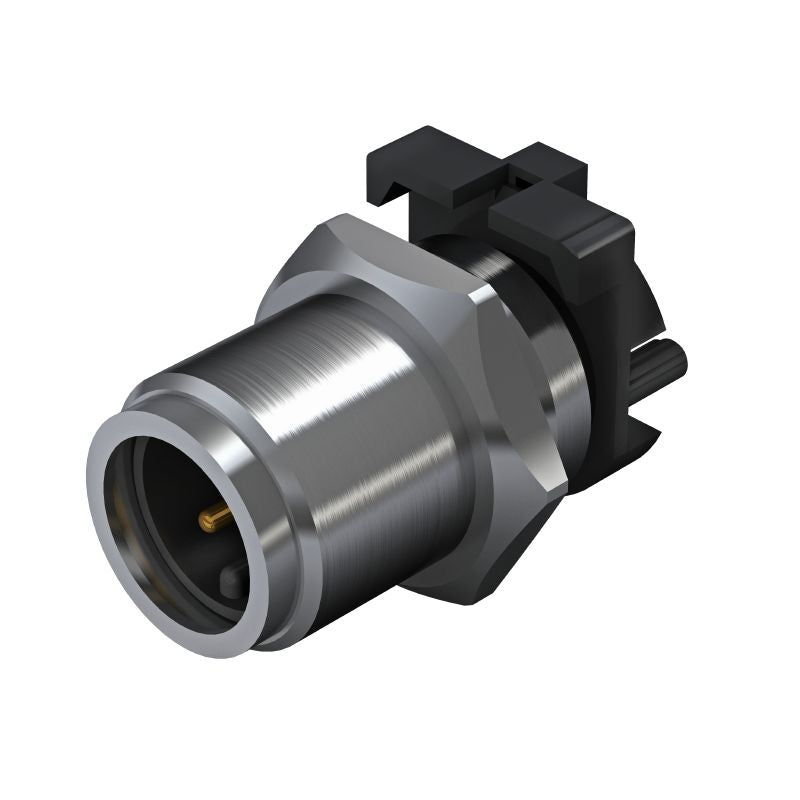

Introducing the SAIE-M12S-5-F10TL connector, designed with a built-in plug and a versatile M12 configuration featuring 5 poles It comes equipped with a standard M12 mounting thread for easy integration across various applications Weighing just 78 grams, this connector complies with RoHS regulations, with a noted exemption It operates effectively within a temperature range of -30 to 80 degrees Celsius and boasts an IP67 protection rating, ensuring reliability in challenging environments.

Features and Benefits:

•A-coded connector design.

•Nickel-plated housing for durability.

•4A rated current for effective power handling.

•Advanced gold plating on contact surfaces for enhanced conductivity.

•Ability to withstand 100 or more plugging cycles.

Specifications:

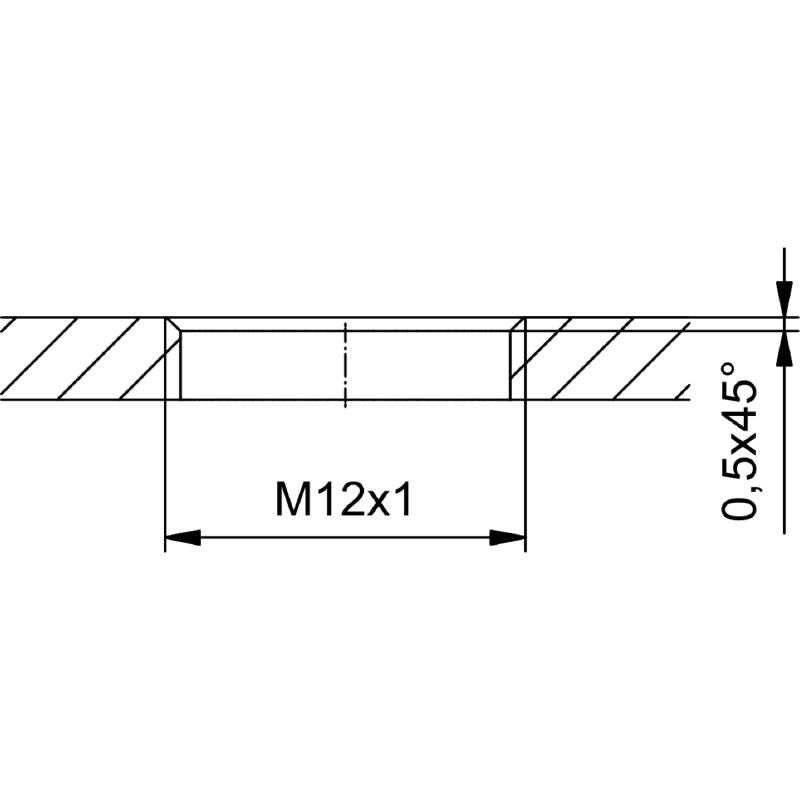

Mounting thread	M12

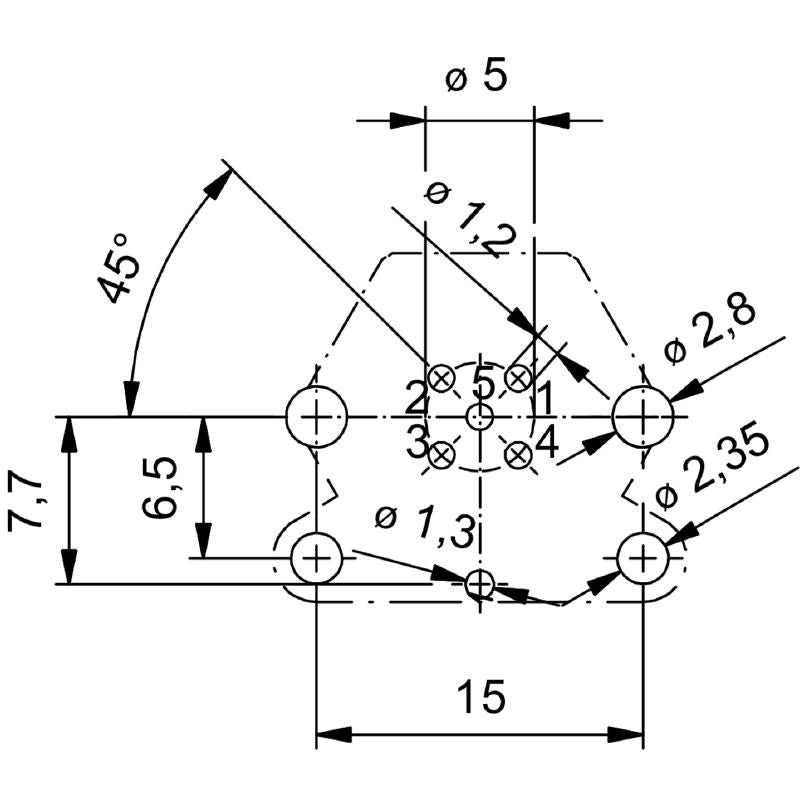

Number of poles	5
Nominal voltage	60 V
Rated voltage	250 V (4-pole) / 60 V (5-pole)
Tightening torque	0.8 Nm
Mounting torque max	1.2 Nm
Insulation resistance	100 MΩ
Pollution severity	3 (2 within the sealed area)
Plugging cycles	≥ 100
Contact material	Cu-alloy
Protection degree	IP67
Temperature range	-30…80 °C
Connection thread	M12
Housing main material	CuZn
Contact surface	Au (Gold)
