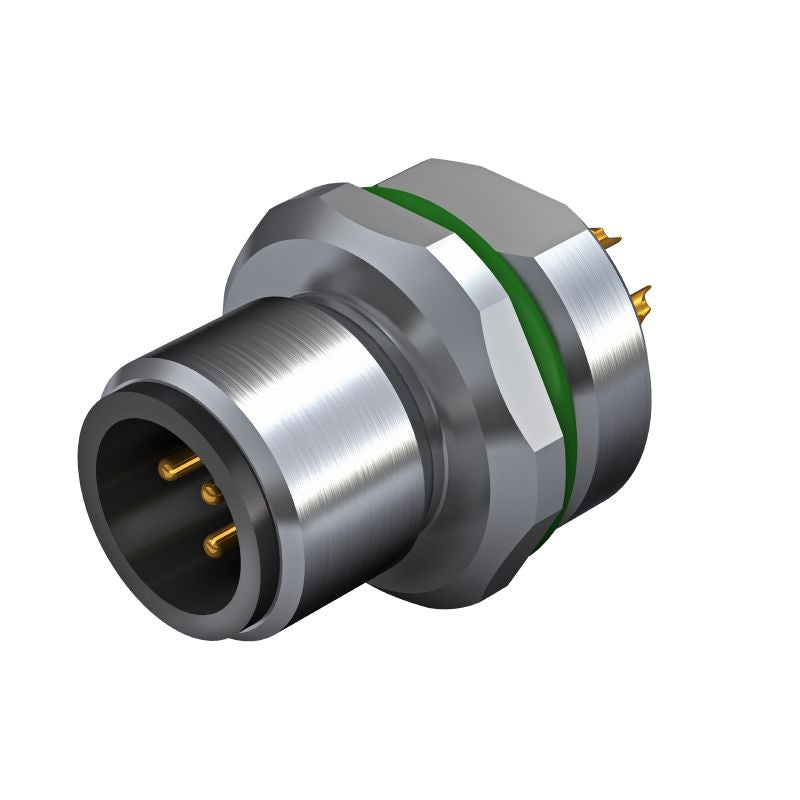

2424160000 - M12 PCB Connector, 5-Pole, IP67, Gold Contact Surface (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the M12 PCB plug-in connector, a reliable solution featuring integrated plugs This connector includes a mounting thread of M 16 x 15 and boasts 5 poles for versatile applications It is RoHS compliant and is sold in packs of 10 Weighing in at just 162 grams, it is built with a nickel-plated housing and a copper-zinc alloy, ensuring durability Designed for efficient performance, this connector handles a nominal voltage of 60V and a rated voltage of 250V for its 4-pole configuration.

Both the rated and nominal current are set at 4A, with the device functioning effectively in temperatures ranging from -30 to 80 degrees Celsius It also features an IP67 protection rating for maximum reliability With a gold contact surface for enhanced conductivity, this connector is intended for front mounting and requires a tightening torque of 08 Nm for M12 installations, while the maximum mounting torque is capped at 1.

2 Nm Built to last, it supports a minimum of 100 plugging cycles, making it a durable choice for various electrical connections.

Features and Benefits:

•Built-in plugs.

•Nickel-plated housing.

•A-coded configuration.

•Capable of front mounting.

•Protection degree of IP67.

Specifications:
