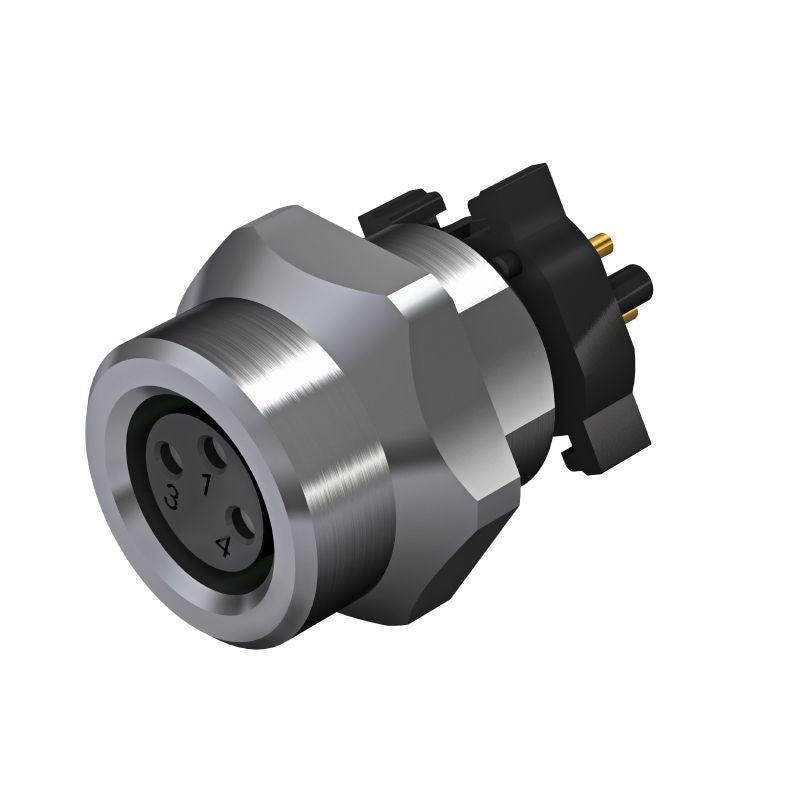

2423280000 - M8 Connector with M10 Thread, IP67 Rated, 13mm Height (Pack of 25)

Description:

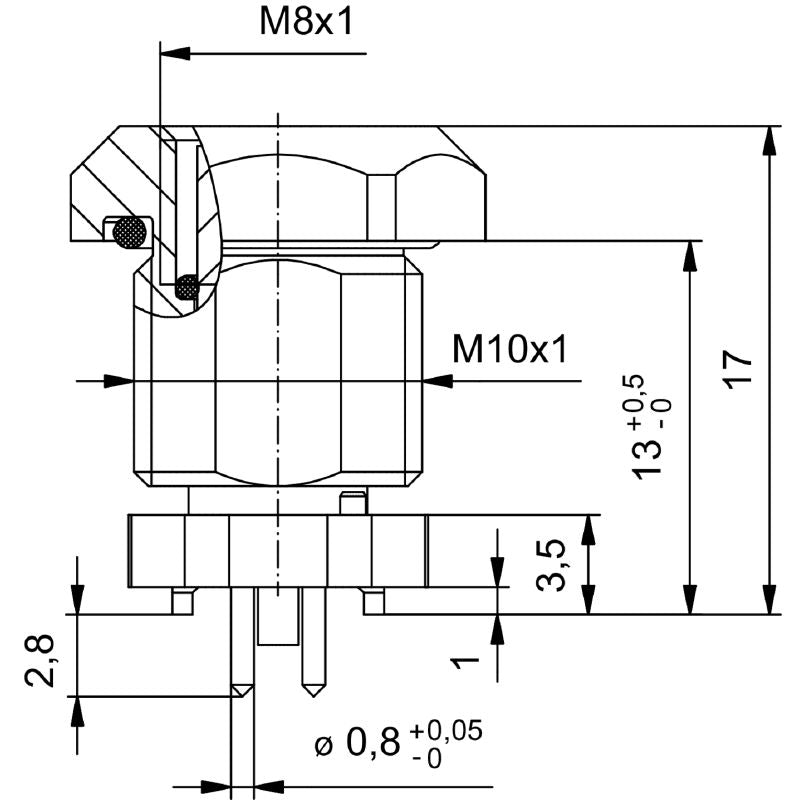

Introducing a versatile connector equipped with a built-in M8 interface and an M10 mounting thread size, featuring a total of 5 poles This connector is ideal for PCB plug-in applications and adheres to RoHS standards for environmentally-friendly use Weighing in at 7392 grams, it boasts a B-coded configuration with a nickel-plated finish for enhanced durability Designed for front mounting, its installation height is 13 mm.

It operates effectively at a nominal voltage of 30 V, with a rated voltage reaching 60 V for 3-pole setups and maintaining 30 V for configurations with 4, 5, and 8 poles All setups have a rated current of 4 A The component is built to endure temperatures ranging from -30 to 80 °C, making it reliable in various conditions Furthermore, it has an IP67 rating, ensuring protection against water immersion and dust infiltration.

This makes it a robust choice for demanding applications.

Features and Benefits:

•Compliance with RoHS regulations.

•B-coded connector configuration.

•Nickel-plated housing surface.

•Front mounting type.

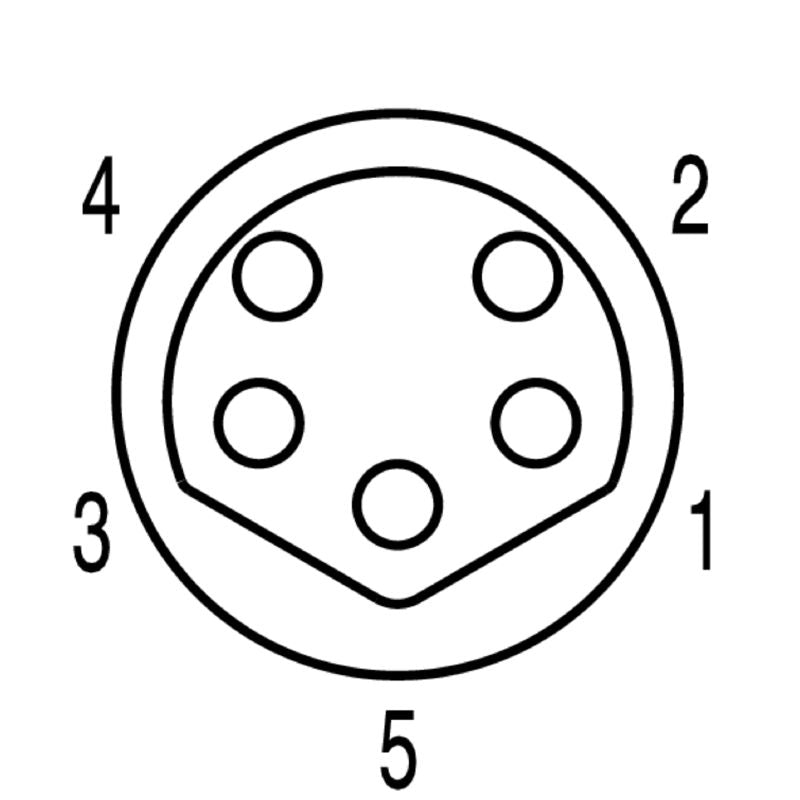

•5-pole configuration.

•Rated current of 4 A.

•Wide temperature range from -30 to 80 °C.

•IP67 protection for dust and water resistance.

•Over 100 plugging cycles.

Specifications:
