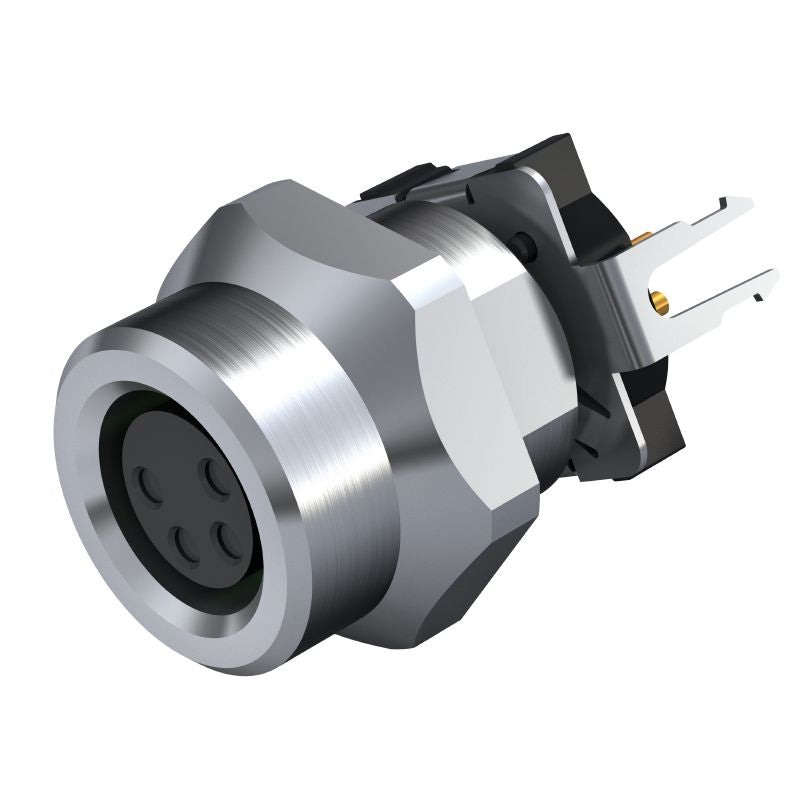

2423550000 - M8 4-Pole PCB Connector with IP67 Rating (Pack of 25)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SAIE-M8B-4S-F9TL, a versatile PCB plug-in connector tailored for front mounting with an integrated M8 plug Crafted with a nickel-plated housing, this connector features four poles for reliable connectivity Its connection thread is M8, while it utilizes an M10 mounting thread for secure installation Adhering to RoHS standards, the device complies with exemption 6c This connector supports a nominal voltage of 30 V and can handle up to 60 V across three poles, with a 30 V rating for configurations with additional poles.

It operates efficiently in temperatures ranging from -30°C to 80°C and boasts an IP67 ingress protection rating, making it suitable for various environments Constructed from a durable copper alloy with a gold contact surface, it provides a tightening torque of 05 Nm for secure connections, while the mounting torque can reach up to 08 Nm.

Features and Benefits:

•Nickel-plated housing surface.

•IP67 protection degree.

•Designed for front mounting.

•Suitable for a variety of industrial applications.

•Compatible with different mounting requirements.

•Can handle multiple plugging cycles (≥ 100).

Specifications:
