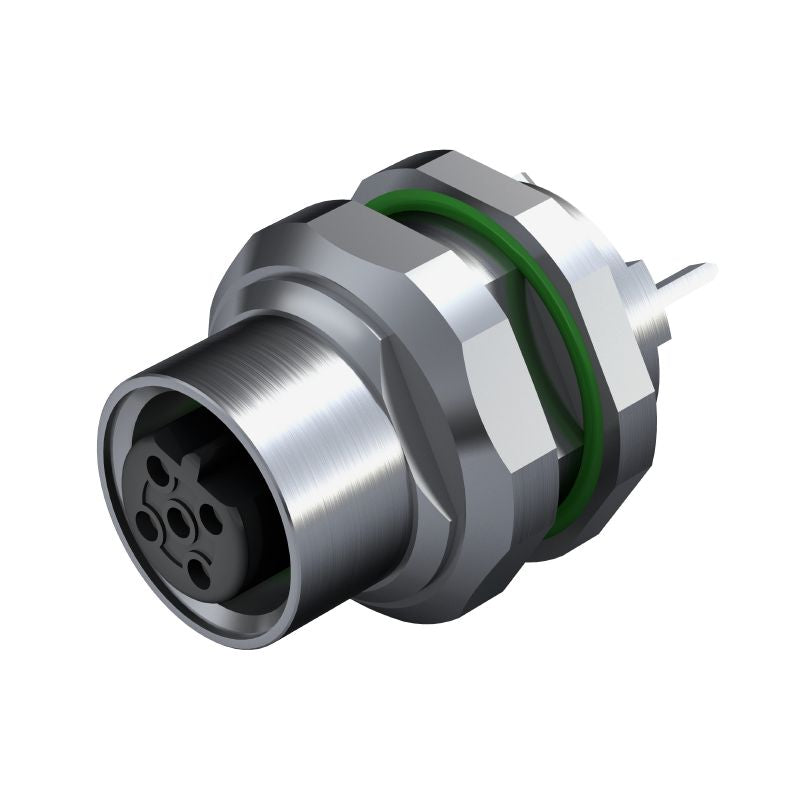

2424100000 - M16 Nickel-Plated 4-Pole Plug with IP67 Protection (Pack of 10)

Description:

Introducing the SAIE-M12S-4DS-H675TL connector, expertly engineered with integrated plugs and a robust M16 mounting thread that supports 4 pole configurations Complying with RoHS regulations, this product holds multiple certifications for quality assurance Crafted from nickel-plated CuZn, the housing offers exceptional durability and resistance against corrosion The D-coded plug design ensures secure connectivity.

It functions effectively in extreme temperatures ranging from -30 to 80 °C and features an impressive protection rating of IP67, making it ideal for challenging environments With a nominal voltage of 250 V and a current capacity of 4 A, this connector guarantees over 100 plugging cycles, ensuring reliability across various applications.

Features and Benefits:

•Nickel-plated housing for enhanced protection.

•M12 pin connection thread.

•Rear panel mounting type.

•Insulation resistance of 100 MΩ.

•Designed for high durability with ≥ 100 plugging cycles.

•IP67 protection degree ensuring dust and water resistance.

Specifications:
