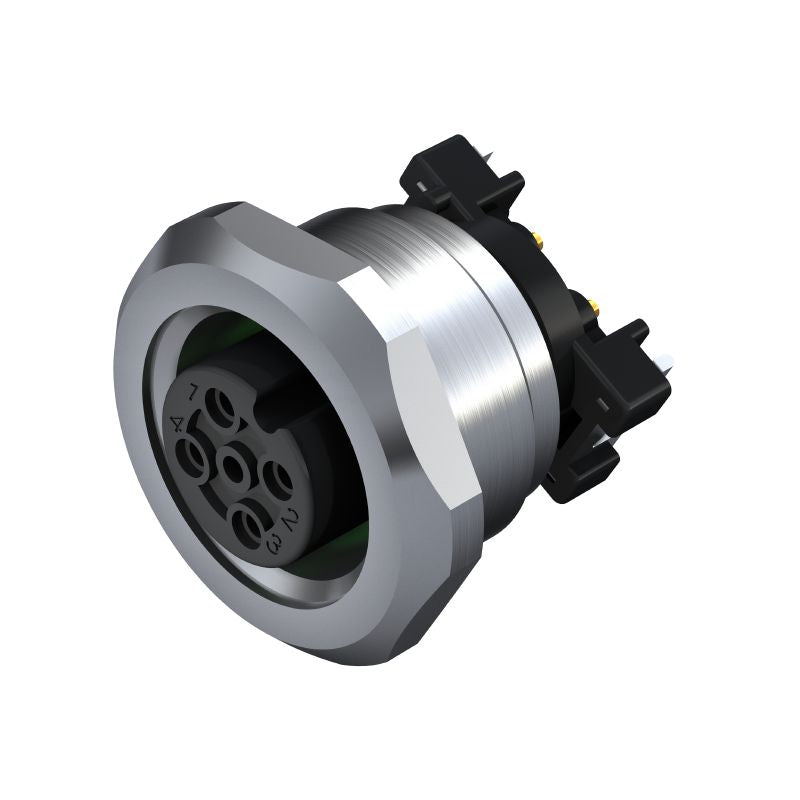

2423020000 - IP67 M12 Socket Connector with 4 Poles, M14 Thread (Pack of 25)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a reliable built-in M12 connector that features a mounting thread diameter of M14 and includes four poles This product meets ROHS compliance standards and is constructed with durable nickel-plated CuZn material, making it ideal for SMD solder connections With a nominal current rating of 4A and a voltage of 250V, this connector is designed to perform in demanding conditions, boasting an IP67 protection rating for excellent resistance to dust and water.

It operates efficiently within a temperature range of -30 to 80 degrees Celsius, and the gold-plated contact surface ensures optimal connectivity.

Features and Benefits:

•RoHS compliant with exemptions.

•Nickel-plated housing for durability.

•Highly resistant to environmental factors due to IP67 protection.

•Rated for at least 100 plugging cycles.

•Low insulation resistance of 100 MΩ.

Specifications:
