2424070000 - M12 5-Pole Nickel-Plated Connector with M16 Mounting Thread (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

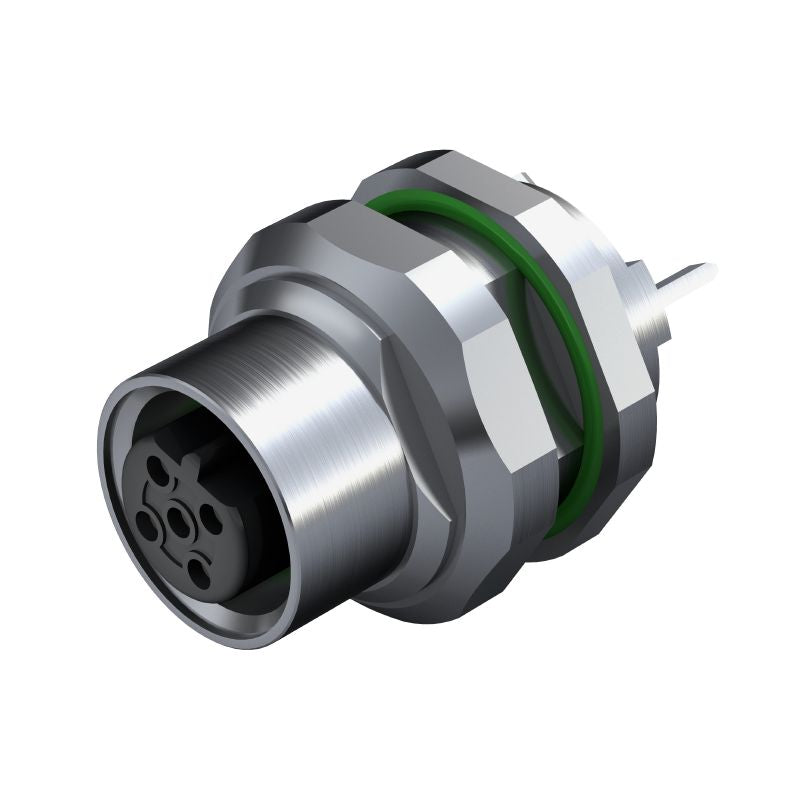

Experience reliable connectivity with this M12 pin connector, equipped with integrated plugs and a mounting thread of M16 Featuring five poles, this connector is compliant with RoHS standards, making it ideal for a wide range of applications Its durable nickel-plated exterior not only adds to its robustness but also enhances longevity Rated for a nominal current of 4 amperes, the housing comprises high-quality CuZn material, ensuring dependable performance across various uses.

Features and Benefits:

•Rear panel mounting type.

•IP67 protection rating.

•Shield connection included.

•Compatible with tight connections up to 1.2 Nm torque.

Specifications:
