2423040000 - M8 Connector with 4 Poles and M10 Thread (Pack of 25)

SKU: SKU: 2423040000 Download PDF

Variant:

2423040000 - M8 Connector with 4 Poles and M10 Thread (Pack of 25)

Now $181.92

~~BEFORE $0.00~~ Now $181.92

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

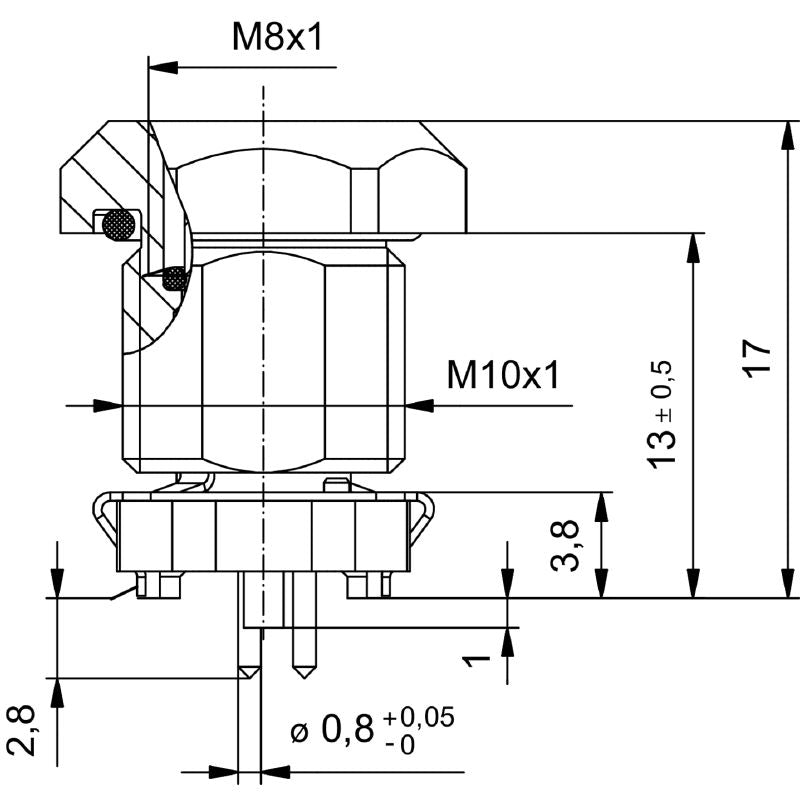

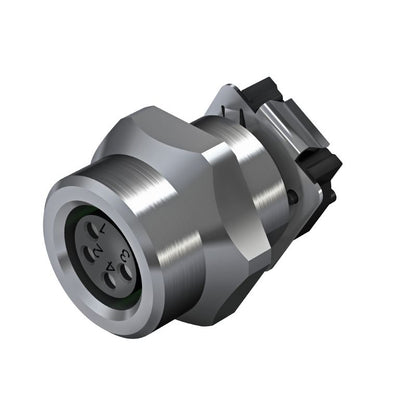

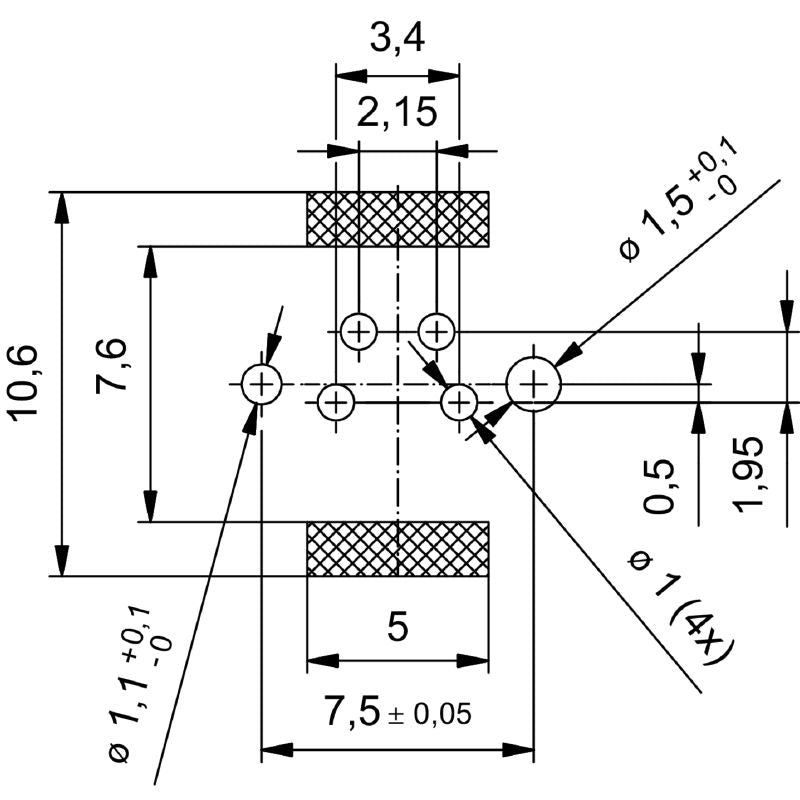

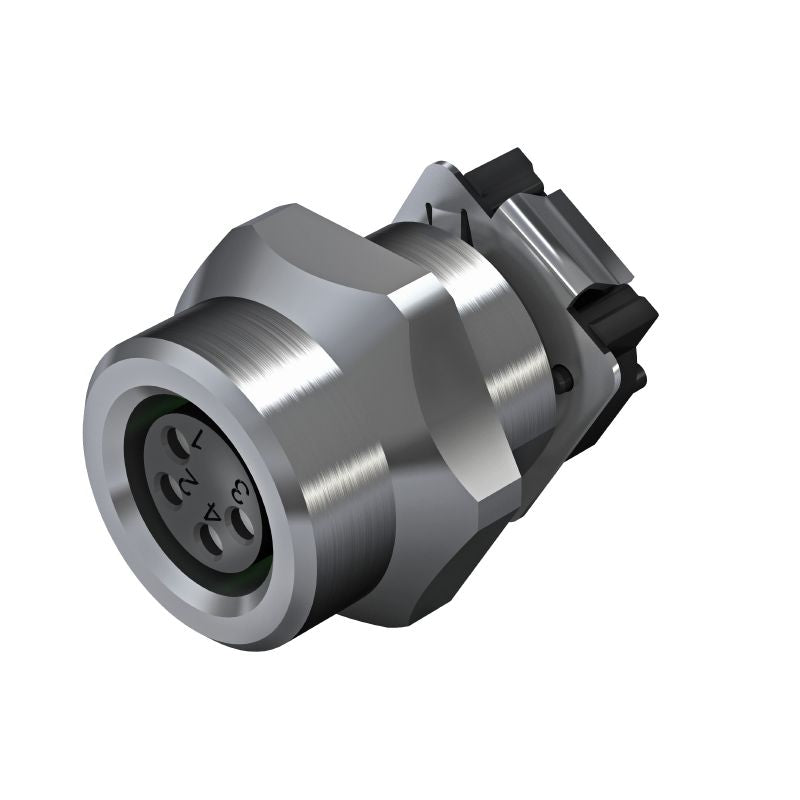

Presenting the M8 connector, expertly crafted with integrated plugs and featuring an M10 mounting thread This connector supports 4 poles, making it ideal for PCB applications Weighing in at just 752 grams, it meets RoHS standards, including a designated exemption Furthermore, it is registered with SCIP to assist in tracking hazardous materials effectively.

Features and Benefits:

•Nickel-plated housing.

•Front mounting type.

•IP67 protection degree.

•Plugging cycles rated at ≥ 100.

Specifications:

Mounting thread	M10

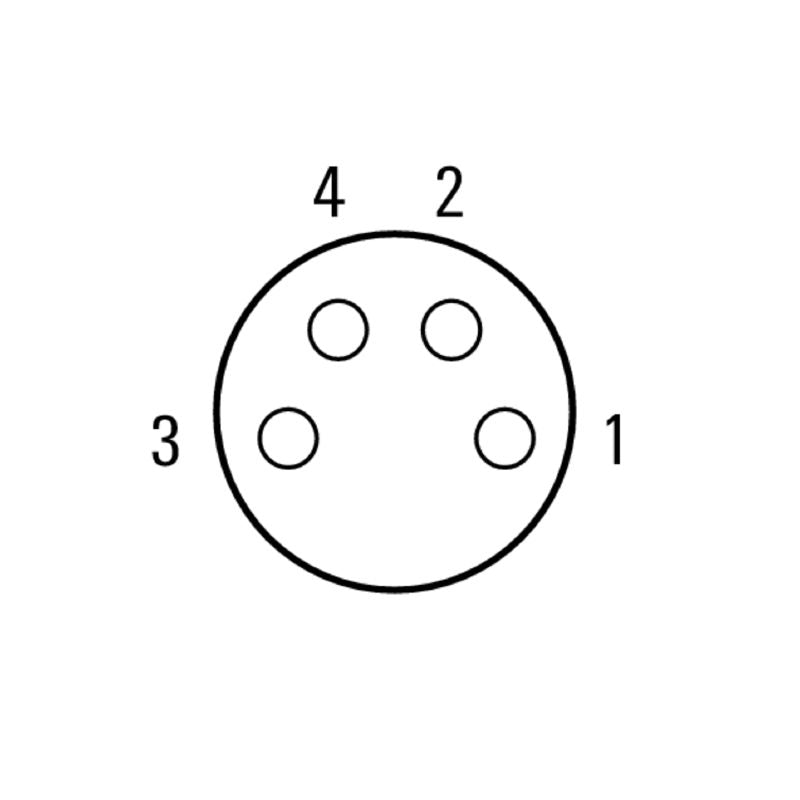

Number of poles	4
Nominal voltage	30 V
Rated voltage	60 V (3-pole) / 30 V (4-, 5- and 8-pole)
Nominal current	4 A
Rated current	4 A (3-, 4- and 5-pole) / 1.5 A (8-pole)
Temperature range	-30…80 °C
Contact surface	Au (Gold)
Housing main material	CuZn
Connection thread	M8
Insulation resistance	100 MΩ
Pollution severity	3 (2 within the sealed area)
Seal material	FPM
Lock nut material	Nickel-plated CuZn
Grouting material	PUR
Tightening torque	M8: 0.5 Nm
Mounting torque max	0.8 Nm
