2423120000 - M12 A-Coded 5-Pole PCB Connector, IP67, Nickel Plated (Pack of 10)

SKU: SKU: 2423120000 Download PDF

Select a Variant:

2423120000 - M12 A-Coded 5-Pole PCB Connector, IP67, Nickel Plated (Pack of 10)

SET THE QTY:

Now $52.58 Web pricing policy

~~BEFORE $0.00~~ Now $52.58 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Experience reliability with this A-coded M12 PCB plug-in connector, designed for front mounting It features five contact points with a durable nickel-plated housing Built to operate at a nominal voltage of 60 V, it can handle rated voltages up to 250 V in four-pole setups and maintains a current rating of 4 A This connector operates efficiently within a temperature range of -30 to 80 degrees Celsius and has an impressive protection rating of IP67, guaranteeing durability against dust and water.

Withstanding over 100 plug cycles, it includes high-quality gold contact surfaces and a housing primarily made of CuZn, ensuring optimal performance and longevity.

Features and Benefits:

•A-coded connector.

•Nickel-plated housing.

•Front mounting type.

•Protection degree IP67.

•High plugging cycle durability (≥ 100).

Specifications:

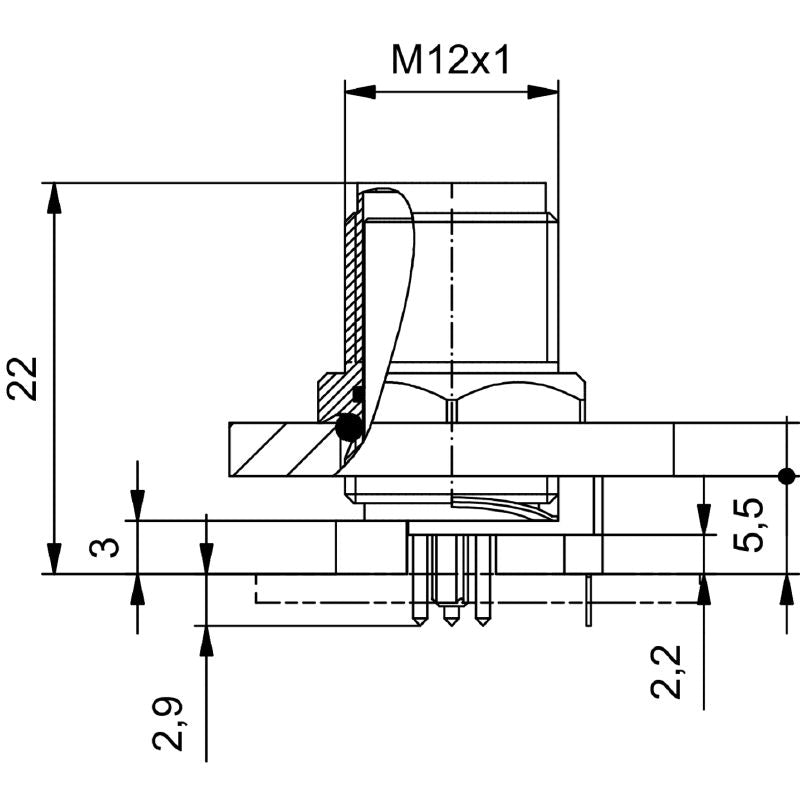

Mounting thread	M12

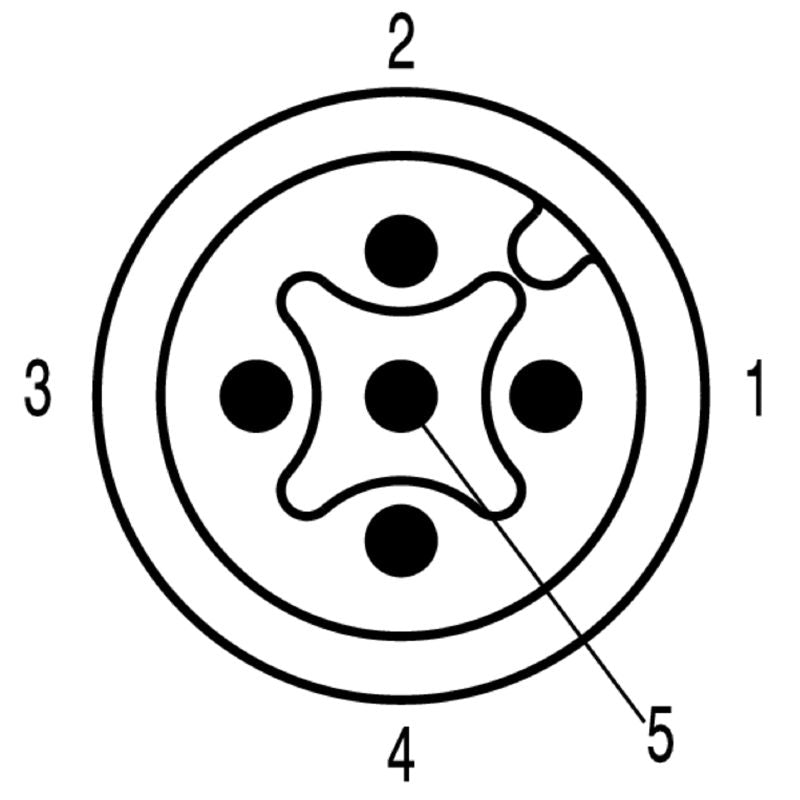

Number of poles	5
Nominal voltage	60 V
Rated voltage	250 V (4-pole) / 60 V (5-pole)
Nominal current	4 A
Rated current	4 A
Temperature range	-30…80 °C
Tightening torque	M12: 0.8 Nm
Mounting torque max	1.2 Nm
Insulation resistance	100 MΩ
Pollution severity	3 (2 within the sealed area)
Contact surface	Au (Gold)
Contact material	Cu-alloy
Housing main material	CuZn, nickel-plated
Plugging cycles	≥ 100
