2423720000 - M12 5-Pole Connector, IP67, 250V, RoHS-Compliant (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

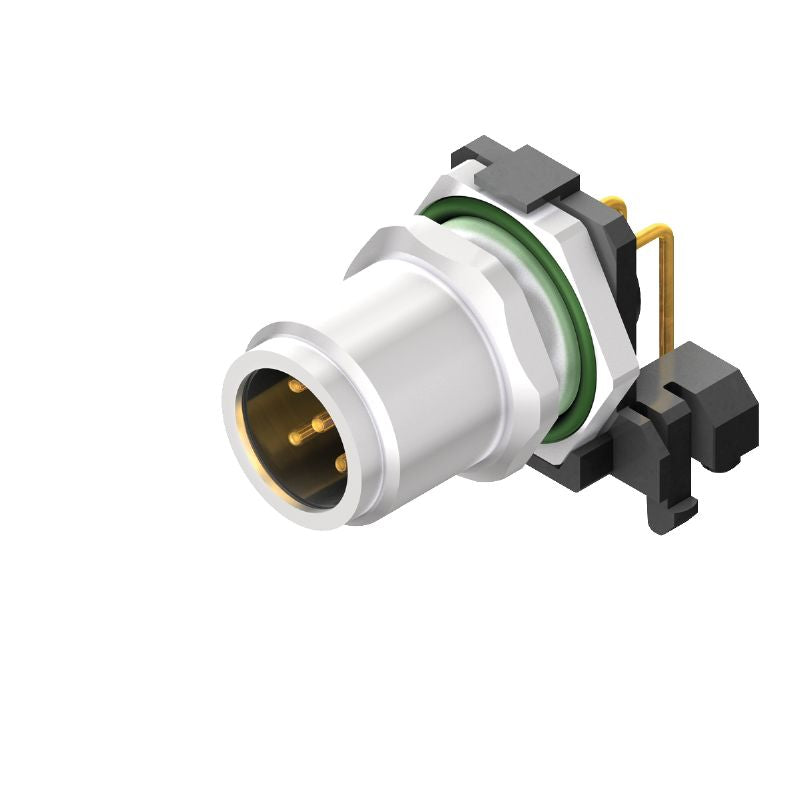

Introducing the SAIEW-M12S-5-HTL connector, expertly crafted to meet M12 standards This connector is equipped with built-in plugs and features a robust M12 mounting thread with a 5-pole configuration Designed with sustainability in mind, it adheres to RoHS regulations, ensuring an environmentally responsible option Key specifications include a maximum rated voltage of 250 V for the 4-pole setup and 60 V for the 5-pole arrangement, along with a nominal current rating of 4 A.

It operates efficiently within a temperature range of -30 °C to 80 °C With an impressive IP67 rating, this connector is both dust-tight and waterproof, making it ideal for various applications The gold-plated contact surface enhances conductivity, while the main housing is constructed from durable nickel-plated copper-zinc alloy, ensuring longevity and reliability.

Features and Benefits:

•A-coded design allows for specific connection configurations.

•Rear panel mounting type for easy installation.

•High integration with plugging cycles rated ≥ 100.

Specifications:
