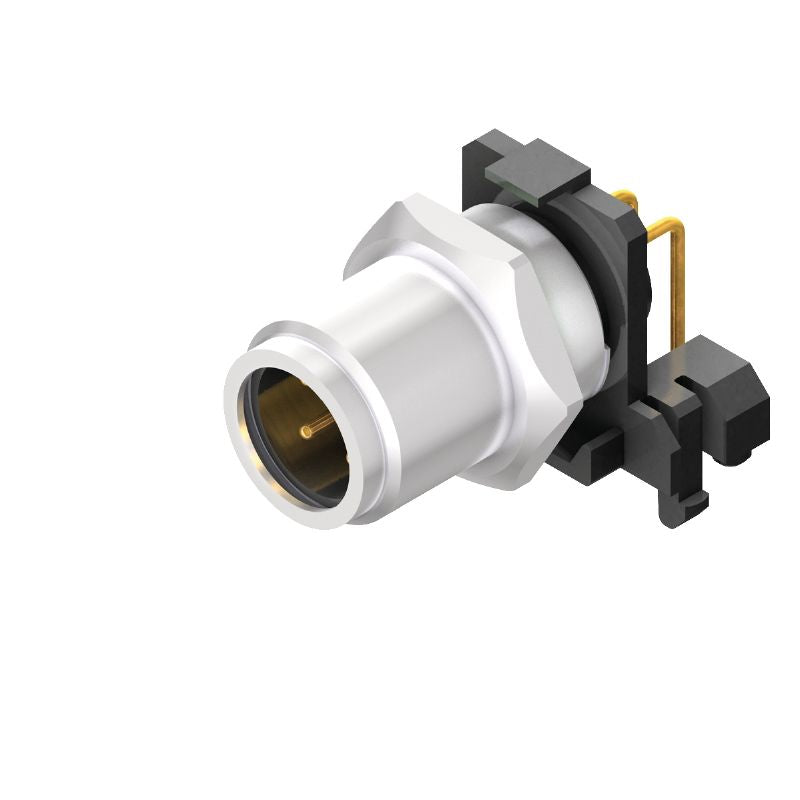

2423840000 - M12 5-Pole Plug Connector, 60V, -30 to 80°C Range (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SAIEW-M12S-5-FTL, a premium built-in plug connector tailored for M12 applications This connector is equipped with a reliable M12 mounting thread and features 5 poles for versatile connectivity It operates at a nominal voltage of 60 V and supports rated voltages of 250 V for 4-pole connectors and 60 V for 5-pole connectors, accommodating a nominal current of 4 A Built to endure, this connector can handle temperatures ranging from -30 to 80 °C, making it suitable for various environments.

Features and Benefits:

•Compliant with RoHS exemption 6c.

•IP67 protection degree for moisture and dust resistance.

•Nickel-plated copper-zinc housing for durability.

•Gold contact surface for improved conductivity.

•Suitable for front mounting applications.

•Rated for ≥ 100 plugging cycles.

Specifications:
