2424260000 - M12 4-Pole PCB Connector, RoHS, IP67, 250V Power (Pack of 10)

SKU: SKU: 2424260000

Select a Variant:

2424260000 - M12 4-Pole PCB Connector, RoHS, IP67, 250V Power (Pack of 10)

SET THE QTY:

Now $73.41 Web pricing policy

~~BEFORE $0.00~~ Now $73.41 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Reviews

Product Information

Description:

Discover the reliability of this M12 PCB plug-in connector, designed with integrated plugs and a mounting thread size of M12, featuring four connection poles This product adheres to RoHS compliance, ensuring it meets environmental standards With its nickel-plated housing, it requires front mounting and is equipped to handle a nominal voltage of 250V and a nominal current of 4A It operates efficiently within a temperature range of -30 to 80 degrees Celsius, and boasts an impressive IP67 protection rating, ensuring robust resistance against environmental factors.

Features and Benefits:

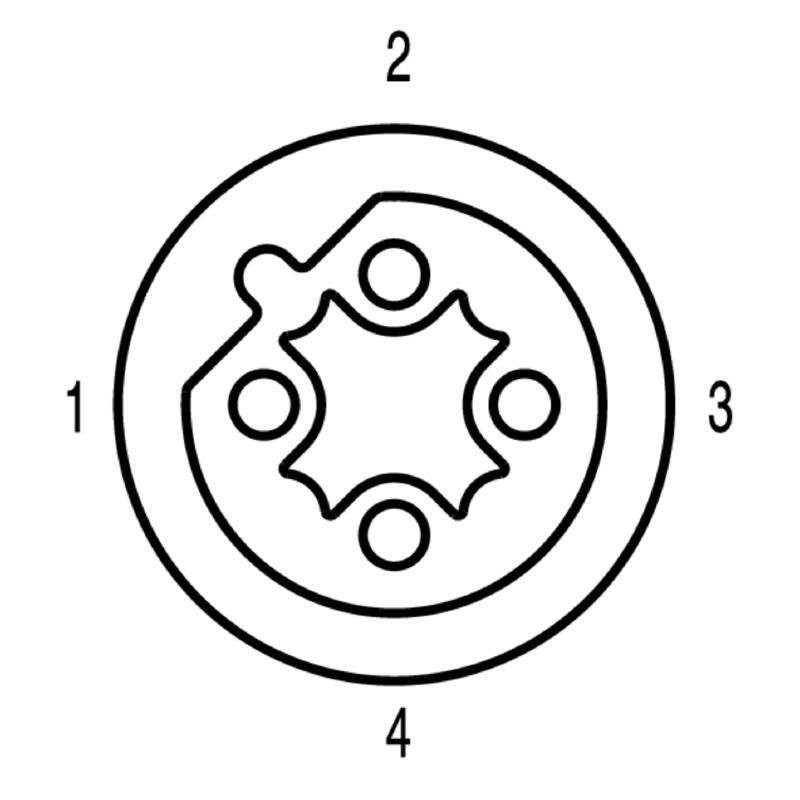

•B-coded for secure connection.

•Nickel-plated housing for durability.

•Supports front mounting application.

•Insulation resistance of 100 MΩ.

•Over 100 plugging cycles guaranteed.

Specifications:

Number of poles	4
Nominal voltage	250 V
Rated voltage	250 V
Nominal current	4 A
Rated current	4 A
Temperature range	-30…80 °C
Protection degree	IP67
Contact surface	Au (Gold)
Housing main material	CuZn

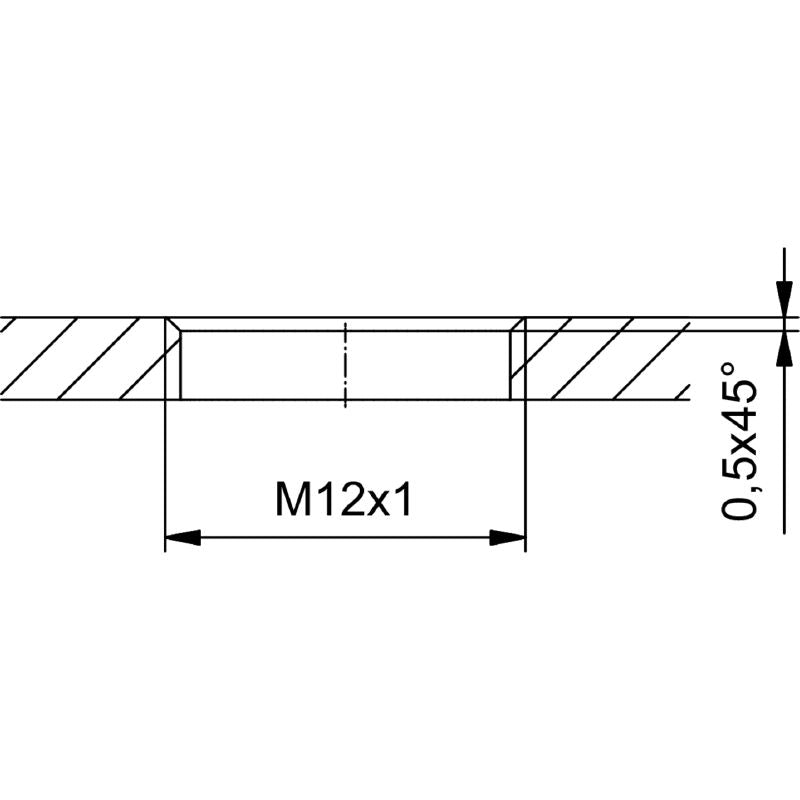

Mounting thread	M12
Tightening torque	M12: 0.8 Nm
Mounting torque max.	1.2 Nm
Insulation resistance	100 MΩ
Plugging cycles	≥ 100
Contact material	Cu-alloy
