2422340000 - M12 Built-In Plug with M16 Mounting, 4 Poles, RoHS Compliant (Pack of 10)

2422340000 - M12 Built-In Plug with M16 Mounting, 4 Poles, RoHS Compliant (Pack of 10)

SKU: 2422340000   Download PDF

Select a Variant:
  • 2422340000 - M12 Built-In Plug with M16 Mounting, 4 Poles, RoHS Compliant (Pack of 10)
Qty:
Now $96.17   Web pricing policy
BEFORE   $0.00 Now $96.17 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

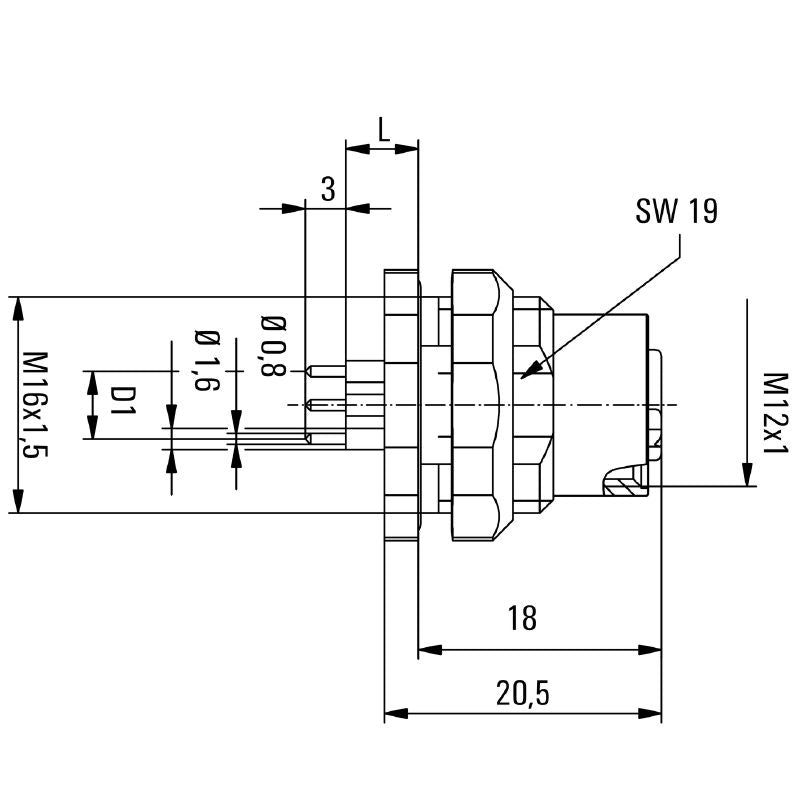

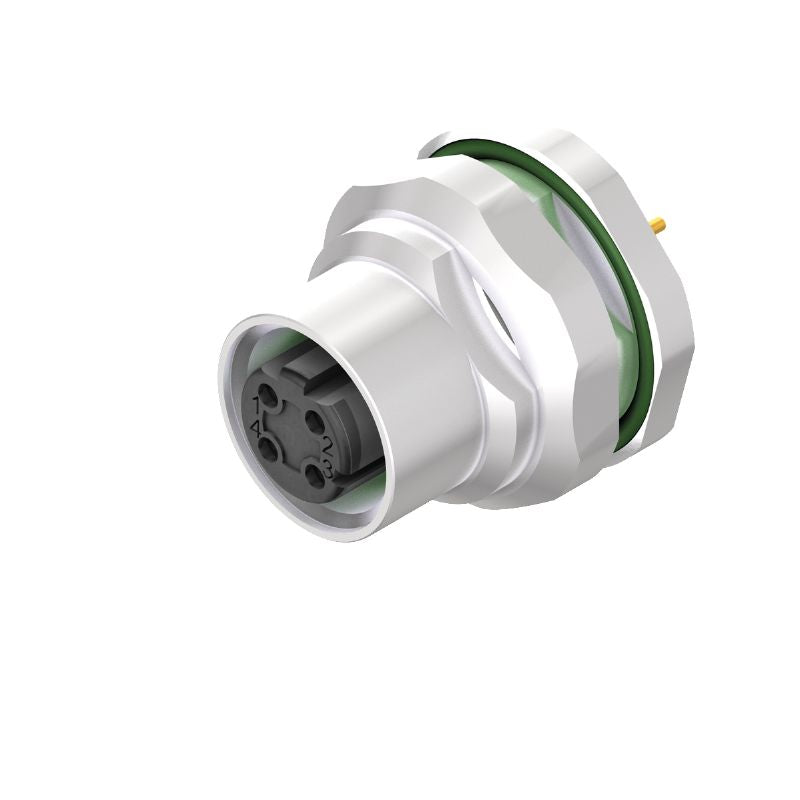

Presenting a robust built-in plug that adheres to M12 specifications, featuring a mounting thread of M 16 x 15 and equipped with 4 poles This connector complies with RoHS regulations while including necessary environmental compliance markings With a lightweight design of just 20 grams, it operates effectively within a temperature range of -30 to 80 degrees Celsius, making it a reliable choice for various applications.

Features and Benefits:

    •Nickel-plated housing surface.

    •Rear panel mounting type.

    •No shield connection.

    •Tightening torque recommended at 0.8 Nm.

    •Insulation resistance rated at 100 MΩ.

    •Protection degree rated at IP67.

    •Plugging cycles rated at ≥ 100.

Specifications:

 Nominal voltage 250 V
 Rated voltage 250 V
 Nominal current 4 A
 Rated current 4 A
 Installation height 12 mm
 Connection thread M12

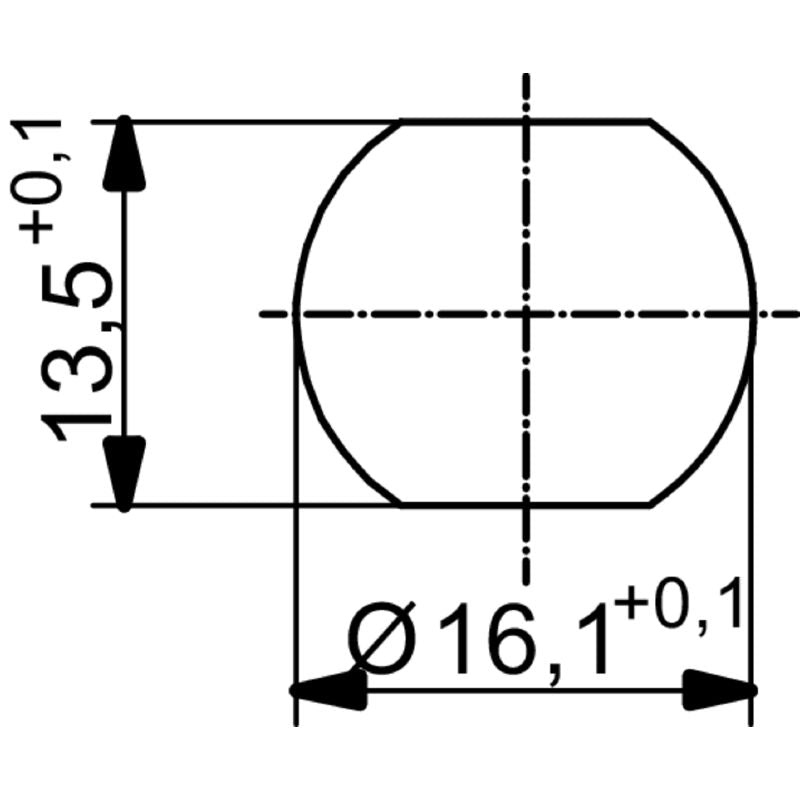

 Mounting thread M 16 x 1.5
 Mounting torque max 1.2 Nm
 Contact material Cu-alloy
 Contact surface Au (Gold)
 Housing main material CuZn nickel-plated
 Lock nut material Nickel-plated CuZn
 Pollution severity 3 (2 within the sealed area)
