2424490000 - M12 Built-In Plug with PG 9 Mounting and 4 Poles (Pack of 10)

2424490000 - M12 Built-In Plug with PG 9 Mounting and 4 Poles (Pack of 10)

SKU: 2424490000   Download PDF

Select a Variant:
  • 2424490000 - M12 Built-In Plug with PG 9 Mounting and 4 Poles (Pack of 10)
Qty:
Now $93.60   Web pricing policy
BEFORE   $0.00 Now $93.60 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

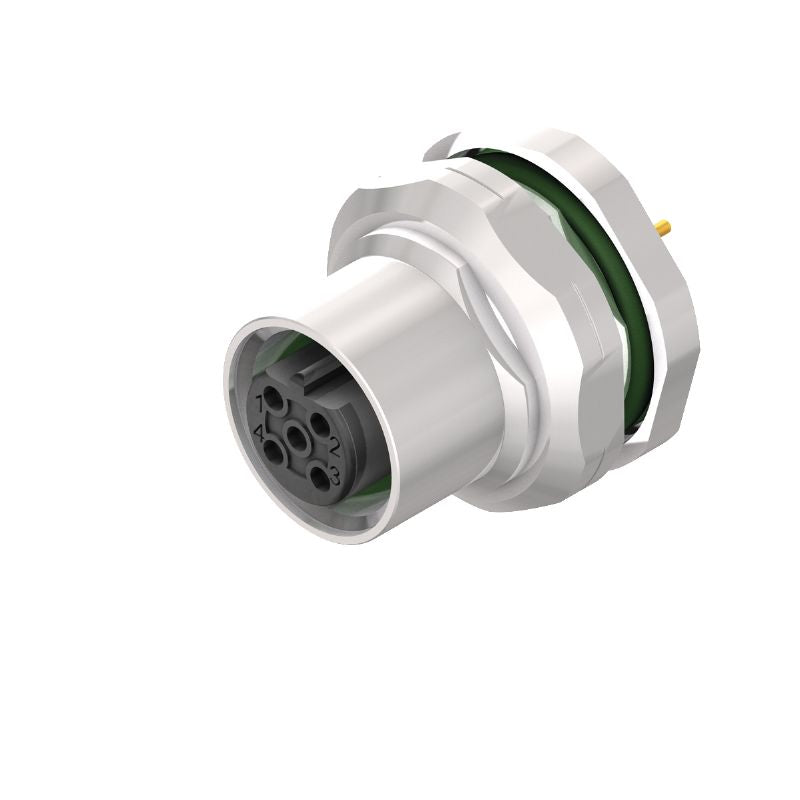

Presenting a robust built-in M12 plug, designed with a PG 9 mounting thread and equipped with 4 poles This product is fully compliant with RoHS standards and has obtained multiple environmental compliance certifications, ensuring its eco-friendliness and reliability in various applications.

Features and Benefits:

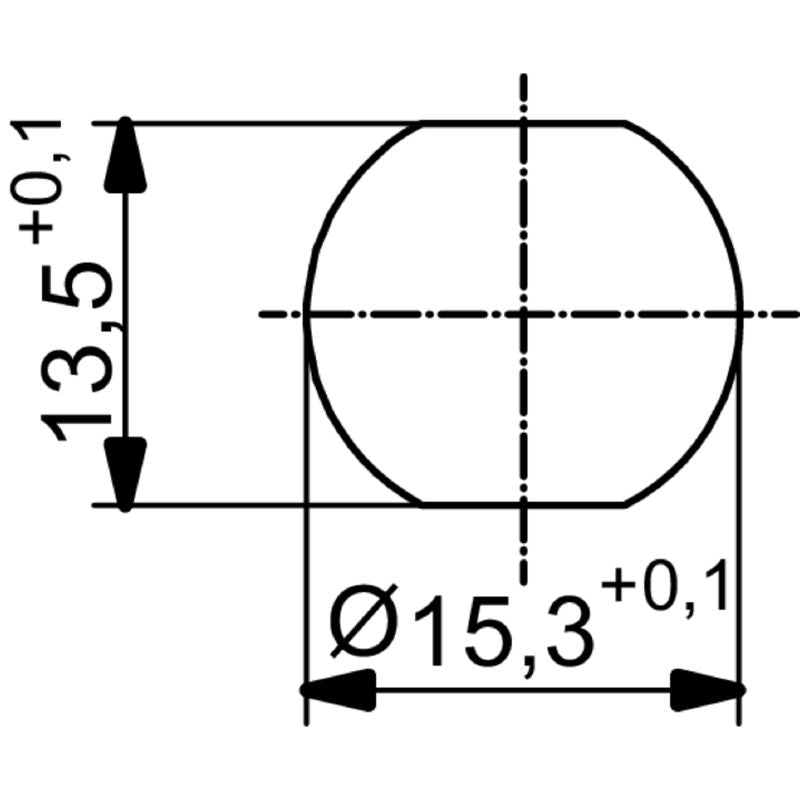

    •Rear panel mounting type.

    •Nickel-plated housing surface.

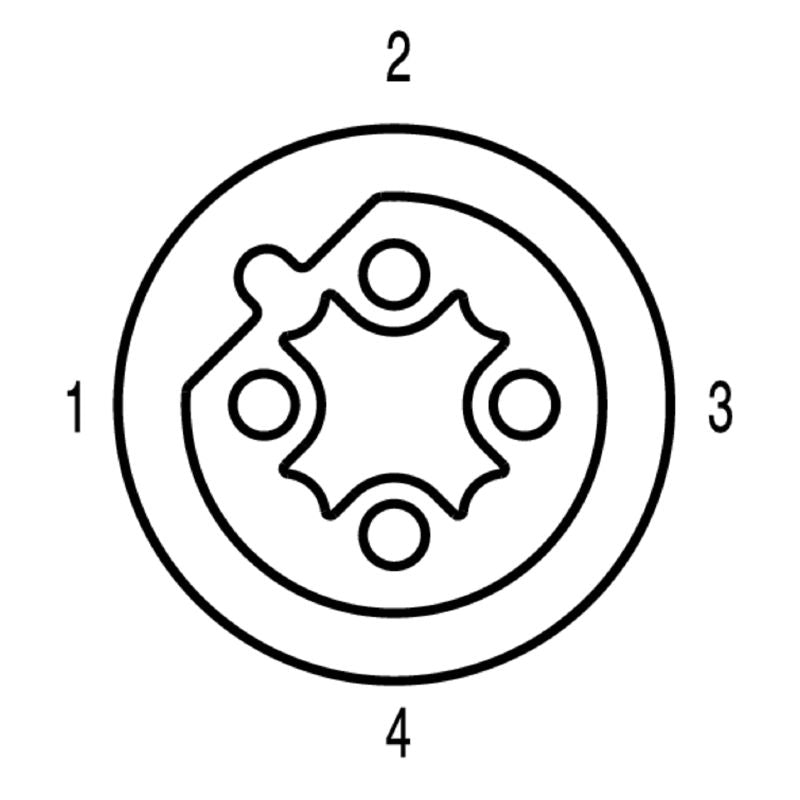

    •B-coded for easy identification.

    •Shield connection is present.

    •Suitable for temperature ranges between -30 and 80 degrees Celsius.

    •Protection degree is rated at IP67.

    •High insulation resistance at 100 MΩ.

    •Suitable for a high number of plugging cycles (≥ 100).

Specifications:

 Nominal voltage 250 V
 Rated voltage 250 V
 Nominal current 4 A
 Rated current 4 A

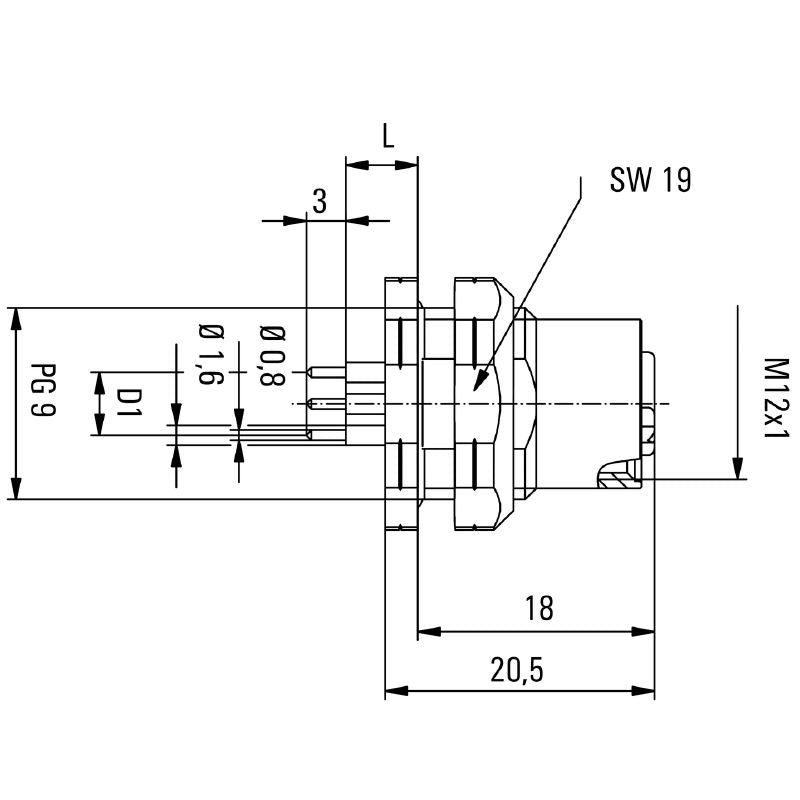

 Installation height 5.5 mm
 Tightening torque M12: 0.8 Nm
 Mounting torque max 1.2 Nm
 Connection thread M12
 Contact surface Au (Gold)
 Contact material Cu-alloy
 Lock nut material Nickel-plated CuZn
 Material of the flange-mounted housing Nickel-plated CuZn
 Pollution severity 3 (2 within the sealed area)
 Plugging cycles ≥ 100
