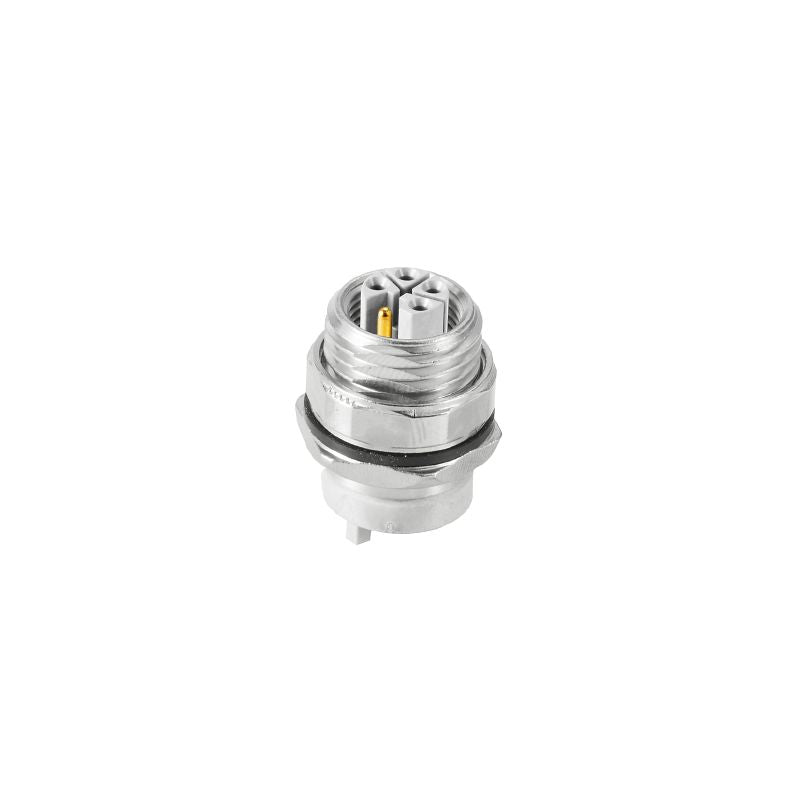

2530910000 - M12 Built-in Plug with M16 Mounting Thread and 5 Poles

2530910000 - M12 Built-in Plug with M16 Mounting Thread and 5 Poles

SKU: 2530910000 Download PDF

Variant:
  • 2530910000 - M12 Built-in Plug with M16 Mounting Thread and 5 Poles
Now $21.90
BEFORE   $0.00 Now $21.90
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing this built-in plug, expertly crafted in an M12 configuration It features an M16 x 15 mounting thread and supports a 5-pole setup Detailed cable and strand length specifications are included with your purchase for optimal use Perfect for a variety of applications, this plug is a reliable solution for your connectivity needs.

Features and Benefits:

    •L-coded for easy identification.

    •Protection degree of IP67 when securely fastened.

    •Constructed with gold over nickel contact surface.

    •Utilizes PA as the primary material for housing.

    •Designed for backpanel mounting.

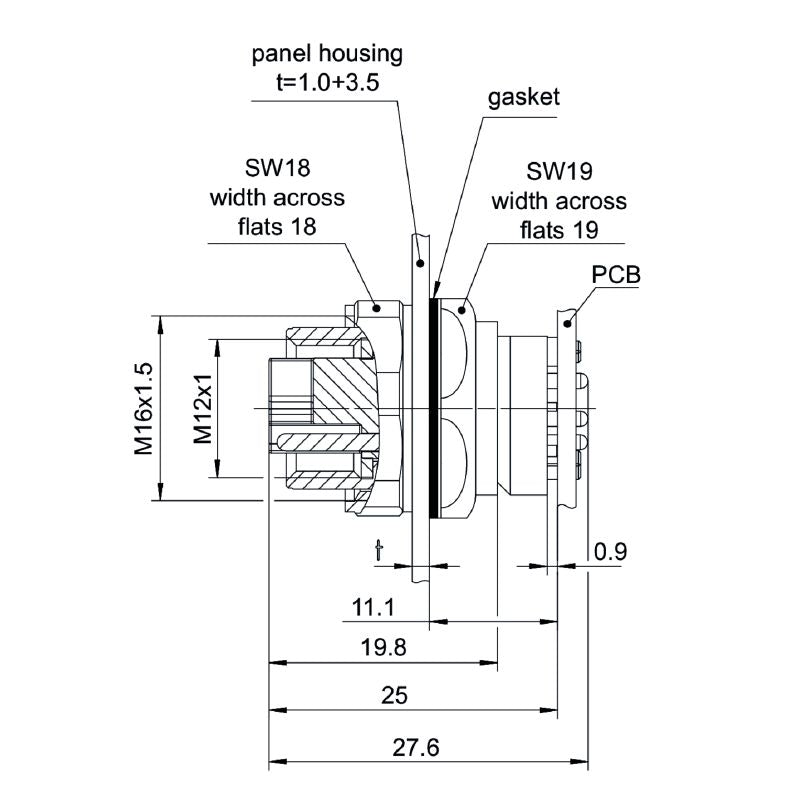

Specifications:

 Number of poles 5
 Nominal voltage 63 V
 Nominal current 16 A
 Tightening torque M12: 0.8 - 1.2 Nm
 Mounting thread M16 x 1.5
 Contact material Cu-alloy
 Housing main material PA
 Coding L-coded
 Contact surface Gold over nickel
 Type of mounting Backpanel mouting
 Installation height 11 mm
