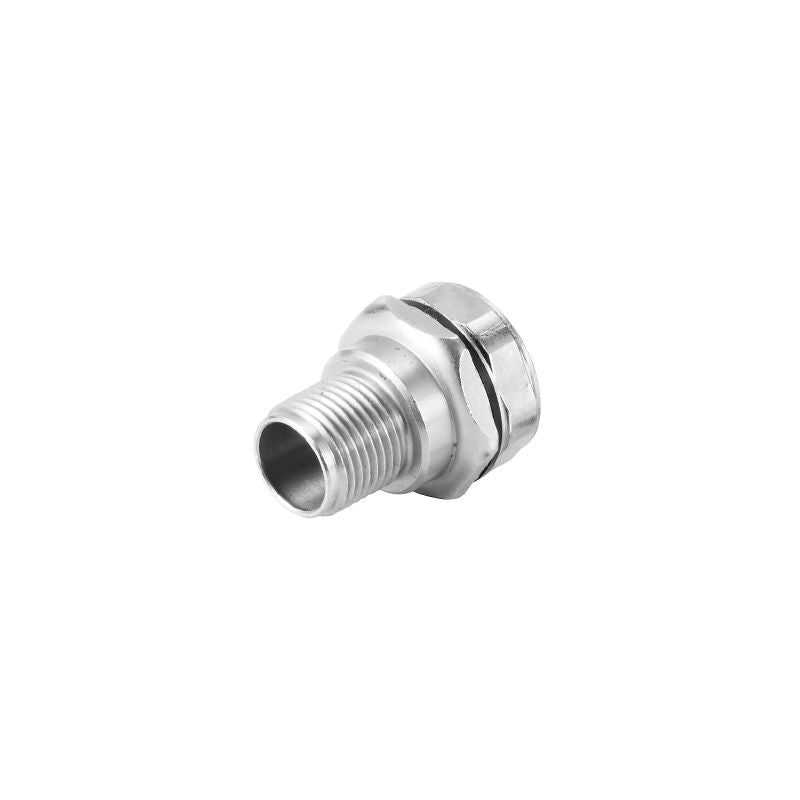

2530870000 - M12 Plug with M16 Thread, IP67, 5 Poles, Zinc Diecast (Pack of 60)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a versatile built-in M12 plug featuring an M16 x 15 mounting thread and a configuration of 5 poles This environmentally compliant component adheres to ROHS standards and has a compact installation height of 11 mm Crafted from durable zinc diecast material, it is designed to handle a nominal voltage of 63 V and a nominal current of 16 A With an impressive IP67 rating when appropriately installed, this plug also boasts a gold over nickel contact surface for optimal performance and longevity, supporting up to 500 plugging cycles.

Perfect for various applications that require reliability and quality.

Features and Benefits:

•Manufactured with a robust housing material of zinc diecast.

•Features a protection degree of IP67 when screwed in.

•Includes a L-coded PCB plug-in connector.

•Designed for backpanel mounting.

•Compatible with a connector thread of M12.

Specifications:
