2423480000 - Durable IP67 M12 Plug Connector with 5 Poles (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

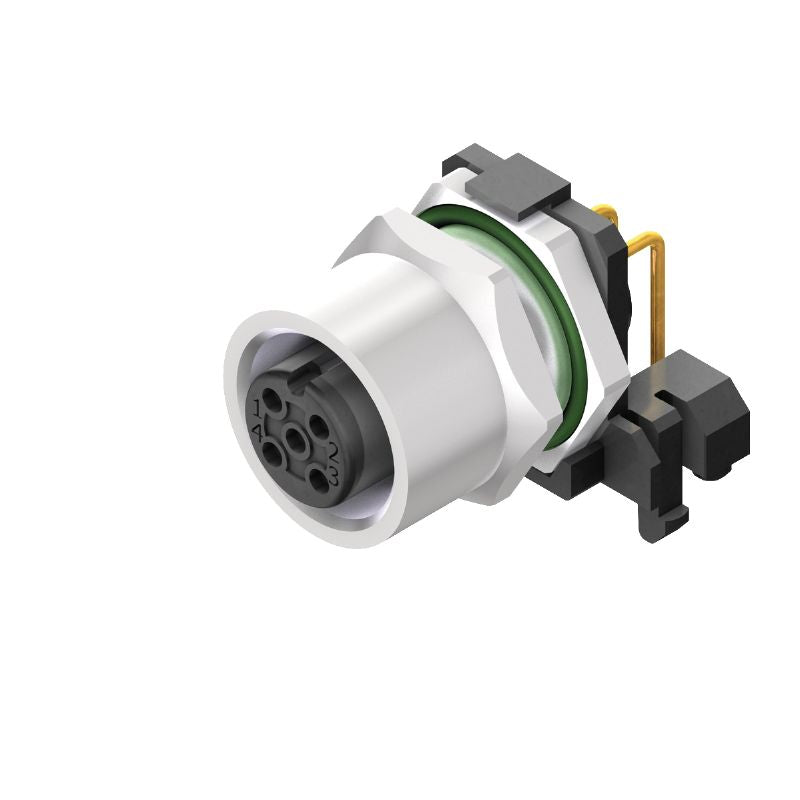

Introducing the M12 connector, designed with integrated connections featuring an M12 mounting thread and 5 poles This connector operates effectively at a nominal voltage of 60 V, with a rated voltage of 250 V for the 4-pole configuration and 60 V for the 5-pole configuration It can handle a nominal current of 4 A and is built to function within a temperature spectrum of -30 to 80 °C With an impressive protection rating of IP67, it is well-suited for challenging environmental conditions.

Crafted from premium materials, including gold-plated contacts and nickel-plated copper alloys, it ensures long-lasting performance Additionally, it offers insulation resistance of 100 MΩ and is engineered to endure over 100 plugging cycles, making it a reliable choice for various applications.

Features and Benefits:

•Built-in plugs for quick assembly.

•Suitable for rear panel mounting.

•IP67 rated for dust and water protection.

•Durable with gold contact surfaces.

•Temperature resistant from -30 to 80 °C.

•Nickel-plated housing for corrosion resistance.

Specifications:
