2424290000 - M12 4-Pole Plug-in Connector with IP67 Protection (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

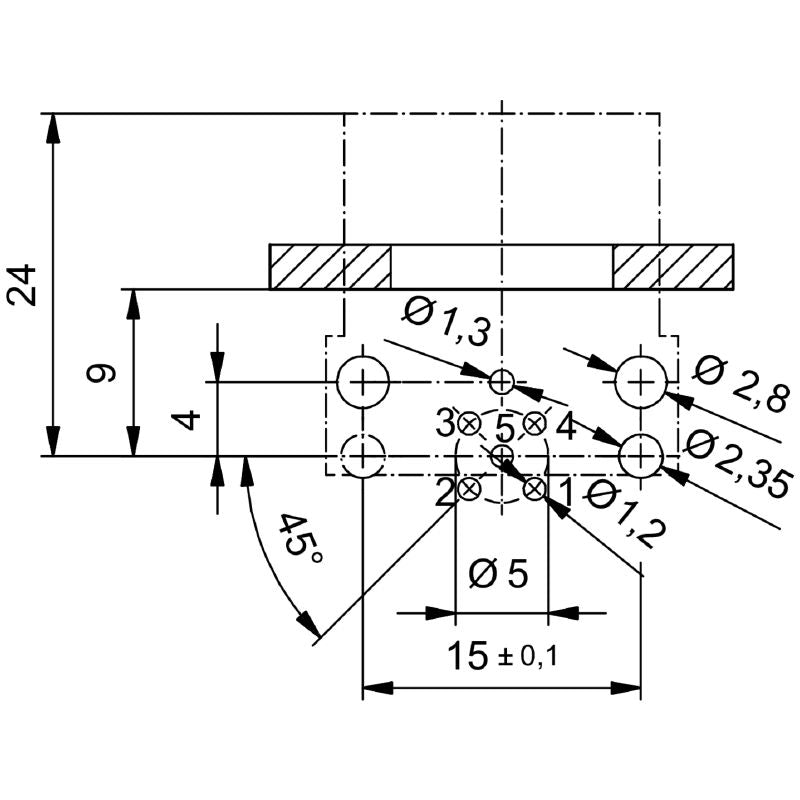

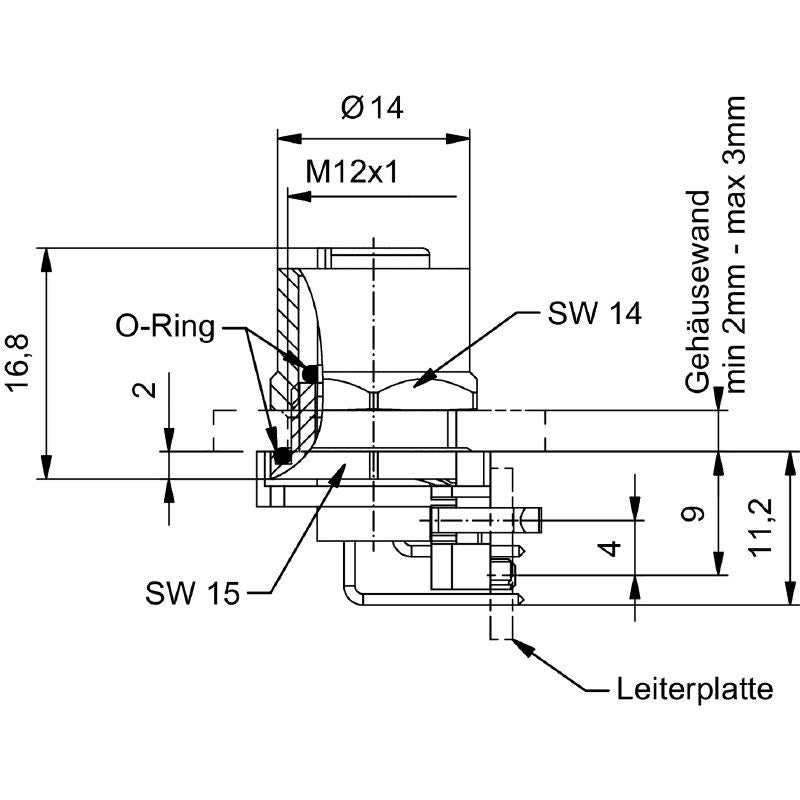

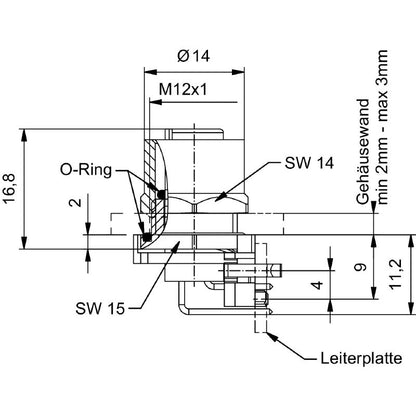

Introducing the SAIEW-M12BB-4-HTL, an advanced PCB plug-in connector that integrates built-in plugs with a sturdy M12 mounting thread This connector is equipped with 4 conductive poles and features a durable nickel-plated finish for increased longevity Designed to meet RoHS standards, it guarantees environmental compliance With a voltage rating of 250V and a nominal current capacity of 4A, this connector is versatile for a wide range of applications.

It operates efficiently within a temperature range of -30°C to 80°C and boasts an IP67 rating, providing exceptional protection against dust and moisture ingress.

Features and Benefits:

•Nickel-plated housing for corrosion resistance.

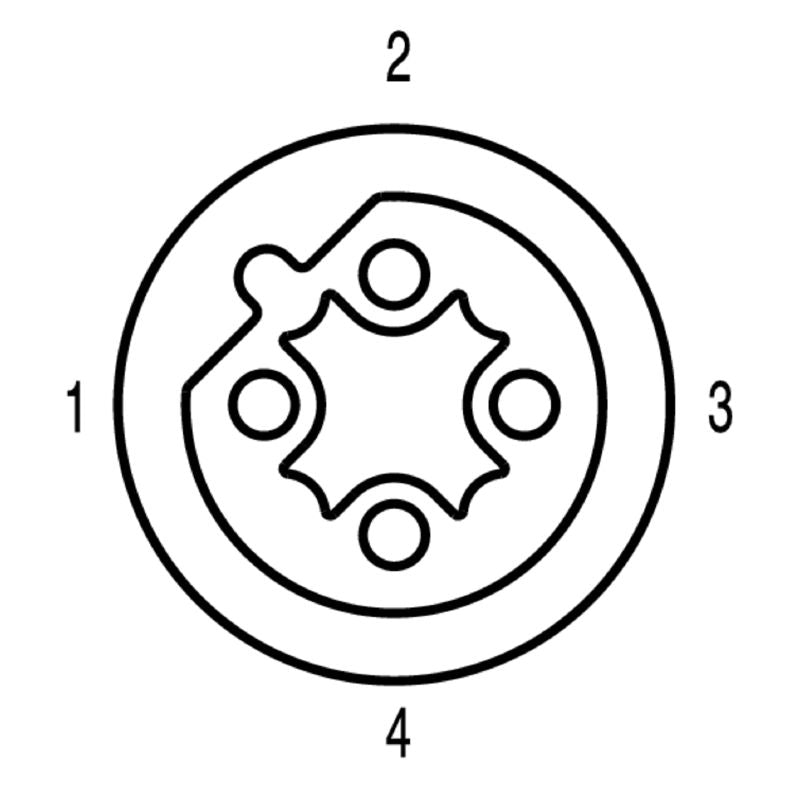

•B-coded for secure connections.

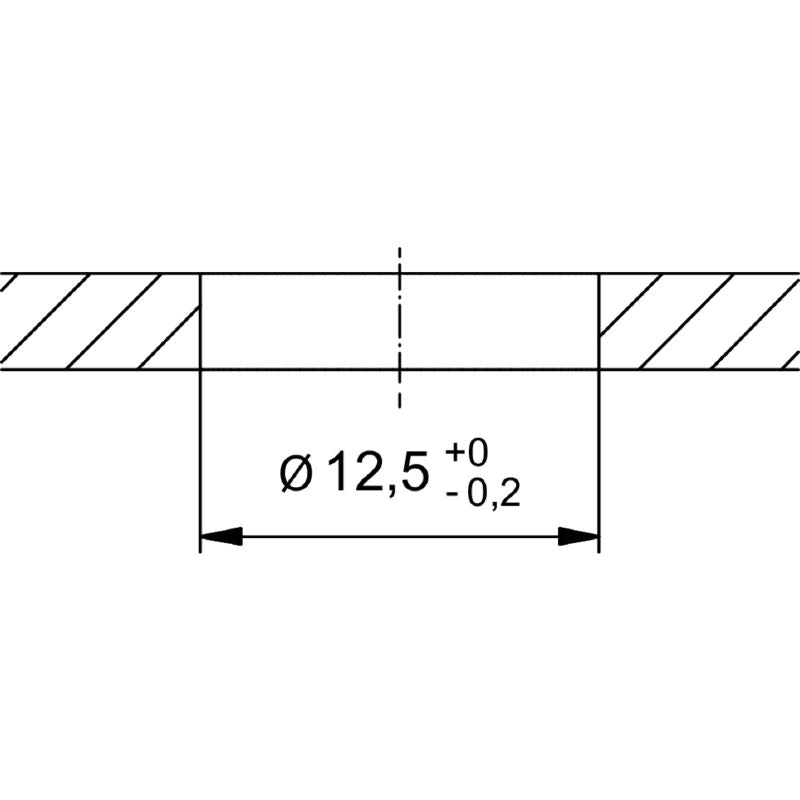

•Rear panel mounting type for easy installation.

•Shield connection included for added functionality.

•High insulation resistance of 100 MΩ.

•Rated for more than 100 plugging cycles.

Specifications:
