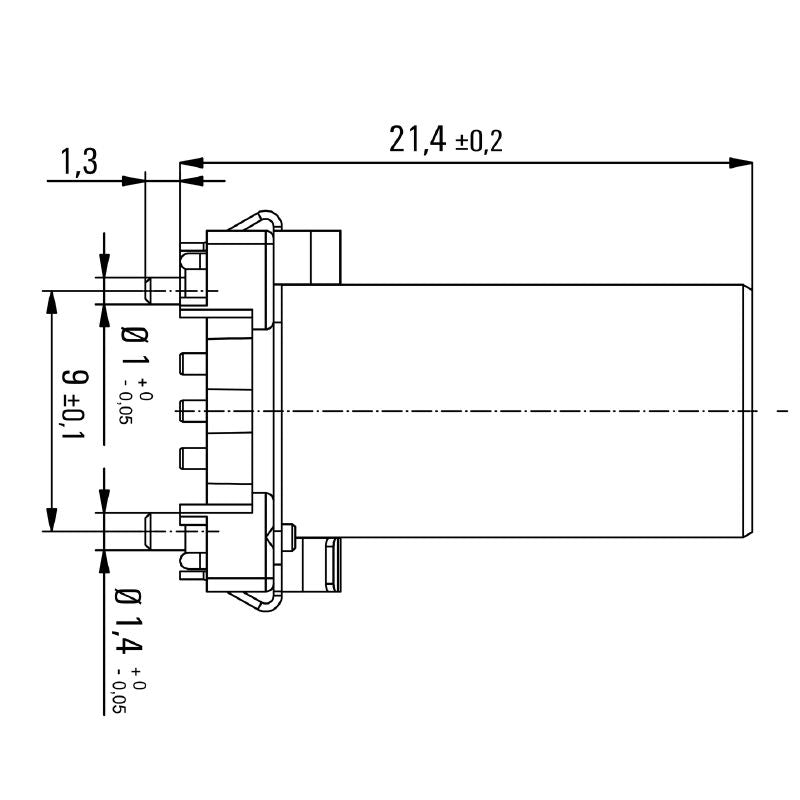

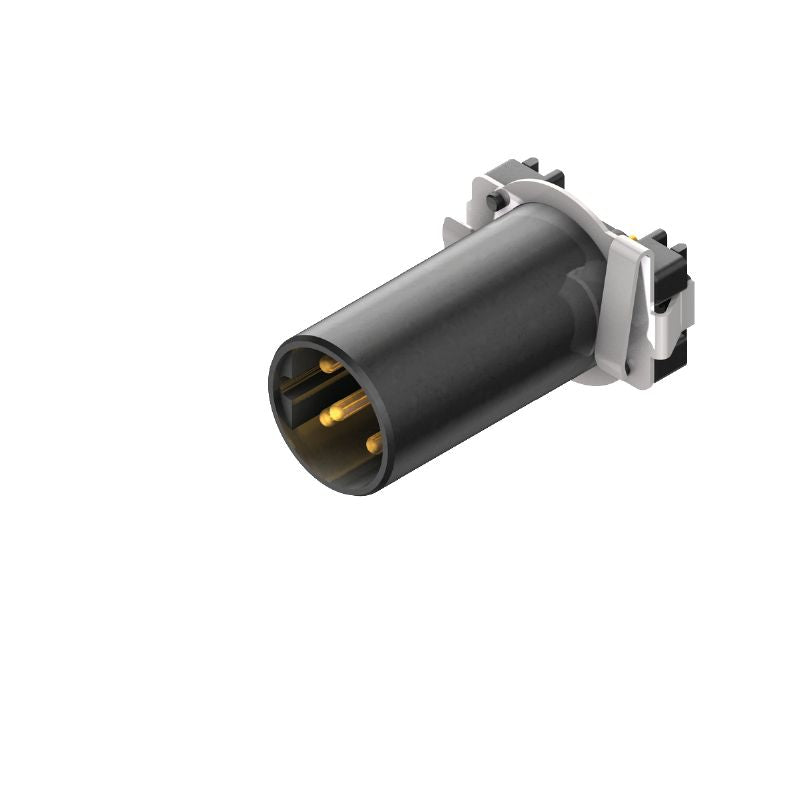

2422780000 - M12 5-Pole Plug Connector, IP67, Gold Contacts (Pack of 25)

SKU: SKU: 2422780000 Download PDF

Select a Variant:

2422780000 - M12 5-Pole Plug Connector, IP67, Gold Contacts (Pack of 25)

SET THE QTY:

Now $103.92 Web pricing policy

~~BEFORE $0.00~~ Now $103.92 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing a premium built-in plug connector, perfectly crafted for M12 applications with a 5-pole configuration This connector boasts a nominal voltage rating of 60 volts and is capable of managing a rated voltage of up to 250V in 4-pole setups, as well as 60V for 5-pole configurations Engineered to perform in extreme temperatures ranging from -25°C to 95°C, it features a gold-plated contact surface for optimal conductivity.

The M12 connection thread ensures a secure fit, and with an IP67 rating, this connector offers excellent resistance against dust and moisture, making it an ideal choice for a variety of settings.

Features and Benefits:

•5-pole configuration.

•IP67 protection degree.

•Able to withstand temperatures from -25 to 95 degrees Celsius.

•M12 connection thread.

•Gold-plated contact surface.

•Robust construction for at least 100 plugging cycles.

•Suitable for various industrial applications.

Specifications:

Technology	PCB plug-in connector
Coding	B-coded
Nominal current	4 A
Rated current	4 A
Shield connection	Yes
Tightening torque	M12: 0.8 Nm
Contact material	Cu-alloy
Lock nut material	Nickel-plated CuZn
Material of the flange-mounted housing	Nickel-plated CuZn
UL 94 flammability rating	V-0
Plugging cycles	≥ 100
Pollution severity	3 (2 within the sealed area)
Housing main material	LCP
