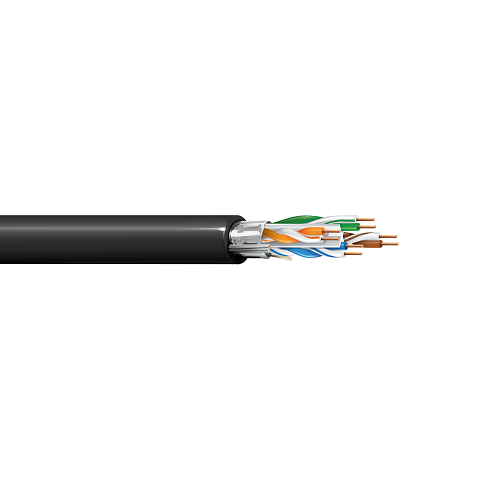

Belden 2142A 23 AWG 4 Pair Solid Bare Copper Category 6A Premise 300V Horizontal Cable

Description:-

Category 6A Premise Horizontal Cable (625 MHz), Indoor/Outdoor, 4 Pair, 23 AWG Solid Bare Copper Conductors, F/UTP - Foil Shielded, Riser-CMR/CMX Outdoor, UV Resistant PVC Jacket

Insulation:-

• Material: PO - Polyolefin

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 26 AWG (7x34) TC - Tinned Copper

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.300 in (7.62 mm)
• Overall Cable Diameter (Nominal): 0.300 in (7.62 mm)
• Separator: Center Member (Patented EquiSpline)

Standards:-

• Operating Temperature Range: -40°C To +75°C
• UL Voltage Rating: 300 V (CMR), 300 V (CMX-Outdoor)

Applications:-

• Indoor/Outdoor, Premise Horizontal Cable, Ethernet up to 10GBASE-T, Wi-Fi 6, Wi-Fi 5, PoE++, PoE+, PoE, Noisy Environments, HDBaseT

Specifications:-

• Size (AWG): 23
• No. of Pairs: 4
• Stranding: Solid
• Data Category: Category 6A
• Conductor Material: BC - Bare Copper
• Part Number: 2142A
